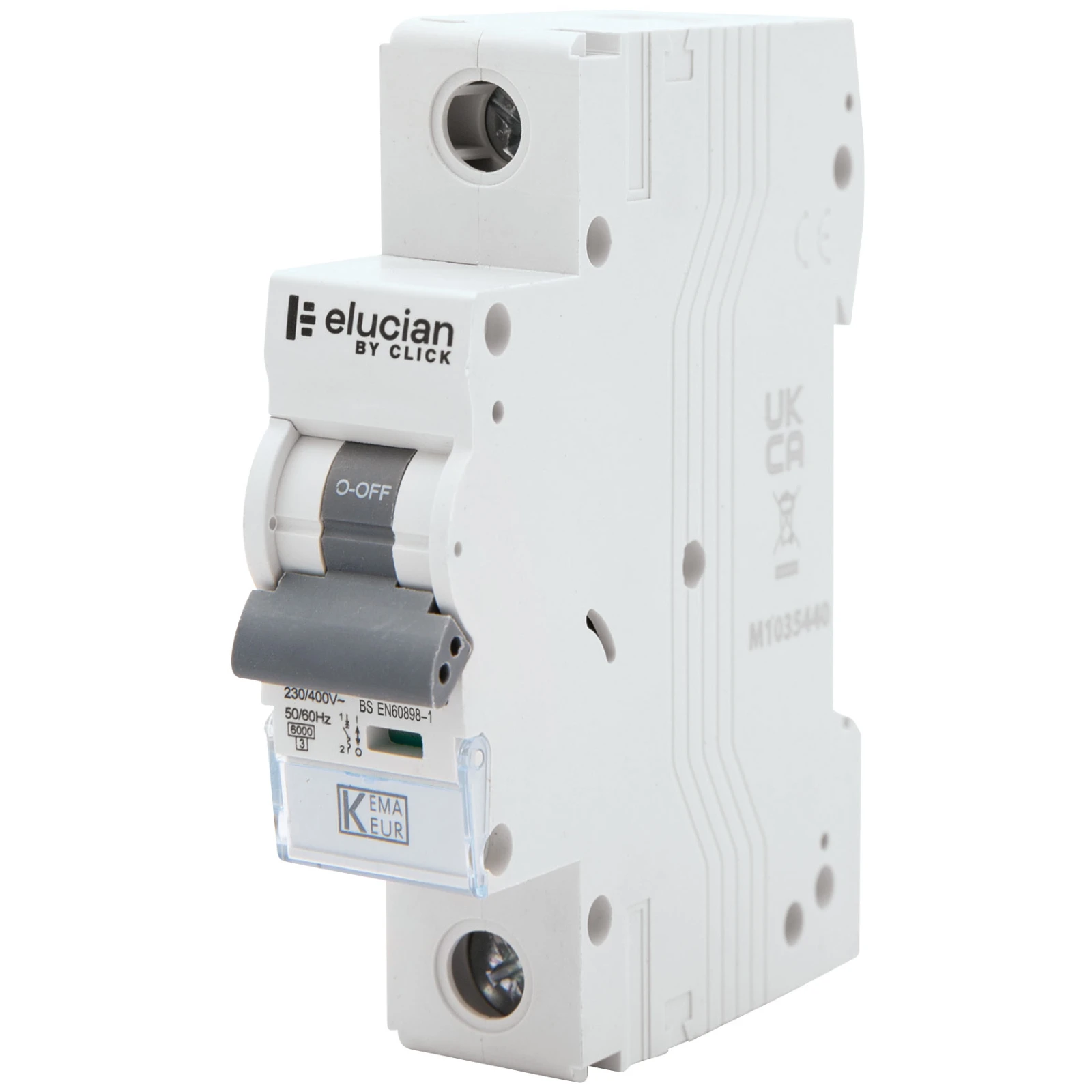

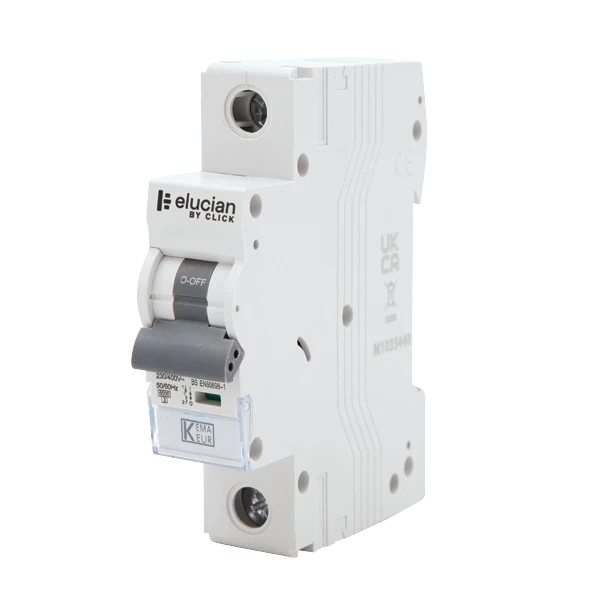

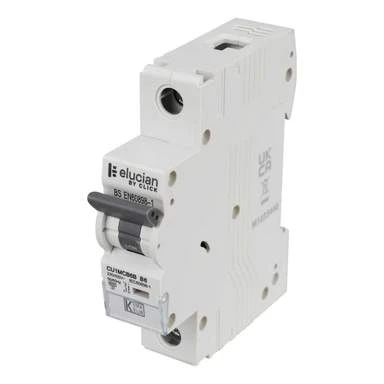

Click 6A Single Pole 6kA B Curve MCB
£3.43 Incl. VAT
The Elucian Protective Devices simply click onto the DIN Rail and can be secured with this locking mechanism. This means work can be carried out quicker and without dealing with tight spaces.Lockout devices (available at Unicrimp) are designed to attach to the moving part of the protective device, usually a switch toggle (rocker switch) which moves from the on to off position. This ensures the switch cannot be switched back on while work is being carried out · · · Clip in Devices · · Lockable switch [with compatible kit] · · Thermal / Magnetic trip release · · Large terminal capacity · · Large Terminal Capacity · · Lockable switch (with compatible kit)
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 70 mm Number of poles (total) 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 6 kA Width in number of modular spacings 1 Rated insulation voltage Ui 500 V Rated voltage 230 V Rated current 6 A Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No Explosion-proof No · Technical Data Sheet – Click to Download
