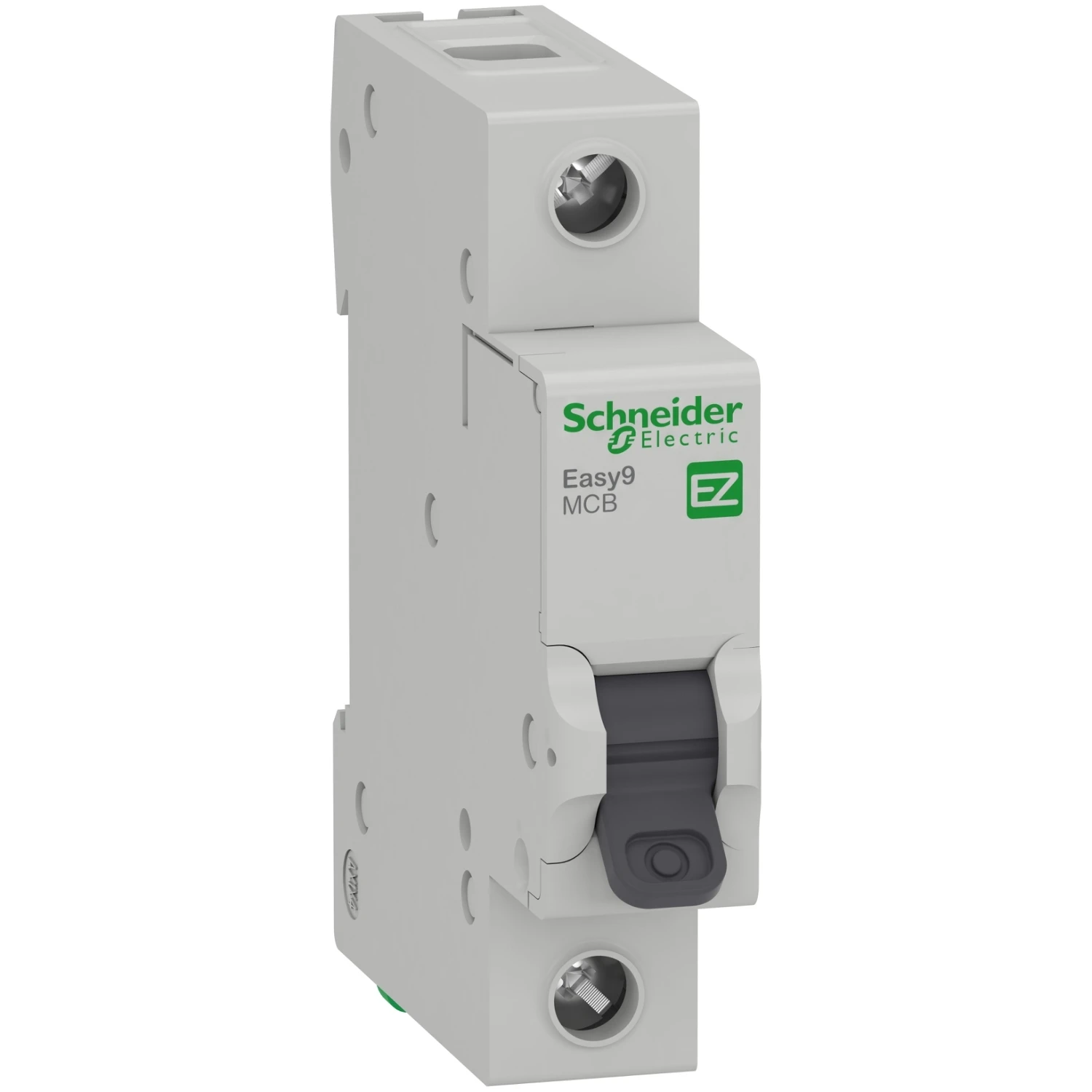

Schneider Electric Easy9 20A 1-Pole Curve-C Miniature Circuit Breaker 6kA 18 x 82 x 72mm

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Current limiting class 3 Pollution degree 2 Rated insulation voltage Ui 500 V Number of poles (total) 1 Number of protected poles 1 Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated voltage 230 V Rated current 20 A Rated impulse-withstand voltage (Uimp) 4 kV Recess depth 45 mm Connectable conductor cross section solid-core 1 – 25 mm² Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating 5 – 60 °C Concurrently switching N-neutral No Additional equipment possible No · Technical Data Sheet – Click to Download
