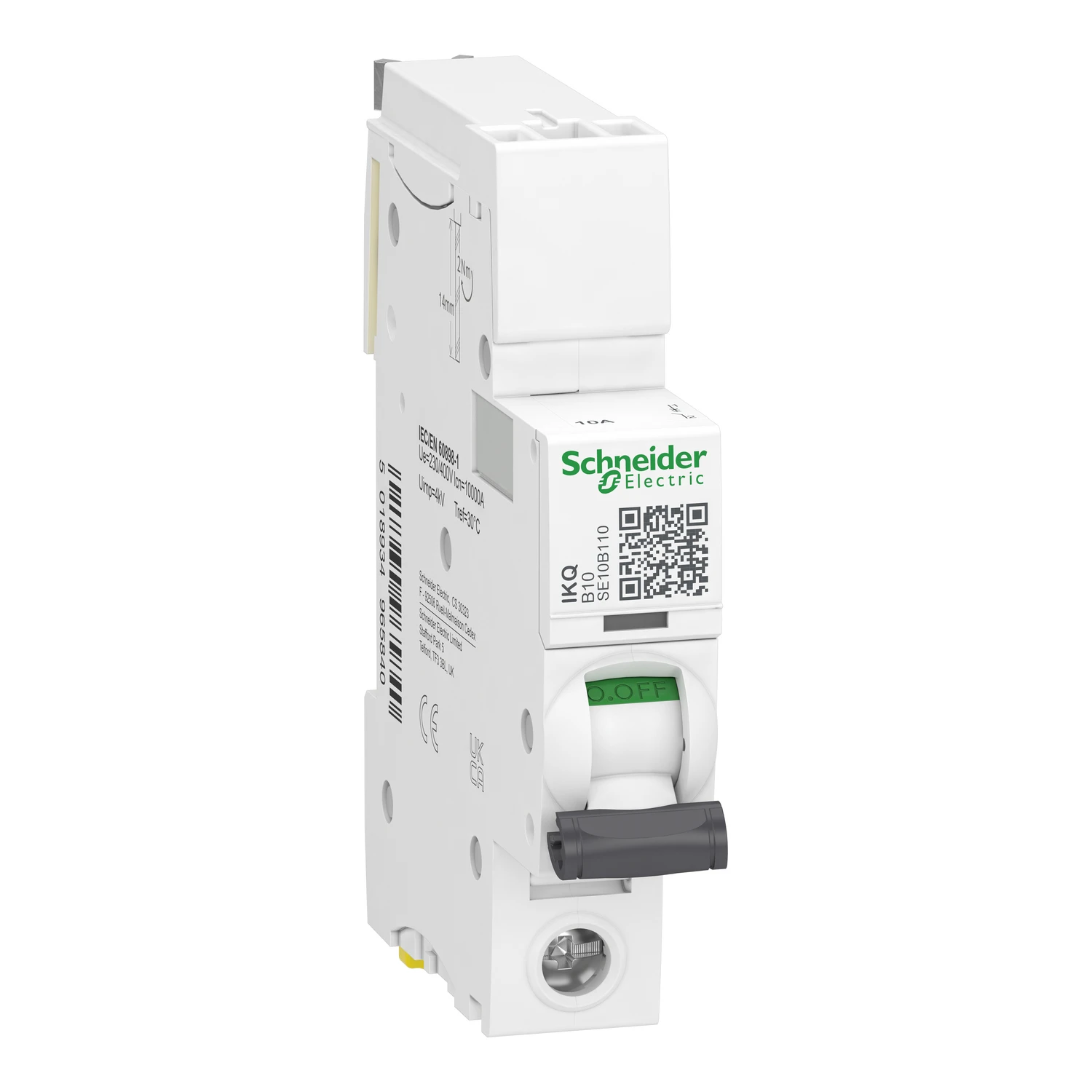

MCB iKQ Single Pole Type B 10A 10kA
£21.10 Incl. VAT
This Schneider LoadCentre KQ SE10B110 is a B curve 10A 1P 10kA MCB which is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Click-in busbar for speed of installation and guaranteed connection · · Trip free mechanism that operates even when the toggle is locked on · · Lockable in the on or off position · · IP20 conforming to IEC 60529 · · EN/IEC 60898-1 · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.
188 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Tripping characteristic (type/curve) B Recess depth 78.5 mm Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Number of protected poles 1 Rated voltage 240 V Over voltage category 3 Current limiting class 3 Pollution degree 2 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Additional equipment possible Yes Suitable for flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
