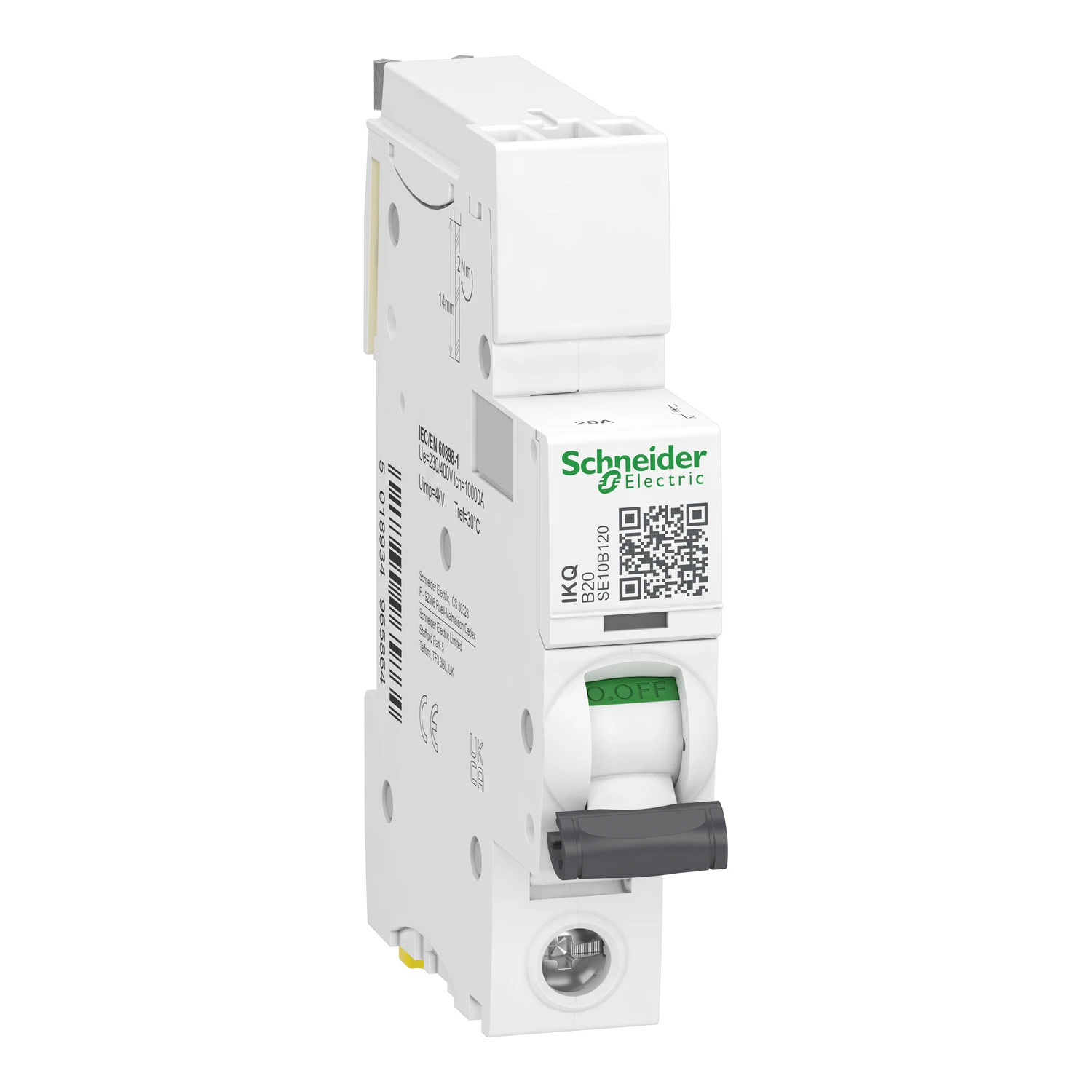

Schneider Electric MCB iKQ Single Pole Type B 20A 10kA
Schneider Electric MCB iKQ Single Pole Type B 20A 10kA
Schneider Electric MCB iKQ Single Pole Type B 20A 10kA - Image 2
Schneider Electric MCB iKQ Single Pole Type B 20A 10kA - Image 3

Schneider Electric MCB iKQ Single Pole Type B 20A 10kA

£19.36 Incl. VAT

This Schneider LoadCentre KQ SE10B120 is a B curve 20A 1P 10kA MCB which is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Click-in busbar for speed of installation and guaranteed connection · · Trip free mechanism that operates even when the toggle is locked on · · Lockable in the on or off position · · 1 Pole · · B Curve · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10B120 Categories: , , , , , Brand: Product Code: 2500577529

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Width in number of modular spacings 1 Rated voltage 240 V Rated insulation voltage Ui 440 V Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Over voltage category 3 Pollution degree 2 Rated current 20 A Recess depth 78.5 mm Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
