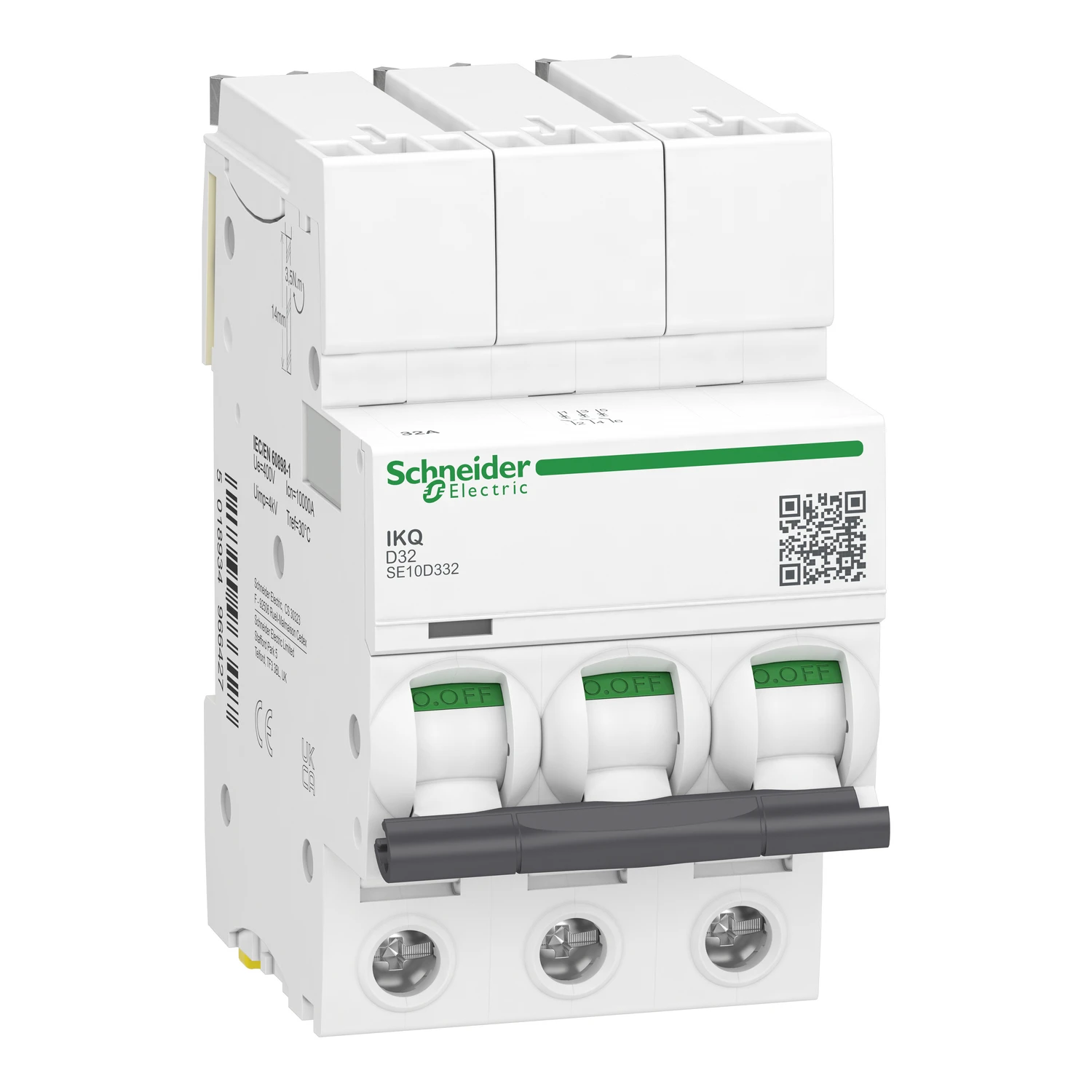

Schneider Electric MCB iKQ Triple Pole Type D 32A 10kA
Schneider Electric MCB iKQ Triple Pole Type D 32A 10kA
Schneider Electric MCB iKQ Triple Pole Type D 32A 10kA - Image 2
Schneider Electric MCB iKQ Triple Pole Type D 32A 10kA - Image 3

Schneider Electric MCB iKQ Triple Pole Type D 32A 10kA

£82.27 Incl. VAT

This Schneider LoadCentre KQ SE10D332 is a D curve 32A 3P 10kA MCB which is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Click-in busbar for speed of installation and guaranteed connection · · Trip free mechanism that operates even when the toggle is locked on · · Lockable in the on or off position · · 3 Pole · · D Curve · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10D332 Categories: , , Brand: Product Code: 2500577585

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Rated current 32 A Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated insulation voltage Ui 440 V Rated voltage 415 V Number of protected poles 3 Recess depth 78.5 mm Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Number of poles (total) 3 Pollution degree 2 Over voltage category 3 Width in number of modular spacings 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
