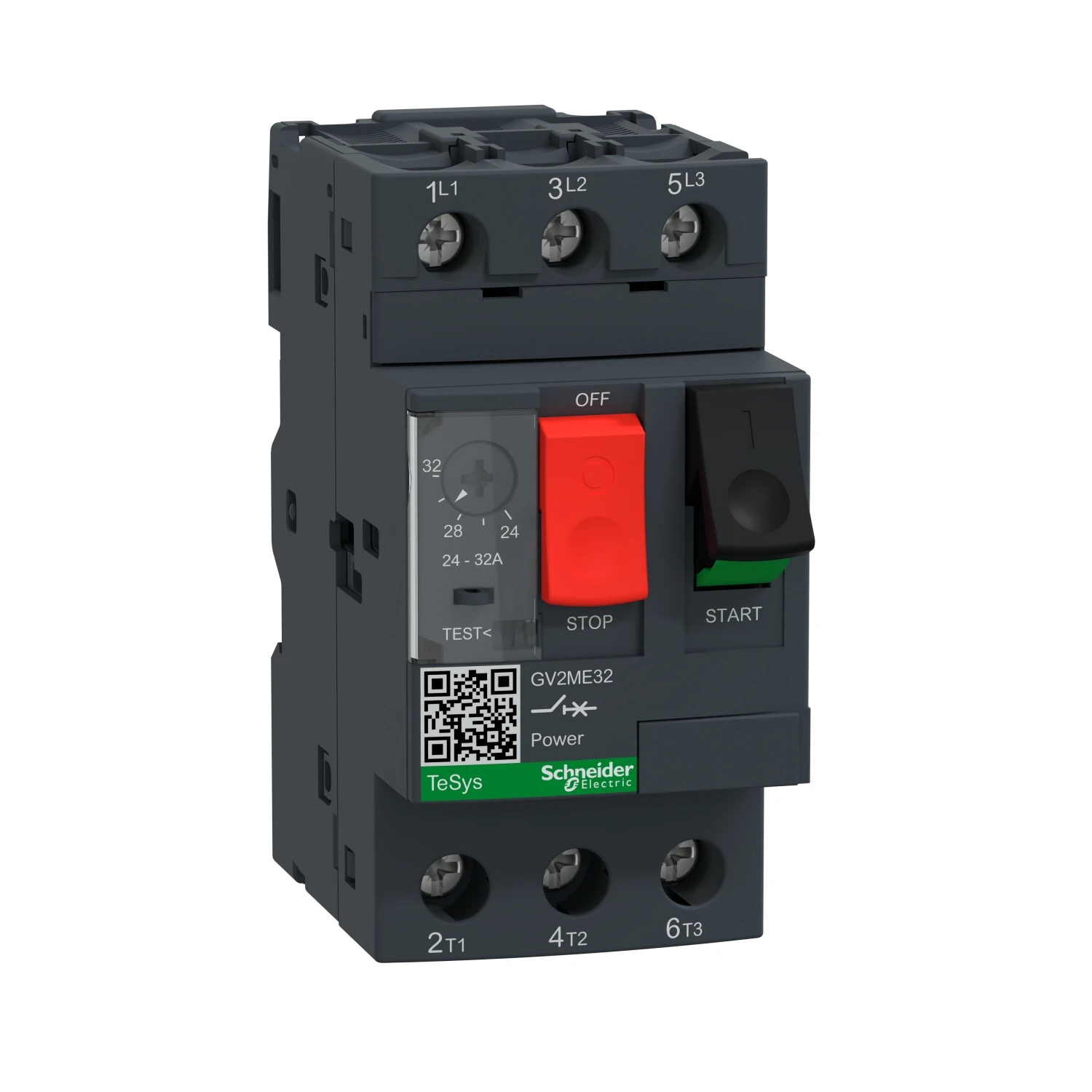

MCB Motor Pushbutton Thermal-Magnetic Triple Pole 24-32A
£194.77 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 10kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 10kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by push-button guaranteed for 100 000 cycles AC-3. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Out of stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Rated short-circuit breaking capacity Icu at 400 V, AC 10 kA Rated operation power at AC-3, 400 V 15 kW Rated permanent current Iu 32 A Rated operation power at AC-3, 230 V 7.5 kW Number of poles 3 Depth 78.2 mm Height 89 mm Adjustment range undelayed short-circuit release 416 – 416 A Overload release current setting 24 – 32 A Rated operating voltage 230 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2200033
