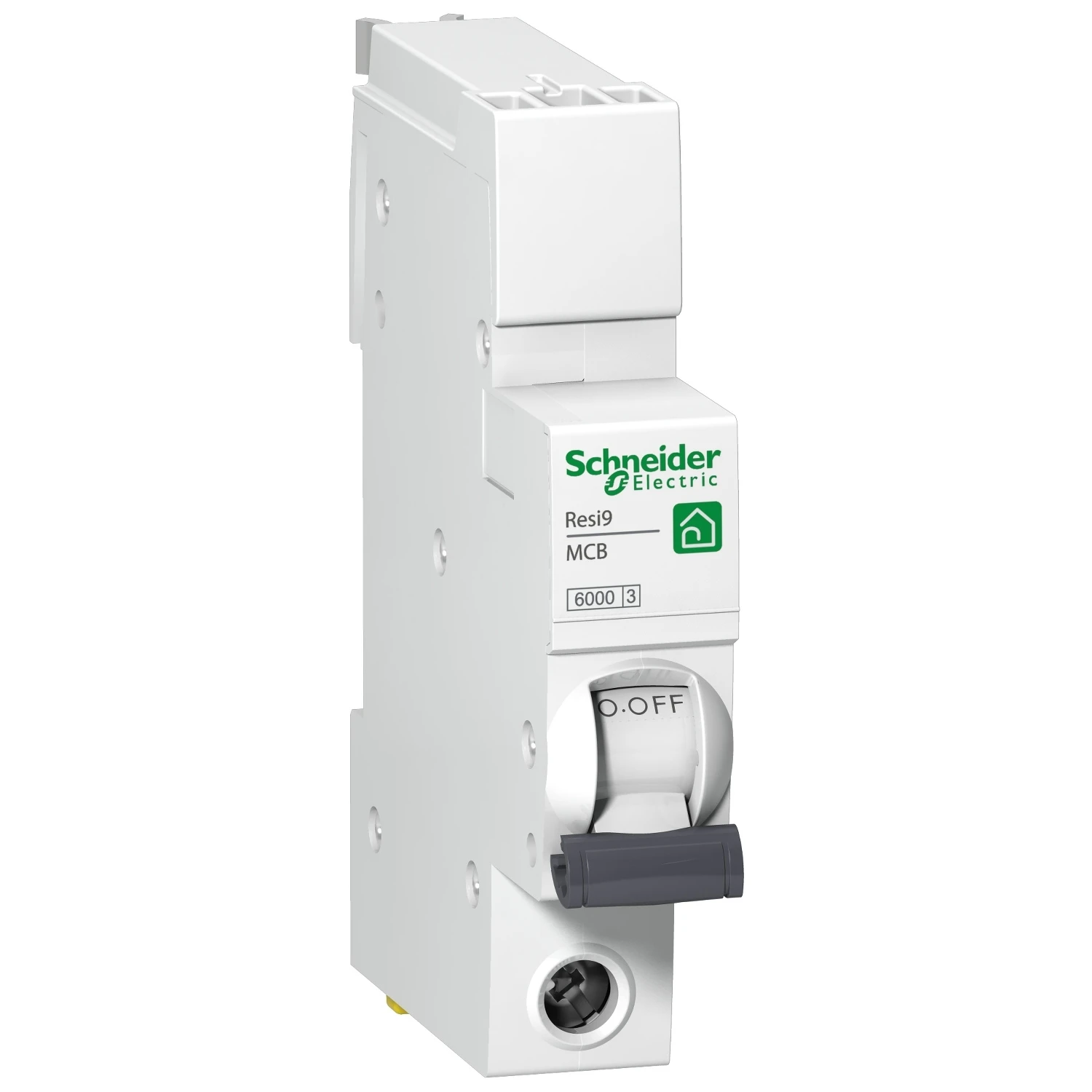

MCB Resi9 20A 1-Pole Curve-B 6kA 18 x 96 x 78mm
£5.99 Incl. VAT
The Schneider Electric Resi9 R9F87120 type B MCB 20A miniature circuit breaker provides plug-in circuit protection in Resi9 consumer units, with the highest levels of residential circuit protection safety. With a wide range of switch disconnectors, RCDs and MCBs, complimented by a single pole RCBO, Resi9 product range can provide continuity of supply in the event of fault. · · · Increased levels of user safety with Class II device front faces · · Retains plug-on philosophy for speed of installation and guaranteed connections · · It can be connected in seconds and with no incoming terminal to tighten · · The correct mechanical connection force is guaranteed every time · · Green Premium Product · · Operating temperature -25 to 40 °C
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230.00 V Recess depth 44.00 mm Width in number of modular spacings 1.00 Rated insulation voltage Ui 500.00 V Number of protected poles 1.00 Rated current 20.00 A Pollution degree 2.00 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated impulse-withstand voltage (Uimp) 4.00 kV Over voltage category 3.00 Current limiting class 3.00 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Number of poles (total) 1.00 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating -25.00 – 40.00 °C Concurrently switching N-neutral No Suitable for flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
