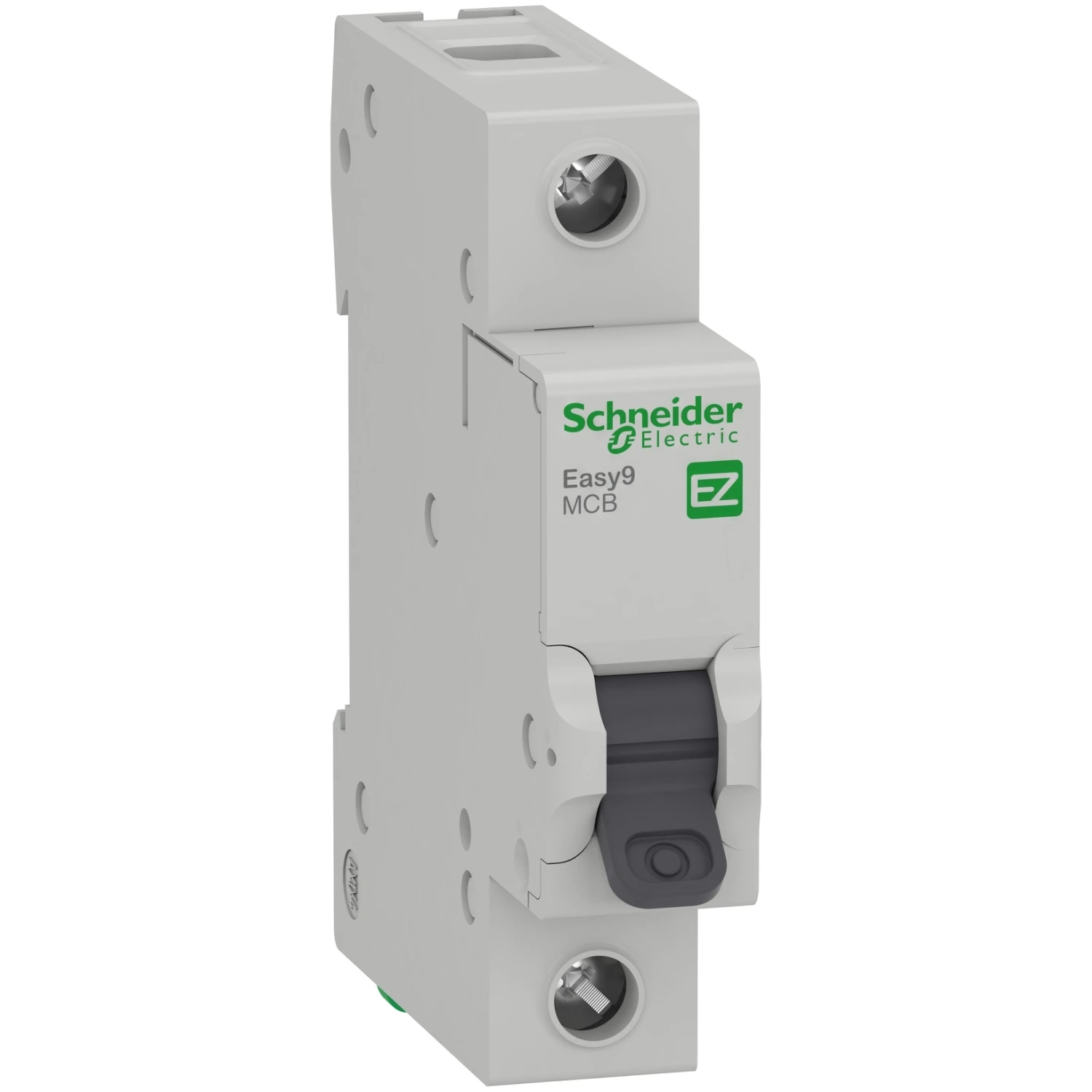

Schneider Electric MCB Single Pole Type B 16A 6kA 18 x 82 x 72mm
Brand: Schneider ElectricProduct code: EZ9F16116Go Magpie Ref: 5060062388831
The Schneider Electric EZ9F16116 is a single pole, 16 amp b curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · B Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · This product is dedicated for residential and small commercial buildings. · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. · · The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC.
£4.63inc VAT£3.86 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 16 A Recess depth 45 mm Rated insulation voltage Ui 500 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Current limiting class 3 Number of protected poles 1 Width in number of modular spacings 1 Pollution degree 2 Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating 5 – 60 °C Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
