MCB Single Pole Type B 32A 6kA 18 x 82 x 72mm
MCB Single Pole Type B 32A 6kA 18 x 82 x 72mm
MCB Single Pole Type B 32A 6kA 18 x 82 x 72mm - Image 2
MCB Single Pole Type B 32A 6kA 18 x 82 x 72mm - Image 3

MCB Single Pole Type B 32A 6kA 18 x 82 x 72mm

£4.26 Incl. VAT

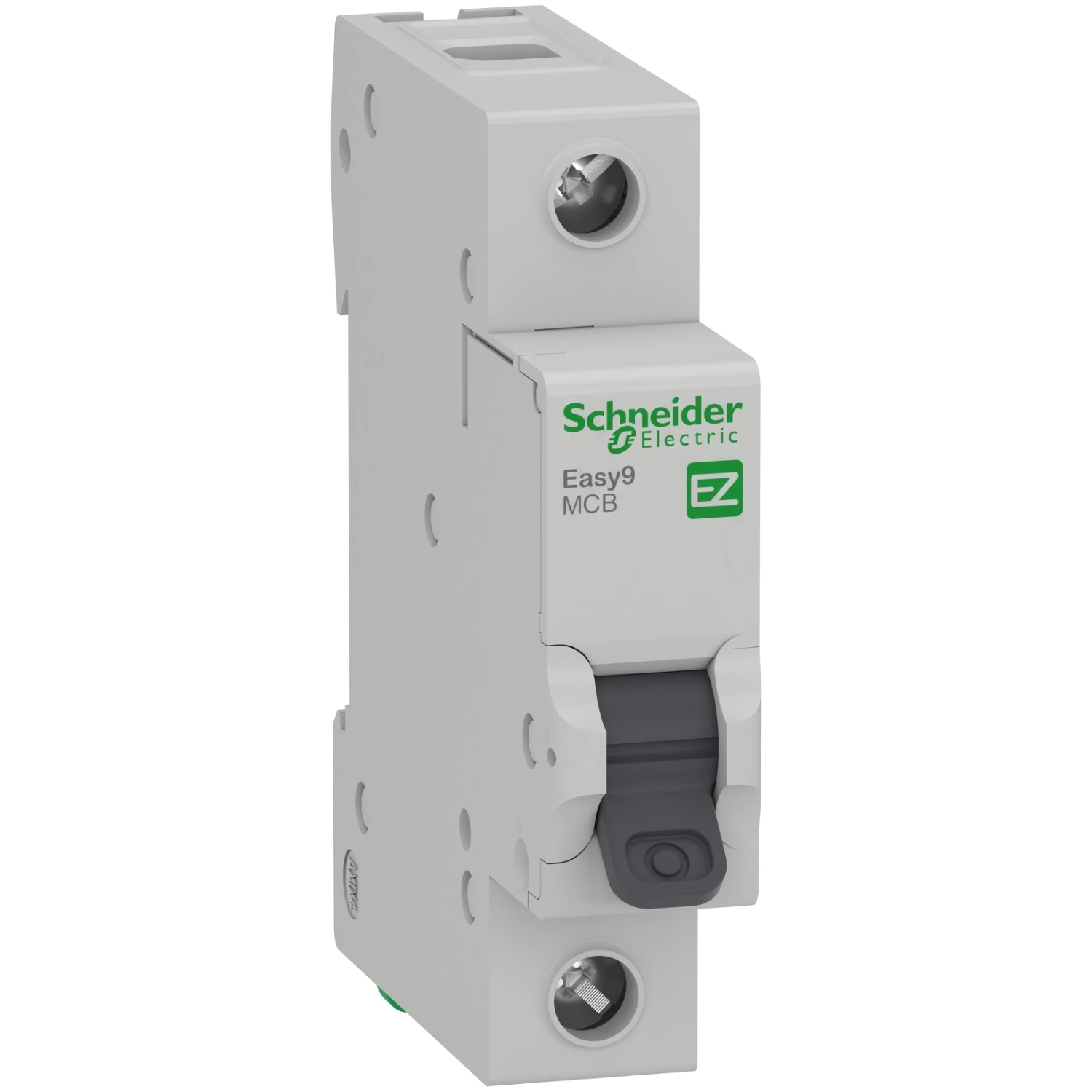

The Schneider Electric EZ9F16132 is a single pole, 32 amp b curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · C Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · This product is dedicated for residential and small commercial buildings. · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. · · The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9F16132 Categories: , , Brand: Part Number: 2500605644

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Recess depth 45 mm Tripping characteristic (type/curve) B Number of protected poles 1 Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Pollution degree 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated voltage 230 V Width in number of modular spacings 1 Number of poles (total) 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating 5 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible No · Technical Data Sheet – Click to Download
