Home › Circuit Breakers & Devices › Product
image-28650

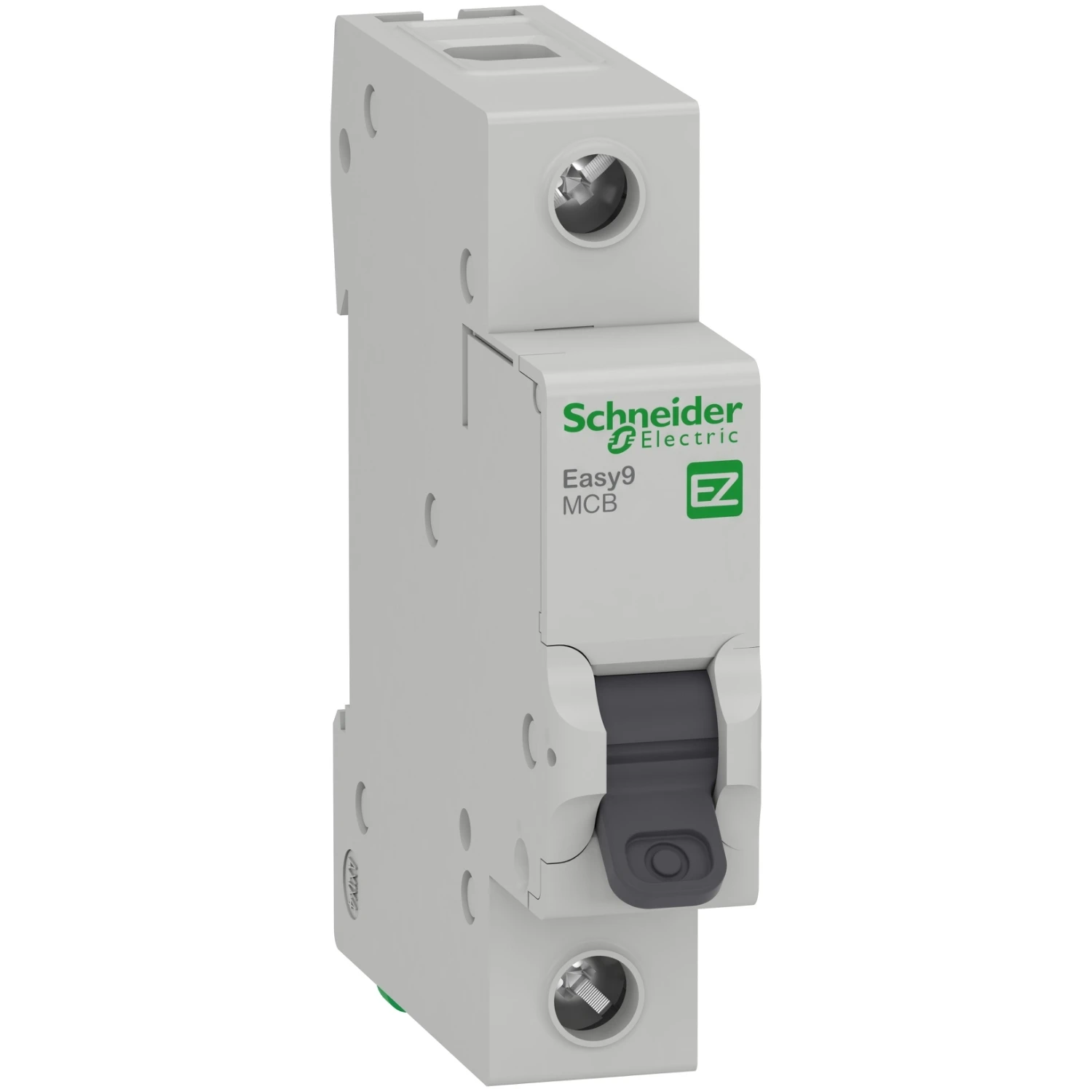

Product image supplied by the manufacturer
Circuit Breakers & Devices

Schneider Electric MCB Single Pole Type B 6A 6kA 18 x 82 x 72mm

SKU: EZ9F16106Go Magpie ID: 5060062388240

The Schneider Electric EZ9F16106 is a single pole, 6 amp b curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · B Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · This product is dedicated for residential and small commercial buildings. · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. · · The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 500VAC.

£4.63inc VAT£3.86 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 6 A Recess depth 45 mm Rated voltage 230 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Width in number of modular spacings 1 Pollution degree 2 Current limiting class 3 Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Number of poles (total) 1 Connectable conductor cross section solid-core 1 – 25 mm² Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating 5 – 60 °C Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
