Circuit Breakers & Devices

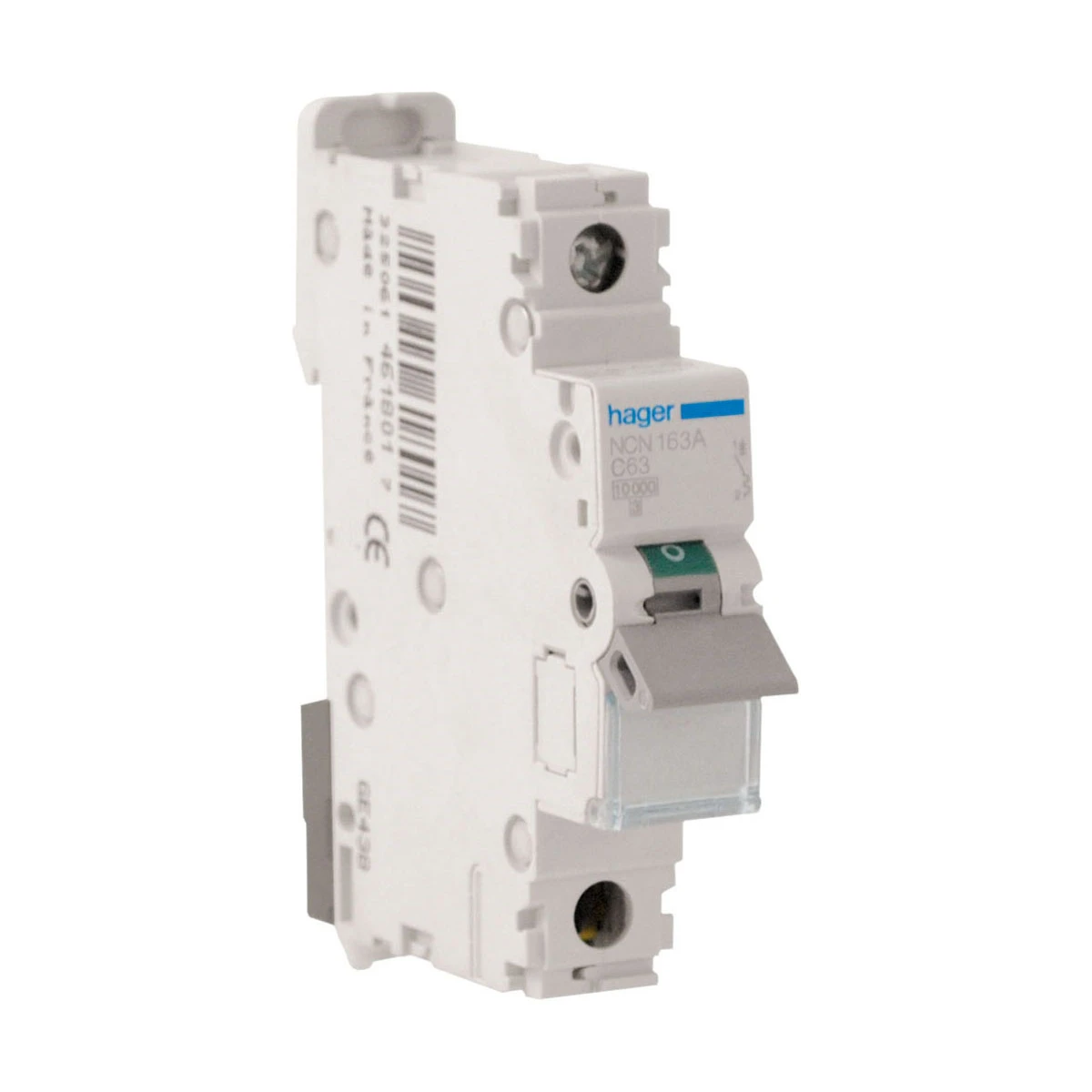

Hager MCB Single Pole Type C 63A 10Ka 1 Module
Brand: HagerProduct code: NCN163AGo Magpie Ref: 5060062361941
MCB 1P 10kA/15kA C-63A 1M · · · 10ka · · Plain annealed copper conductors · · Plain annealed copper conductors · · Trip free mechanism · · The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour · · Rigid conductor 35mm² · · Flexible conductor 25mm² · · With a fast system of closing, we increase the withstand of contacts on all types of loads · · Ensure control
£18.60inc VAT£15.50 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP2X Voltage type AC Tripping characteristic (type/curve) C Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated voltage 415 V Rated current 63 A Frequency 50 – 60 Hz · Technical Data Sheet – Click to Download
