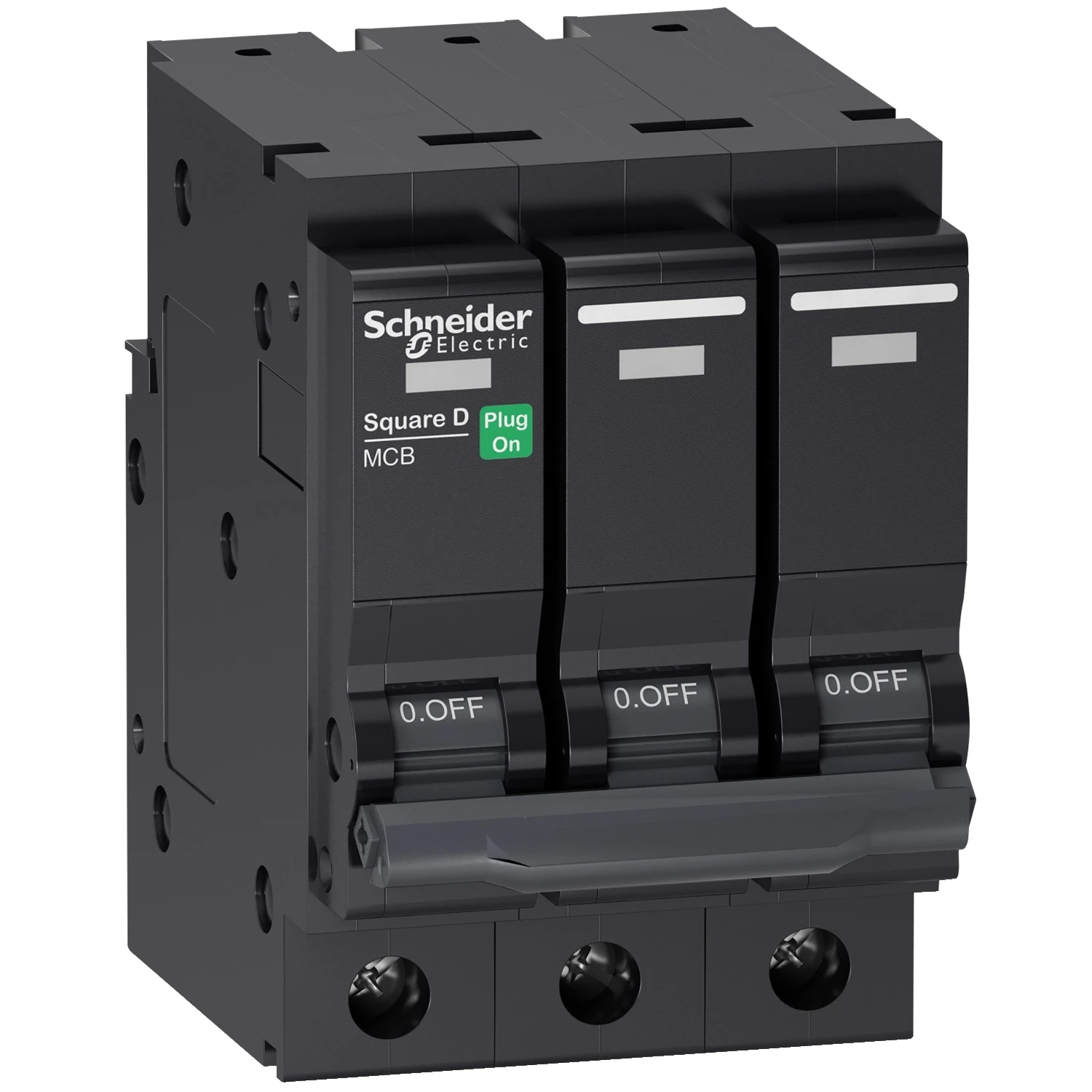

MCB Triple Pole Type C 16A 10Ka
MCB Triple Pole Type C 16A 10Ka
MCB Triple Pole Type C 16A 10Ka - Image 2
MCB Triple Pole Type C 16A 10Ka - Image 3

MCB Triple Pole Type C 16A 10Ka

£209.59 Incl. VAT

QO316VSC10 MCB TP Type C 16A 10kA. For use in LoadCentre QO boards. · · · This Square D product is a low voltage miniature circuit breaker (MCB). · · It is a 3P circuit breaker with 3 protected poles and 16A In rated current and C tripping curve. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC or 415VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · The tripping upon fault is indicated by a red mechanical state indicator light on the front face of the circuit breaker. · · Operating Temperature -5C to +60C · · Plug-On Mounting · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC or 415VAC. The Ui rated insulation voltage is 500VAC.

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: QO316VSC10 Categories: , , Brand: Part Number: 2500526484

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 16 A Rated voltage 415 V Tripping characteristic (type/curve) C Recess depth 58.8 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 500 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Over voltage category 4 Pollution degree 3 Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Ambient temperature during operating 5 – 60 °C Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 25 mm² Frequency 50 – 60 Hz Width in number of modular spacings 3 Number of poles (total) 3 Current limiting class 3 Concurrently switching N-neutral No Additional equipment possible Yes Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
