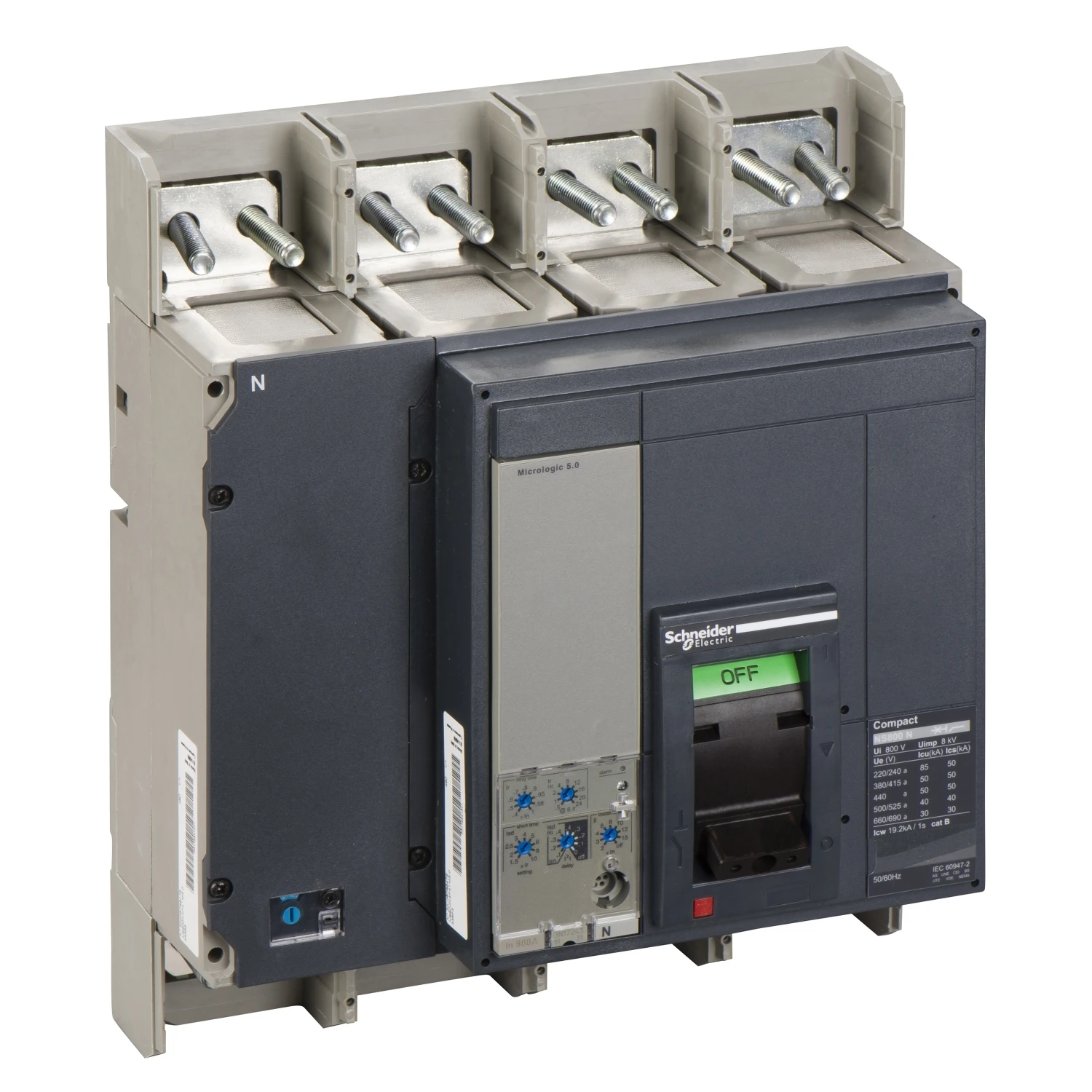

Schneider Electric MCCB Compact Four Pole Type N 800A 50Ka Micrologic 5.0 Manually Operated
£3,582.48 Incl. VAT
circuit breaker ComPact NS800N, 50 kA at 415 VAC, Micrologic 5.0 trip unit, 800 A, fixed,4 poles 4d. · · · ComPacT NS is a range of circuit breakers for built-in power & energy metering · · The solution covers ratings from 630 A to 3200 A · · MicroLogic electronic control unit provides electrical measurement and analysis functions · · ComPacT NS offers an optimized range of auxiliaries and accessories, field installable · · Flexible installation, in any position, in a switchboard or wall-mounted · · New transparent front cover with visible auxiliaries · · New toggle with ergonomic touch and optional LED blinking in trip position · · Wireless auxiliary contact OF/SD in Zigbee · · Sustainability with Green packaging and Green partnerships · · Linked to Smart Panels, improves uptime with complete monitoring solution
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 800 A Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Rated voltage 690 – 690 V Adjustment range short-term delayed short-circuit release 1.5 – 10 A Overload release current setting 320 – 800 A Adjustment range undelayed short-circuit release 1600 – 12000 A Motor drive optional Yes Switched-off indicator available Yes Complete device with protection unit Yes Motor drive integrated No Integrated earth fault protection Yes DIN rail (top hat rail) mounting optional No Suitable for DIN rail (top hat rail) mounting No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188617
