Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm
Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm

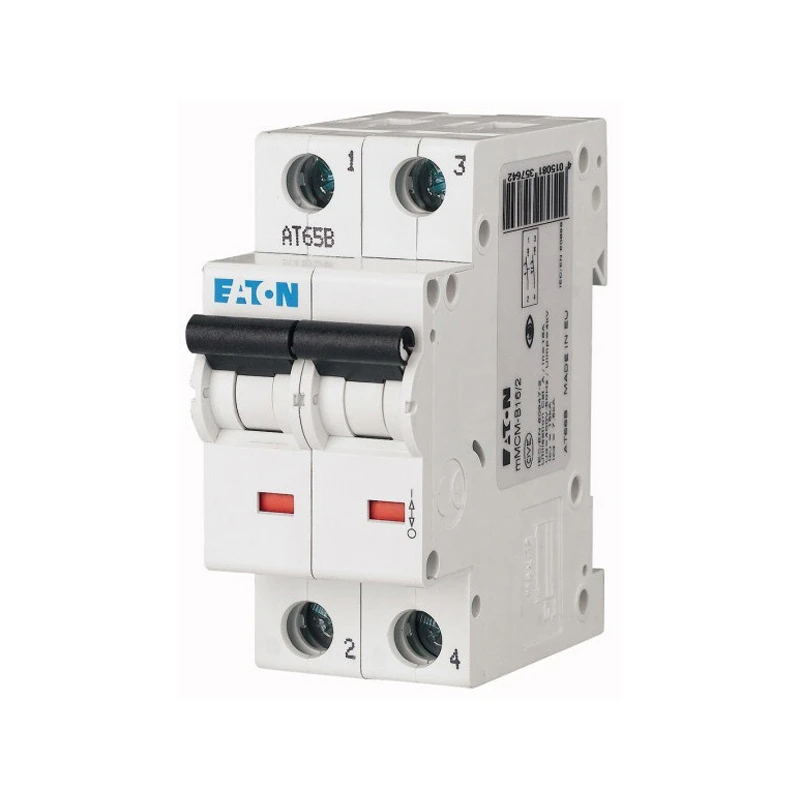

Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm - Image 2

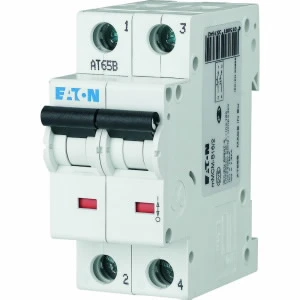

Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm - Image 3
Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm - Image 4

Eaton MCB Double Pole Type C 16A 10/15kA 36 x 80 x 75mm

£57.97 Incl. VAT

EM miniature circuit-breaker, 2 pole, trip type: C, rated operational current In: 16 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications · · · DIN rail mountable · · Suitable for use with both pin and comb type busbar systems · · Suites RCBOs, RCCBs and isolators · · Positive contact is flag indicator · · Operating temperature: -25 to 55 °C · · Impulse withstand voltage: 5kV · · Energy limiting class 3 · · Certified by KEMA · · Designed & tested in accordance with IEC 60898 & IEC 60947-2

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH216 Categories: , , Brand: Product Code: 2500330909

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Degree of protection (IP rating) IP20 Recess depth 70.5 mm Rated current 16 A Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated voltage 400 V Number of protected poles 2 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 440 V Current limiting class 3 Over voltage category 3 Pollution degree 2 Width in number of modular spacings 2 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 75 °C Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation No Explosion-proof No · Technical Data Sheet – Click to Download
