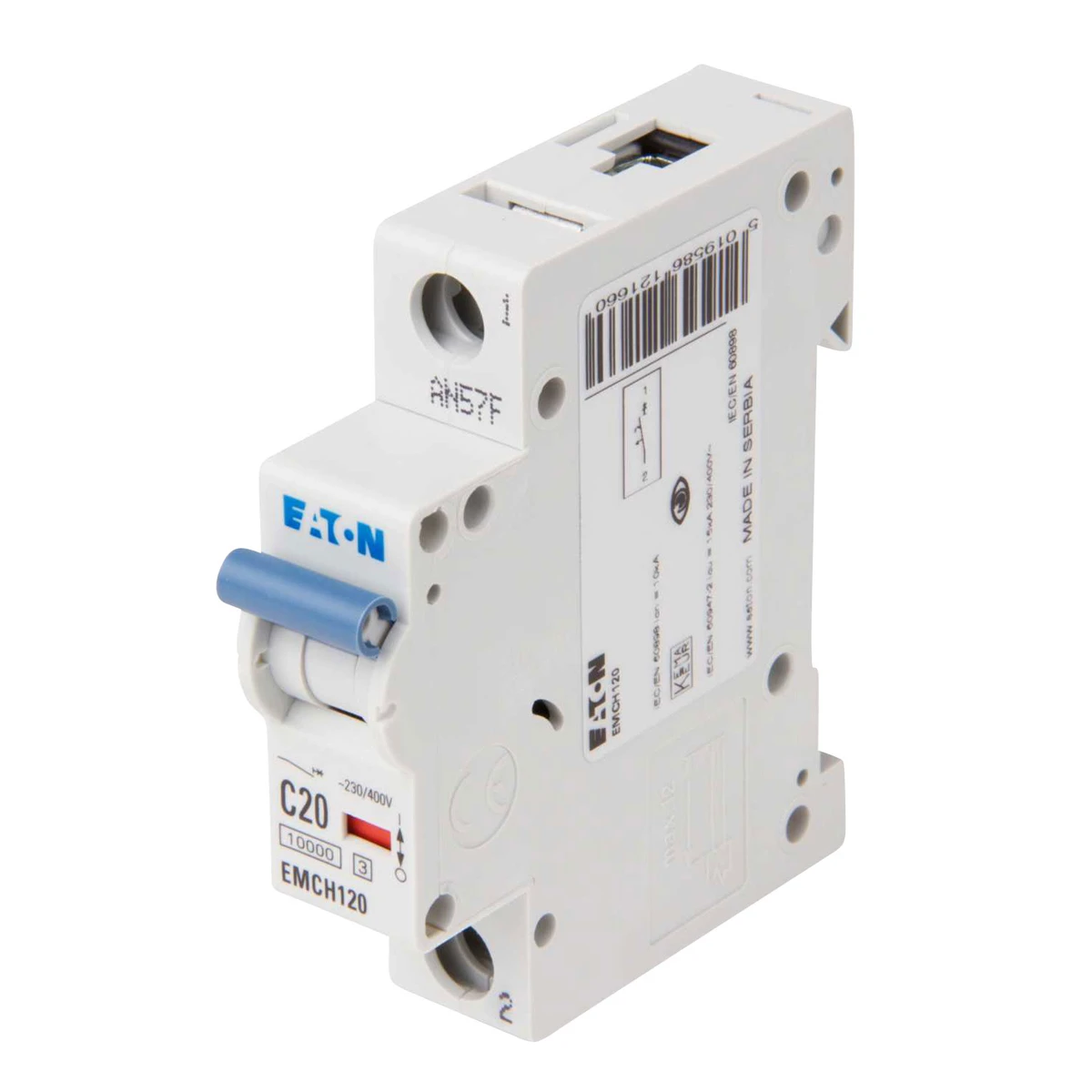

Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm
Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm
Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm - Image 2
Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm - Image 3
Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm - Image 4

Eaton MCB Single Pole Type C 20A 10/15kA 18 x 80 x 75mm

£18.05 Incl. VAT

EM miniature circuit-breaker, 1 pole, trip type: C, rated operational current In: 20 A, rated switching capacity according to IEC/EN 60947-2: 15 kA, rated switching capacity according to IEC/EN 60898-1: 10 kA, switchgear for residential and non-residential applications · · · Can be used in MEMShield distribution boards · · 10kA to IEC 60898 · · 15kA to IEC 60947-2 · · Rated breaking capacity 10 kA according to IEC/EN 60898-1 · · Tripping characteristics B, C and D · · Rated currents up to 63 A

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH120 Categories: , , Brand: Product Code: 2500330729

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Voltage type AC Rated current 20 A Rated voltage 240 V Recess depth 70.5 mm Current limiting class 3 Rated insulation voltage Ui 440 V Width in number of modular spacings 1 Pollution degree 2 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Number of protected poles 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Additional equipment possible Yes Flush-mounted installation Yes Explosion-proof No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
