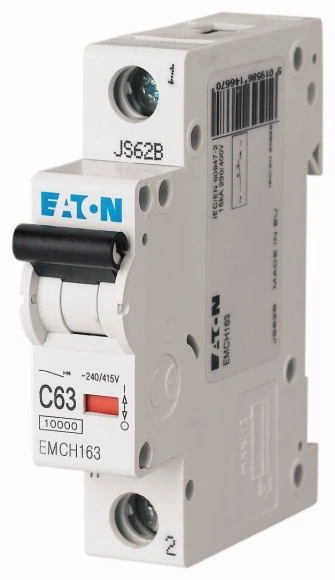

Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm
Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm

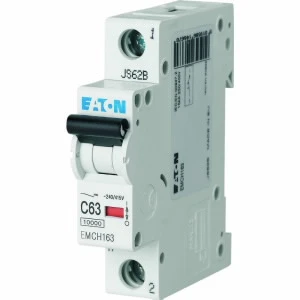

Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm - Image 2
Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm - Image 3
Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm - Image 4

Memshield 3 MCB 1 Pole 40A Type C 10/15kA 54 x 80 x 75mm

£18.35 Incl. VAT

The Eaton MCBs are fitted with box clamp terminals suitable for use with cables up to 25mm² and have a unique box clamp barrier to prevent incorrect cable insertion. This 10/15kA MCB are designed & tested in accordance with IEC 60898 & IEC 60947-2. It is certified by KEMA. Type C MCBs are most commonly used in commercial and general applications where there are lighting or motor loads involving high switching surges that may cause unwanted operation of type B devices. Suitable for 230/400 VAC systems and are calibrated for use at 40°C. · · · DIN rail mountable · · Suitable for use with both pin and comb type busbar systems · · Suites RCBOs, RCCBs and isolators · · Positive contact is flag indicator · · Operating temperature: -25 to 55 °C · · Impulse withstand voltage: 5kV · · Energy limiting class 3

23 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EMCH140 Categories: , , Brand: Part Number: 2500330817

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Rated current 40 A Degree of protection (IP rating) IP20 Recess depth 70.5 mm Rated voltage 240 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 0 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 0 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Frequency 50 – 60 Hz Pollution degree 2 Current limiting class 3 Over voltage category 3 Rated insulation voltage Ui 440 V Number of poles (total) 1 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 55 °C Flush-mounted installation Yes Explosion-proof No Concurrently switching N-neutral No Additional equipment possible Yes
