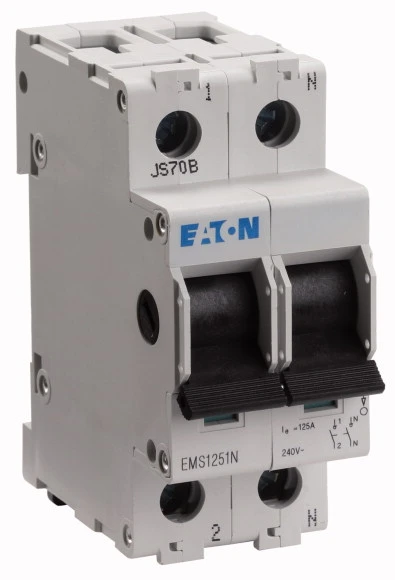

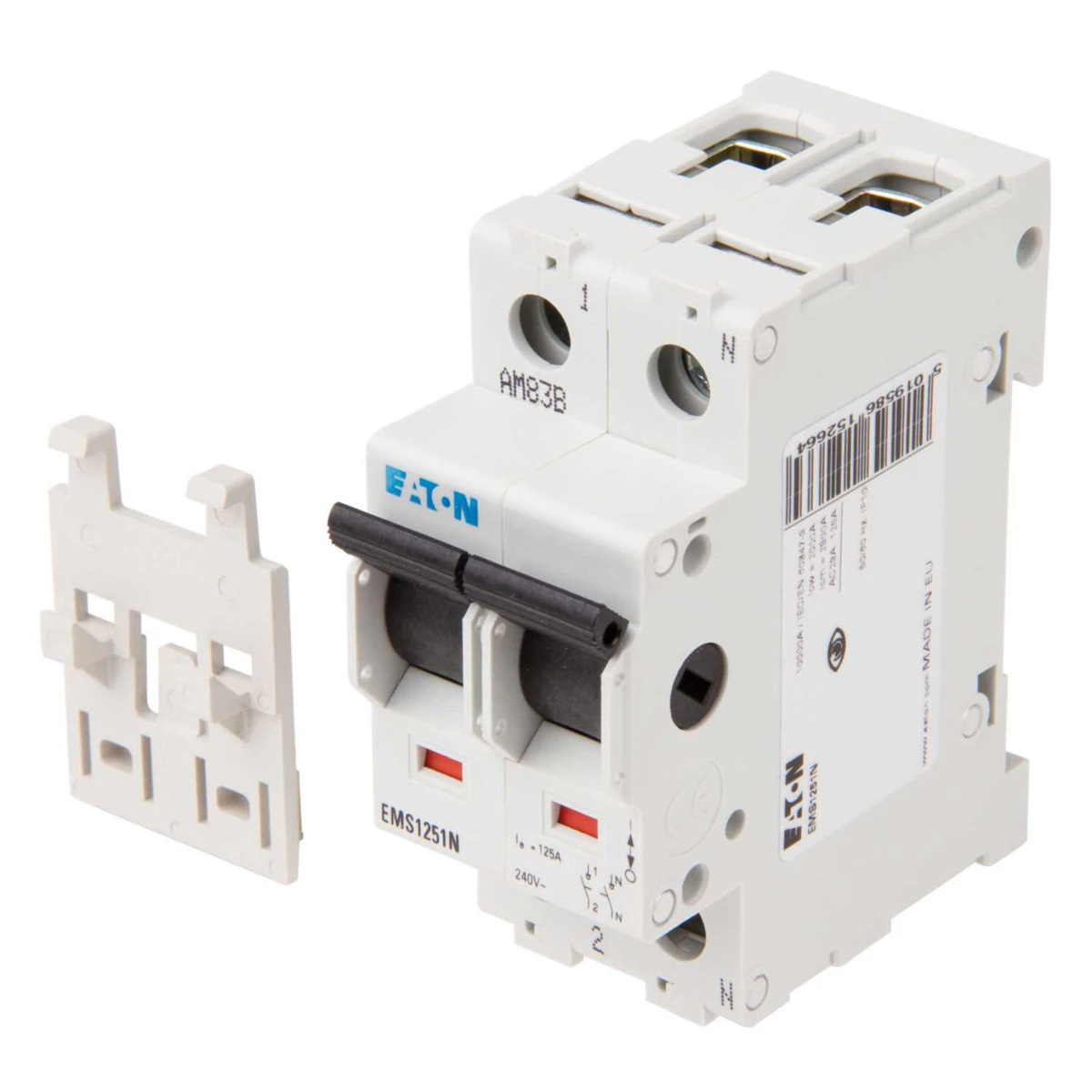

Memshield 3 Switch Disconnector SP&SN 125A

Description

Technical Specifications  Technical Specifications Main switch for distribution board Imprint/indication Symbol arrows Voltage type AC Rated voltage 415 V Rated current 125 A Degree of protection (IP rating) IP40 Short-circuit breaking capacity (Icw) 2 kA Number of contacts as normally closed contact 2 Number of contacts as normally open contact 2 Number of poles 2 Rated switching capacity 10 kA Max. lamp power 0 W Width in number of modular spacings 2 Recess depth 69.5 mm Number of contacts as change-over contact 0 Min. rated voltage 240 V With indicator lamp No Forced segregation (according to DIN VDE 0113) No · Technical Data Sheet – Click to Download
