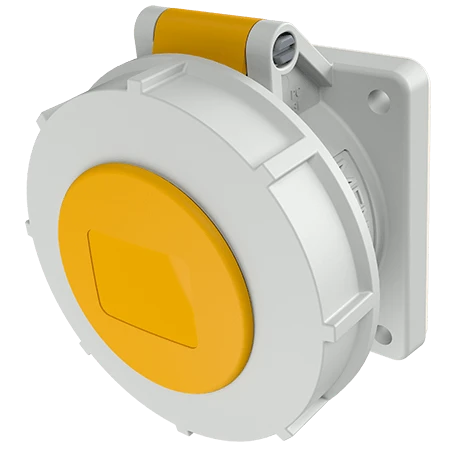

Mennekes Mennk Panel Socket 2P+E 16A 110V 4h
Mennekes Mennk Panel Socket 2P+E 16A 110V 4h
Mennekes Mennk Panel Socket 2P+E 16A 110V 4h - Image 2

Mennekes Mennk Panel Socket 2P+E 16A 110V 4h

£38.32 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 217A Brand: Product Code: 2500034188

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP67 Angle of plug Straight Voltage acc. EN 60309-2 110 V (50+60 Hz) yellow Connection system Screwed terminal Identification colour Yellow Number of poles 3 Flange size vertical 75 mm Drill hole distance vertical 60 mm Drill hole distance horizontal 60 mm Flange size horizontal 75 mm Amperage acc. UL/CSA (for UL-version) 20 A IEC-amperage 16 A Clock hour position 4 h RAL number 1021 Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
