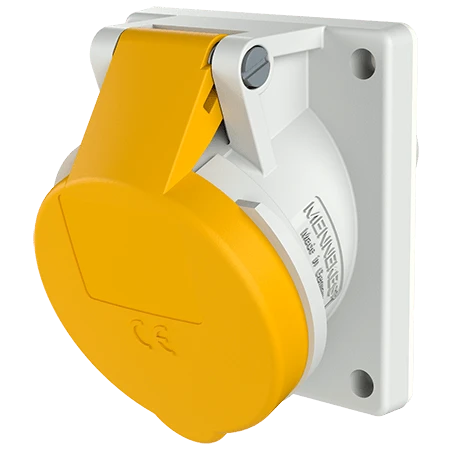

Mennekes Mennk Panel Socket 2P+E 16A 110V 4h
Mennekes Mennk Panel Socket 2P+E 16A 110V 4h
Mennekes Mennk Panel Socket 2P+E 16A 110V 4h - Image 2

Mennekes Mennk Panel Socket 2P+E 16A 110V 4h

£17.80 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1462 Brand: Product Code: 2500017323

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP44 Voltage acc. EN 60309-2 110 V (50+60 Hz) yellow Connection system Screwed terminal Identification colour Yellow Angle of plug Angled Amperage acc. UL/CSA (for UL-version) 20 A Number of poles 3 Clock hour position 4 h IEC-amperage 16 A Flange size vertical 74 mm Drill hole distance vertical 47 mm Drill hole distance horizontal 47 mm Flange size horizontal 62 mm RAL number 1021 Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
