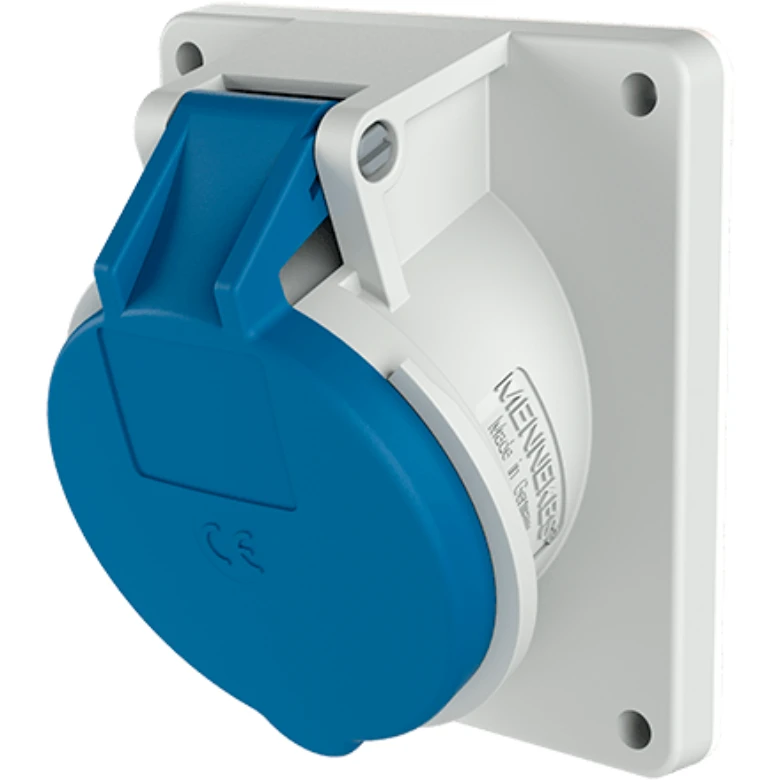

Mennekes Mennk Panel Socket 2P+E 32A 230V 6h
Mennekes Mennk Panel Socket 2P+E 32A 230V 6h
Mennekes Mennk Panel Socket 2P+E 32A 230V 6h - Image 2

Mennekes Mennk Panel Socket 2P+E 32A 230V 6h

£34.67 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1492 Categories: , , Brand: Product Code: 2500017374

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP67 Identification colour Blue Connection system Screwed terminal Angle of plug Angled Voltage acc. EN 60309-2 230 V (50+60 Hz) blue RAL number 5007 Number of poles 3 IEC-amperage 32 A Amperage acc. UL/CSA (for UL-version) 30 A Drill hole distance vertical 85 mm Drill hole distance horizontal 77 mm Flange size horizontal 92 mm Clock hour position 6 h Flange size vertical 100 mm Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
