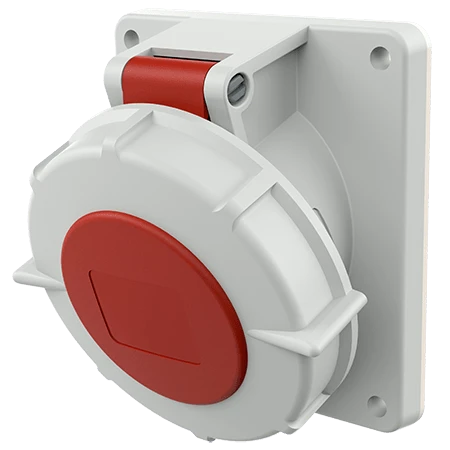

Mennekes Mennk Panel Socket 3P+E 32A 400V 6h

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP67 Connection system Screwed terminal Identification colour Red Angle of plug Angled Voltage acc. EN 60309-2 400-440 V (50+60 Hz) red Number of poles 4 IEC-amperage 32 A Flange size vertical 100 mm Amperage acc. UL/CSA (for UL-version) 30 A Drill hole distance vertical 85 mm Clock hour position 6 h Drill hole distance horizontal 77 mm Flange size horizontal 92 mm RAL number 3013 Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
