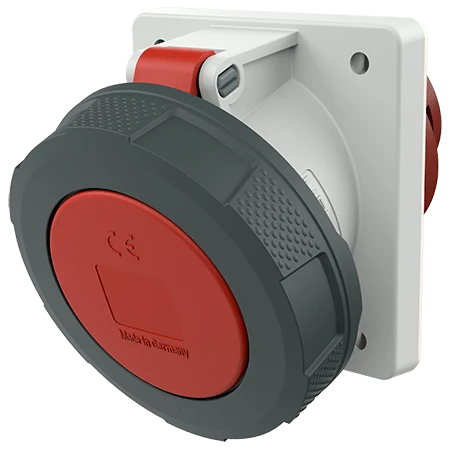

Mennekes Mennk Panel Socket 3P+E 63A 400V 6h
Mennekes Mennk Panel Socket 3P+E 63A 400V 6h
Mennekes Mennk Panel Socket 3P+E 63A 400V 6h - Image 2

Mennekes Mennk Panel Socket 3P+E 63A 400V 6h

£134.75 Incl. VAT

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 205A Brand: Product Code: 2500034176

Description

Technical Specifications  Technical Specifications Panel-mounted CEE socket outlet Material Plastic Degree of protection (IP rating) IP67 Identification colour Red Voltage acc. EN 60309-2 400-440 V (50+60 Hz) red Angle of plug Angled Connection system Screwed terminal Number of poles 4 Flange size vertical 110 mm IEC-amperage 63 A Amperage acc. UL/CSA (for UL-version) 60 A Drill hole distance vertical 85 mm Clock hour position 6 h Drill hole distance horizontal 77 mm Flange size horizontal 106 mm RAL number 3013 Military model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
