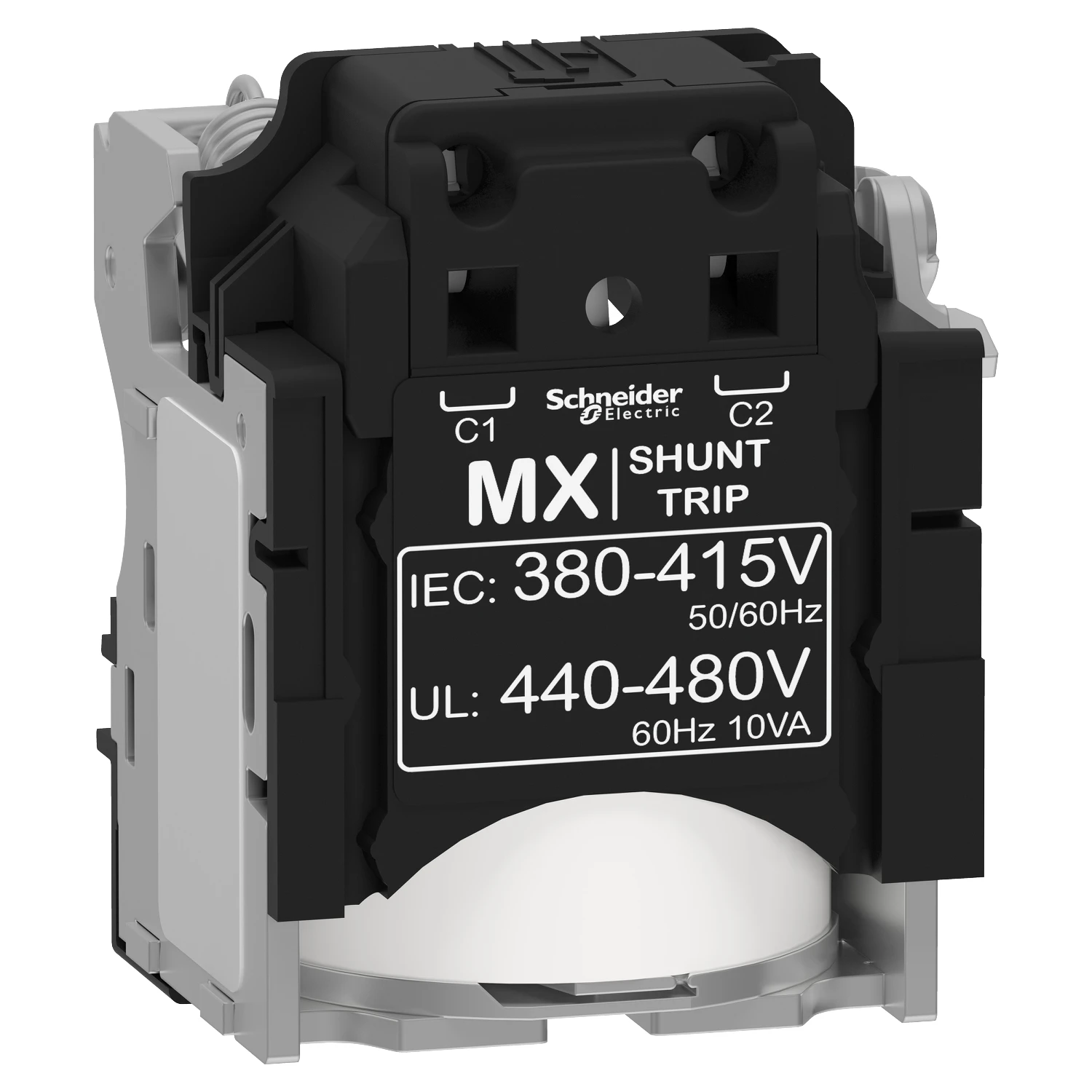

image-569
Product image supplied by the manufacturer

Schneider Electric Merlin Gerin Shunt Trip Voltage Release MX 440-480V 60Hz 380-415V 50/60Hz

SKU: LV429388Go Magpie ID: 5060062354636

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard.

£112.69inc VAT£93.91 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Shunt release (for power circuit breaker) Number of contacts as change-over contact 0.00 End value adjustment range undelayed short-circuit release – A Number of contacts as normally closed contact 0.00 Number of contacts as normally open contact 0.00 Initial value of the undelayed short-circuit release – setting range – A Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 380.00 – 415.00 V Rated control supply voltage at AC 60 Hz 440.00 – 480.00 V Suitable for motor safety switch No Suitable for off-load switch Yes Suitable for overload relay No Suitable for power circuit breaker Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
