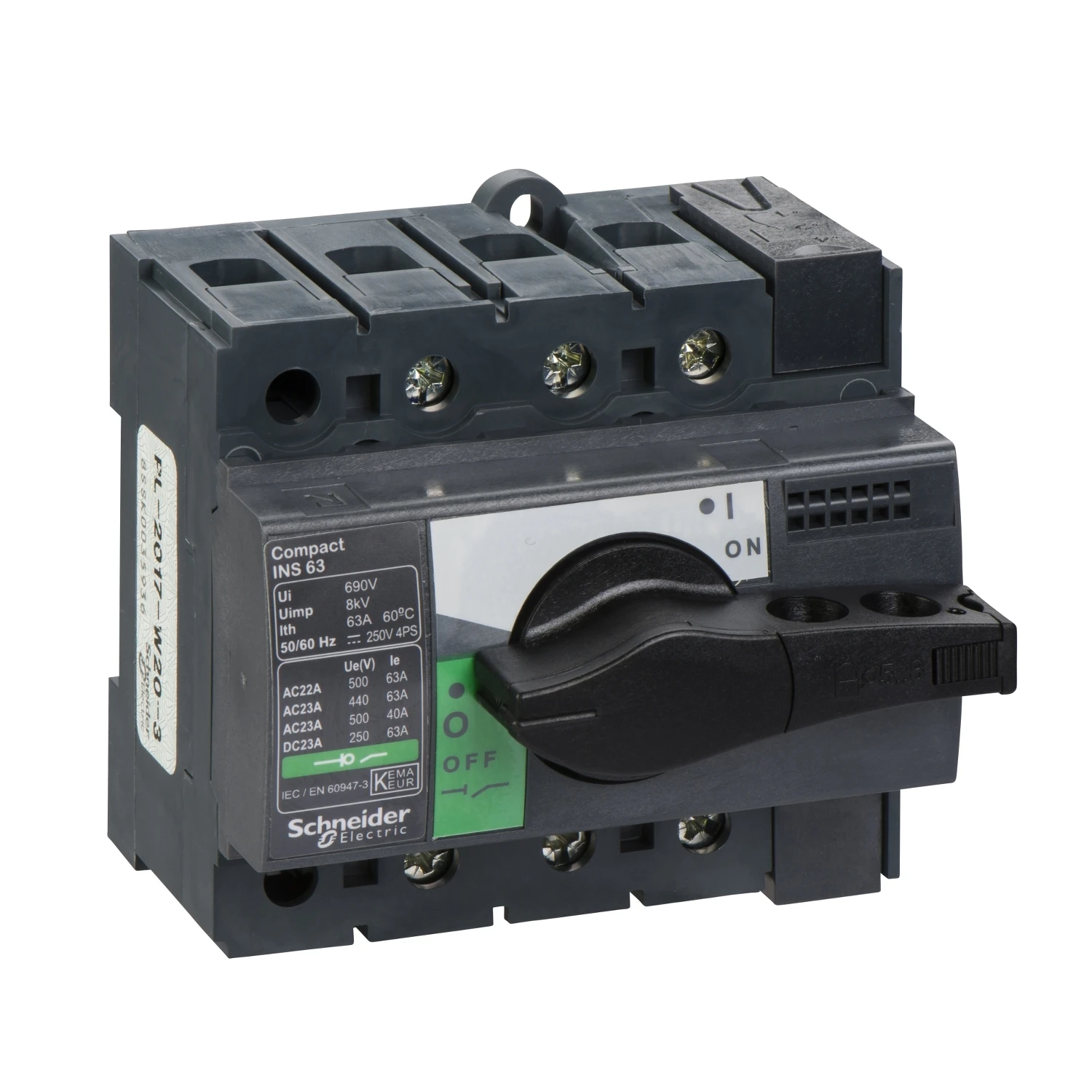

Merlin Gerin Switch-Disconnector Compact Ins63 3 Poles 63A
Merlin Gerin Switch-Disconnector Compact Ins63 3 Poles 63A
Merlin Gerin Switch-Disconnector Compact Ins63 3 Poles 63A - Image 2
Merlin Gerin Switch-Disconnector Compact Ins63 3 Poles 63A - Image 3

Merlin Gerin Switch-Disconnector Compact Ins63 3 Poles 63A

£99.35 Incl. VAT

This Compact INS63 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard. · · · Height: 85mm · · Number of Poles: 3P · · Range: Ins40 – 160 · · Width: 90mm · · Weight: 0.5kg · · Depth: 62mm

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 28902 Categories: , , Brand: Part Number: 2500097361

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0.00 Rated short-time withstand current lcw 3.00 kA Number of poles 3.00 Rated permanent current Iu 63.00 A Number of auxiliary contacts as normally closed contact 0.00 Number of switches 1.00 Version as emergency stop installation No Rated operating voltage 500.00 – 500.00 V Rated permanent current at AC-23, 400 V 63.00 A Max. rated operation voltage Ue AC 500.00 V Number of auxiliary contacts as change-over contact 2.00 Rated operation power at AC-23, 400 V 30.00 kW Conditioned rated short-circuit current Iq 36.00 kA Version as maintenance-/service switch Yes Suitable for front mounting 4-hole Yes Version as main switch Yes Motor drive integrated No Suitable for distribution board installation Yes Suitable for front mounting centre Yes Suitable for floor mounting Yes Version as safety switch No Suitable for intermediate mounting No Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
