Metal Industrial Box Plain Door H300 x W300 x D120 IP66 IK10 RAL 7035
Metal Industrial Box Plain Door H300 x W300 x D120 IP66 IK10 RAL 7035

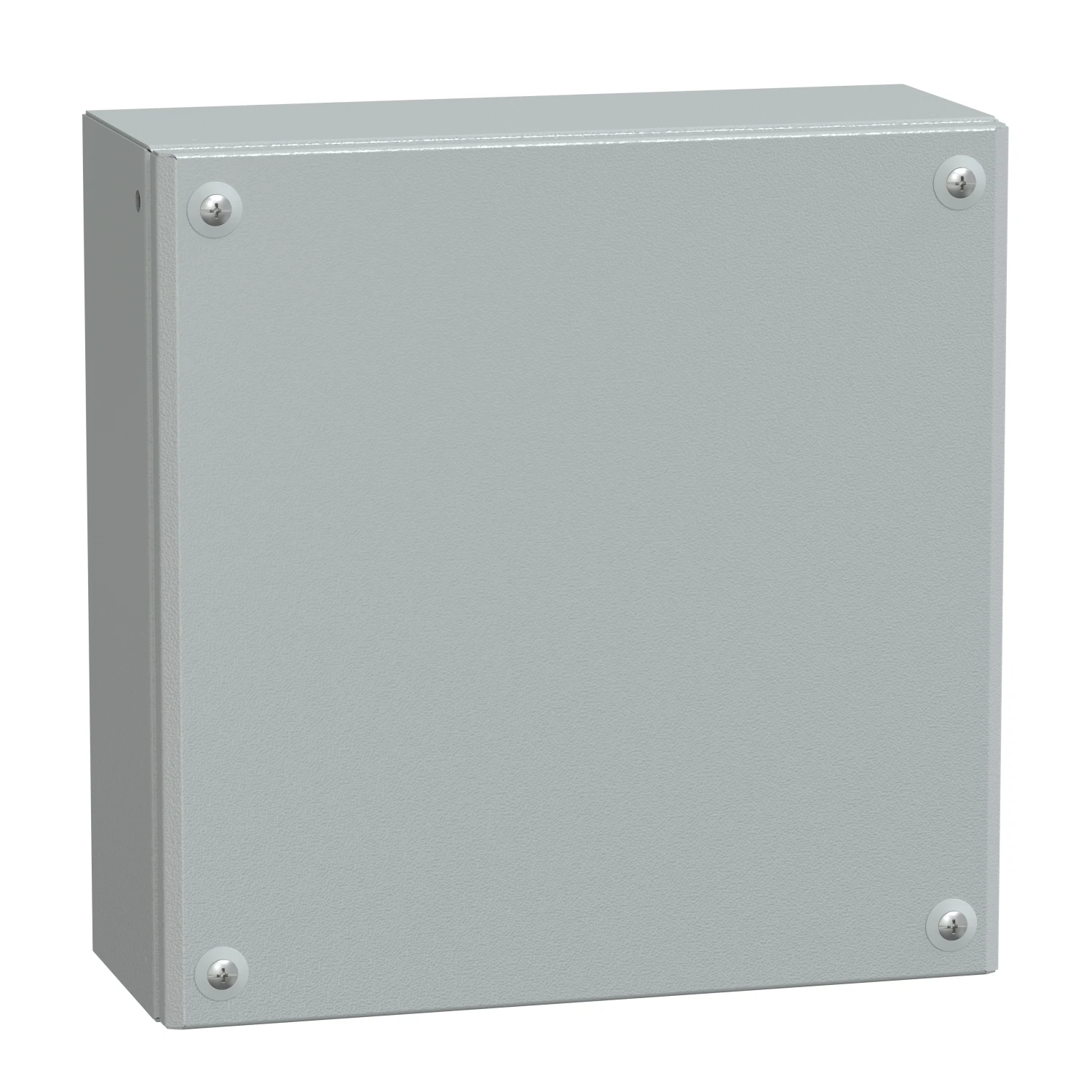

Metal Industrial Box Plain Door H300 x W300 x D120 IP66 IK10 RAL 7035 - Image 2
Metal Industrial Box Plain Door H300 x W300 x D120 IP66 IK10 RAL 7035 - Image 3

Metal Industrial Box Plain Door H300 x W300 x D120 IP66 IK10 RAL 7035

£71.88 Incl. VAT

Metal industrial box plain door H300xW300xD120 IP66 IK10 RAL 7035. range: Spacial – product name: Spacial SBM – device application: multi-purpose – product or component type: industrial box – device short name: SBM – enclosure type: flat face box – enclosure nominal height: 300 mm – enclosure nominal width: 300 mm – enclosure nominal depth: 120 mm – device composition: 1 x body, 1 x cover, 4 x cover screw – body type: single piece body folded and welded – cover fixing: half turn metal screw. ยท ยท ยท Industrial box for Spacial SBM. ยท ยท Multi purpose. ยท ยท 300 x 300 x 120 mm. ยท ยท Flat face box. ยท ยท Wall mounted on enclosure. ยท ยท Single piece body folded and welded. ยท ยท Cover fixing with half turn metal srew. ยท ยท Cover by 4 captive screw PZ2 outside sealed area. ยท ยท Made sheet of stee with polyester powder finish. ยท ยท Protection IP 66, IK10.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYSBM303012 Categories: , , Brand: Part Number: 2500597912

Description

Technical Specifications ๎— Technical Specifications Enclosure/switchgear cabinet Number of doors 0 Height 300 mm Width 300 mm Depth 120 mm RAL number 7035 Number of locks 0 Mounting plate depth-adjustable No Floor installation possible No EMC-version No With mounting plate No Wall fastening possible Yes With ventilation door No Suitable for outdoor set-up No Suitable for metrical mounting Yes With glazed door No Pitched roof No Suitable for wall built-in No Tackable Yes With backside door No Pole fastening Yes ยท Technical Data Sheet โ€“ Click to Download
