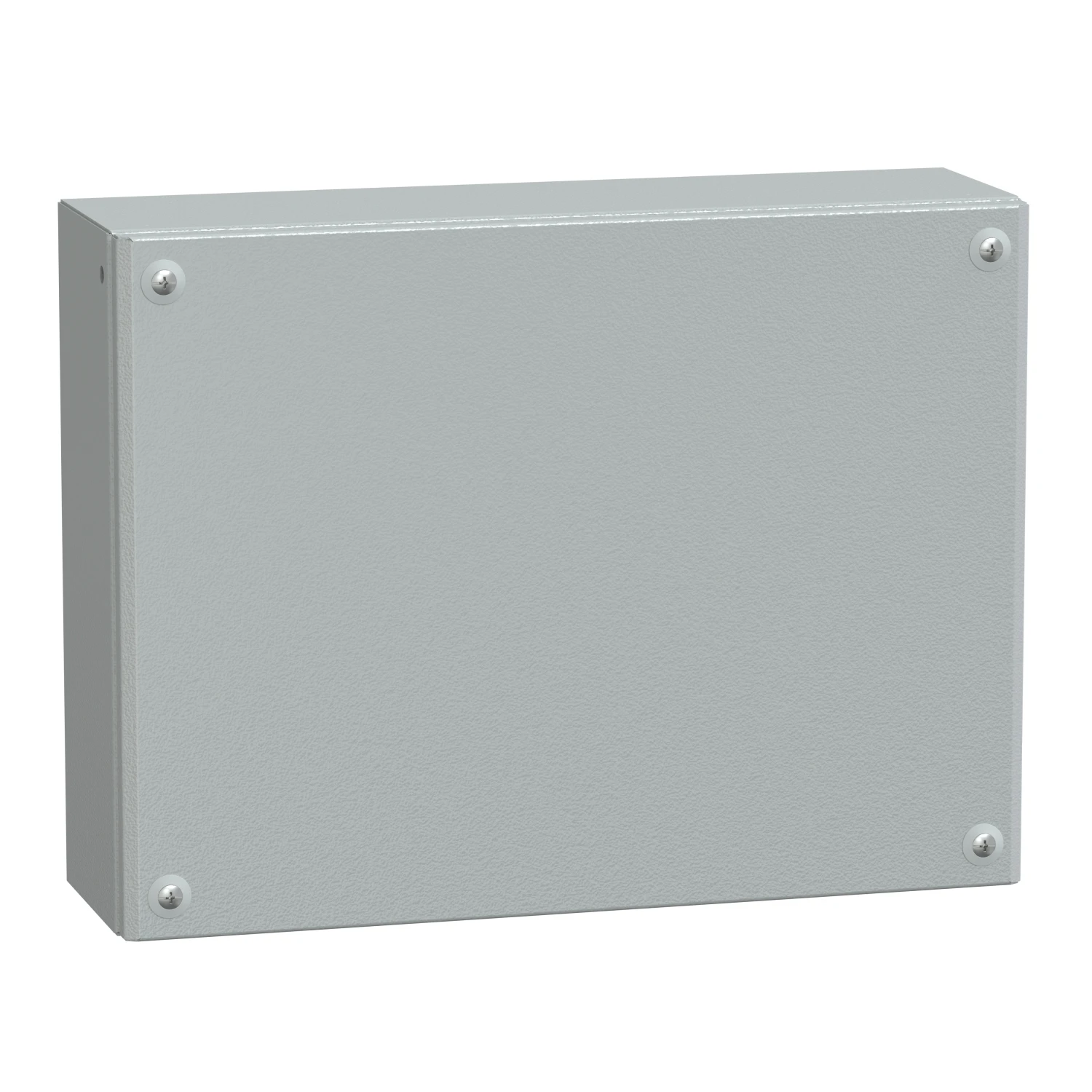

Metal Industrial Box Plain Door H300 x W400 x D120 IP66 IK10 RAL 7035
Metal Industrial Box Plain Door H300 x W400 x D120 IP66 IK10 RAL 7035
£75.95 Incl. VAT
Metal industrial box plain door H300xW400xD120 IP66 IK10 RAL 7035. range: Spacial – product name: Spacial SBM – device application: multi-purpose – product or component type: industrial box – device short name: SBM – enclosure type: flat face box – enclosure nominal height: 300 mm – enclosure nominal width: 400 mm – enclosure nominal depth: 120 mm – device composition: 1 x body, 1 x cover, 4 x cover screw – body type: single piece body folded and welded – cover fixing: half turn metal screw. · · · Industrial box for Spacial SBM. · · Multi purpose. · · 300 x 400 x 120 mm. · · Flat face box. · · Wall mounted on enclosure. · · Single piece body folded and welded. · · Cover fixing with half turn metal srew. · · Cover by 4 captive screw PZ2 outside sealed area. · · Made sheet of stee with polyester powder finish. · · Protection IP 66, IK10.
Out of stock
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Number of doors 0 Height 300 mm RAL number 7035 Number of locks 0 Width 400 mm Depth 120 mm With mounting plate No Tackable Yes With backside door No With ventilation door No Suitable for wall built-in No Wall fastening possible Yes EMC-version No Floor installation possible No Mounting plate depth-adjustable No Suitable for metrical mounting Yes Suitable for outdoor set-up No Pitched roof No With glazed door No Pole fastening Yes · Technical Data Sheet – Click to Download
