Metal Safety Switch XCSA, 3 NC, slow break, 1 entry tapped M20
£104.29 Incl. VAT

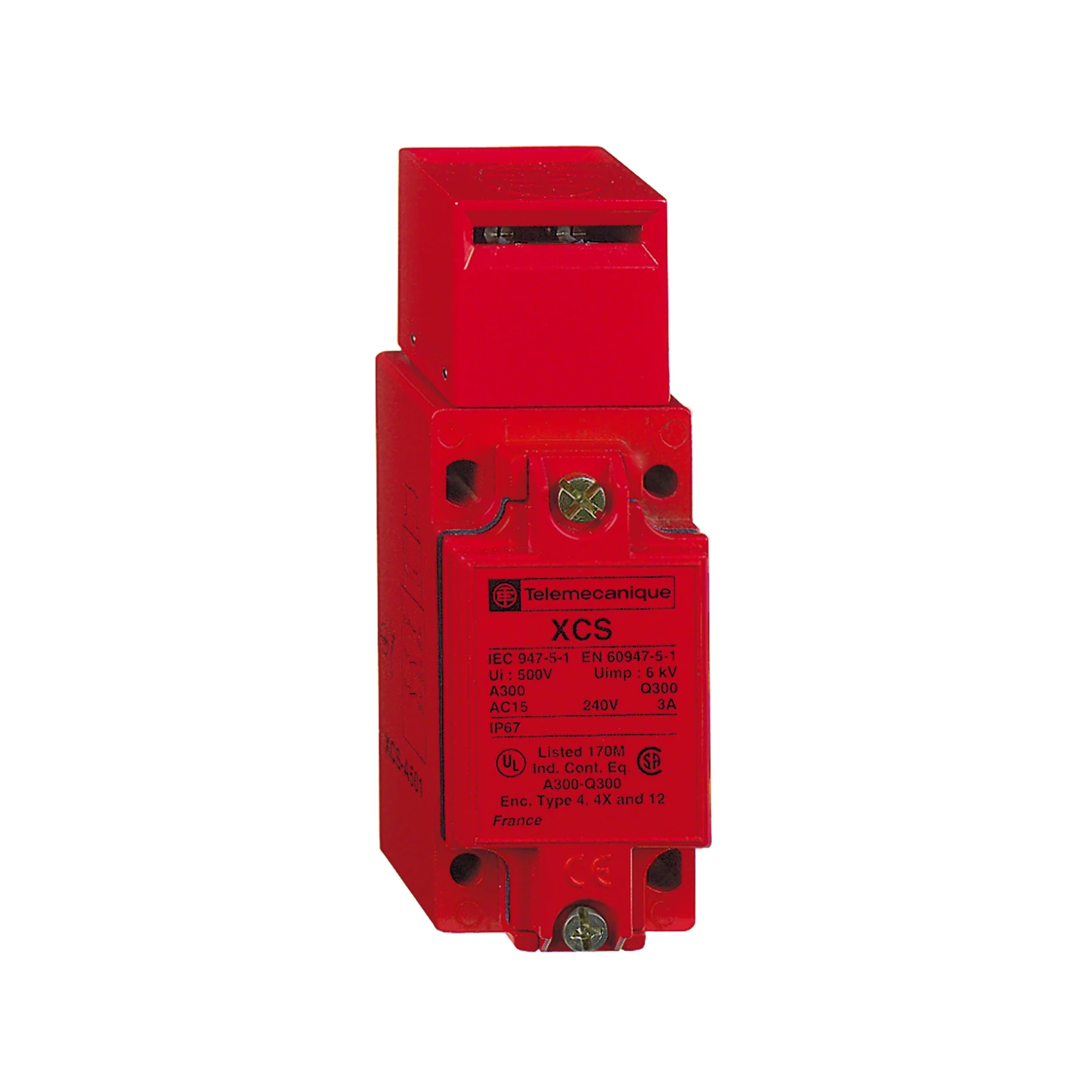

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing an easier installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a -door-open machine stop- control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators. · · · This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. · · This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing an easier installation. · · Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. · · When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. · · It simply ensures a “door-open machine stop” control on your machine, with maximal reliability. · · wall mounting · · IP66 · · IK10 · · Corrosion Free
Out of stock
Description
Technical Specifications Technical Specifications Position switch with separate actuator Type of interface for safety communication None Explosion safety category for gas None Explosion safety category for dust None Interface type None Housing material Metal Type of electric connection Cable entry metrical Type of switching contact Slow-action switch Degree of protection (IP rating) IP67K Rated operation current Ie at AC-15, 230 V 3 A Length of sensor 44 mm Number of contacts as change-over contact 0 Rated operation current Ie at DC-13, 125 V 0.55 A Number of contacts as normally open contact 0 Height of sensor 114 mm Width sensor 40 mm Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V 0.27 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 24 V – A Number of contacts as normally closed contact 3 Rated operation current Ie at AC-15, 125 V 6 A Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes Forced opening Yes With status indication No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188085
