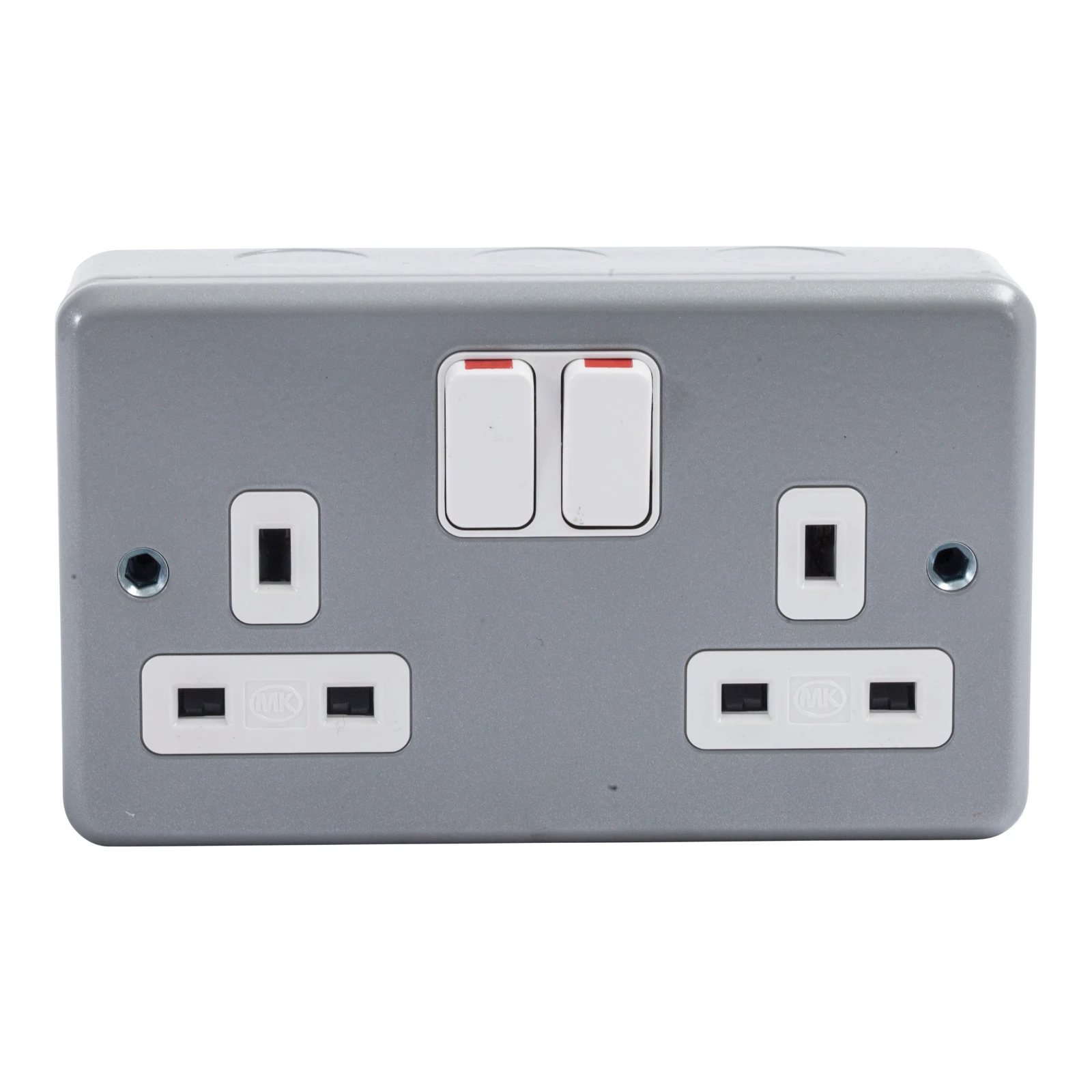

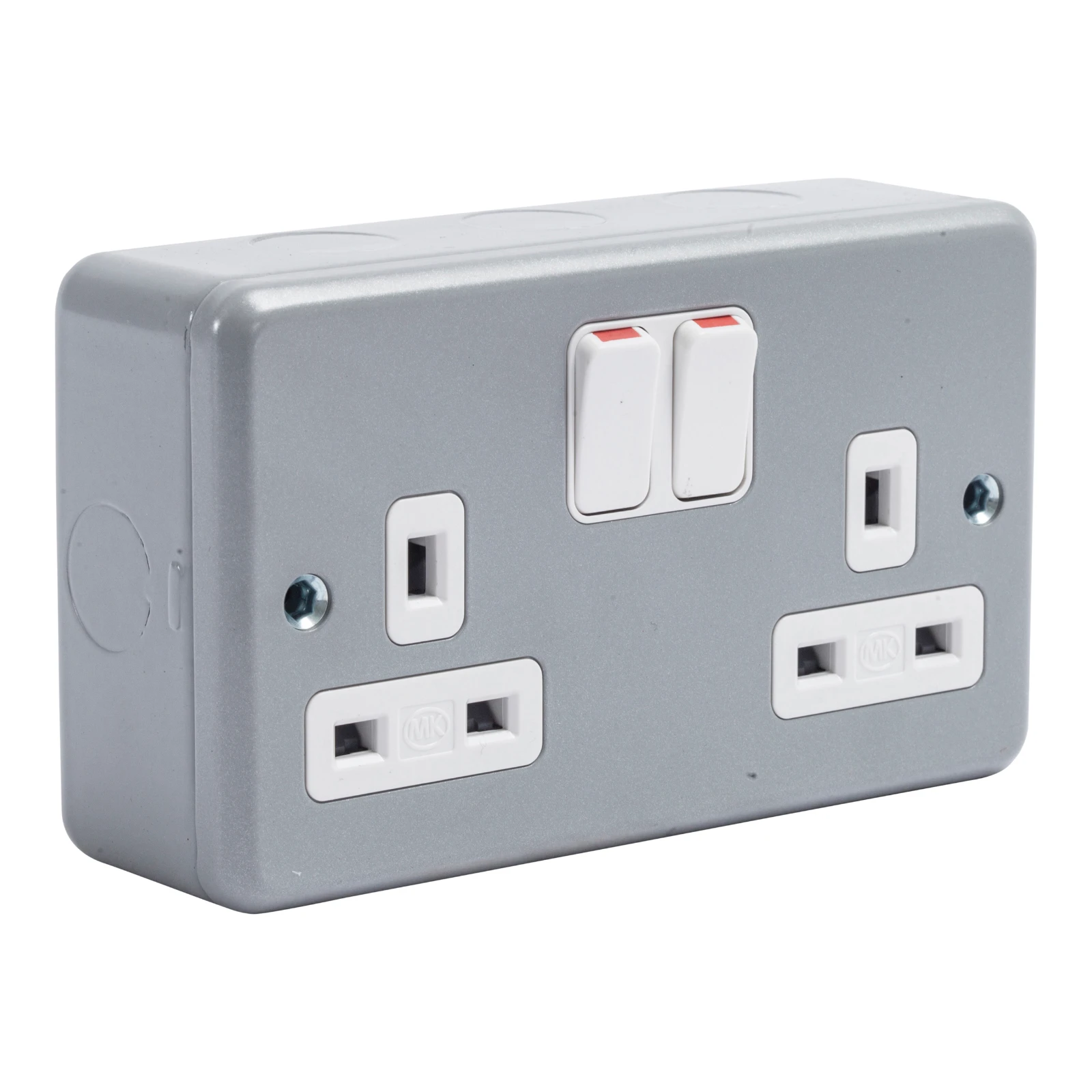

MK Electric Socket 2 Gang Switched Double Pole Surface 13A Aluminium
£27.88 Incl. VAT

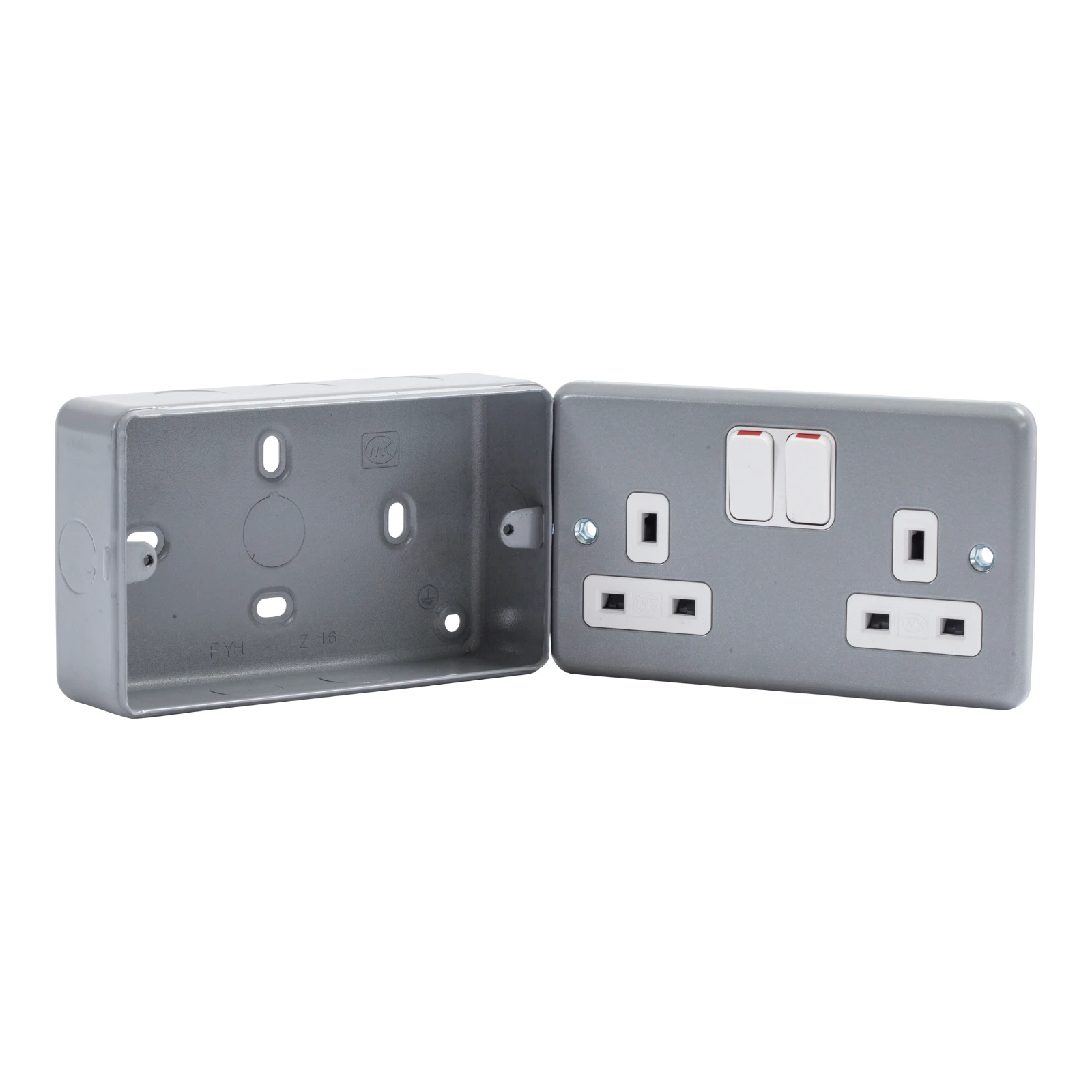

The MK K2946ALM is an Aluminium, 13A, 2 Gang, Double Pole Socket. It comes complete with a back box with 8 20mm knockouts, three in the top, two in the bottom, one in either side and one in base. It has double pole switching (neutral makes first, breaks last). The MK Metalclad Plus Range is made from heavy gauge steel making it a very tough set of products. This means they are ideal use in factories, workshops, garages and sheds. Earth terminals are fitted in the back box. · · · Current rating 13A · · No. of poles 2 · · No. of poles 2 · · Switched/ Unswitched: Switched · · Mounting type Surface · · Voltage 230V · · Fixing Centres 120.6mm · · Frequency 50/60 Hz · · Terminal Capacity: 2×6.0mm stranded (max)
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Multi combination switch/push button/socket outlet Type of fastening Mounting with screw Surface finish Matt Colour Grey Mounting method Surface mounted Mounting direction Vertical Material Metal Rated current 13 A Nominal voltage 230 V Number of poles 2 Depth of device 25 mm Width of device 146 mm Height of device 86 mm · Technical Data Sheet – Click to Download
