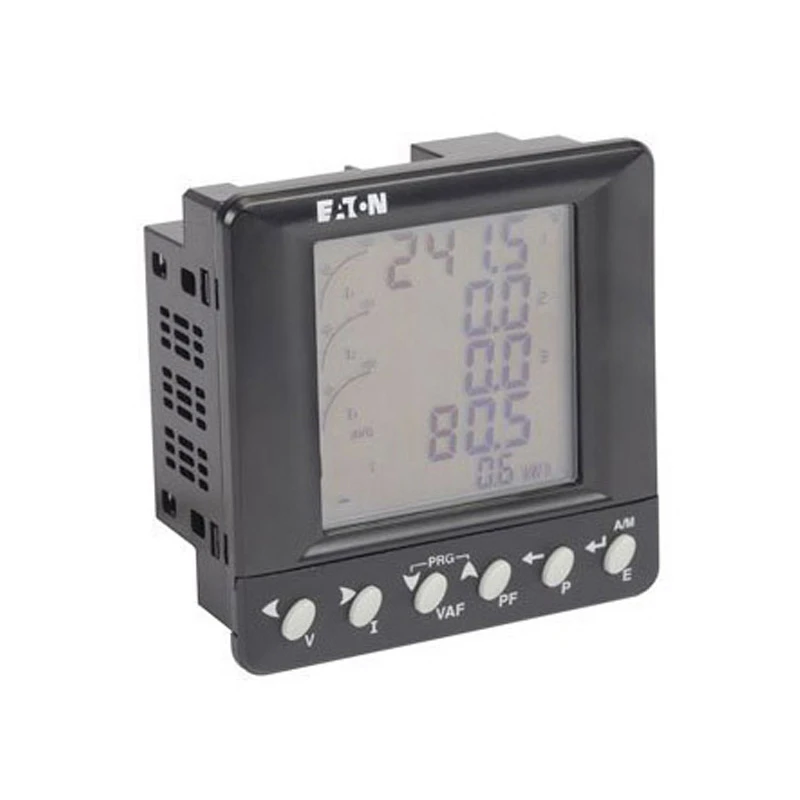

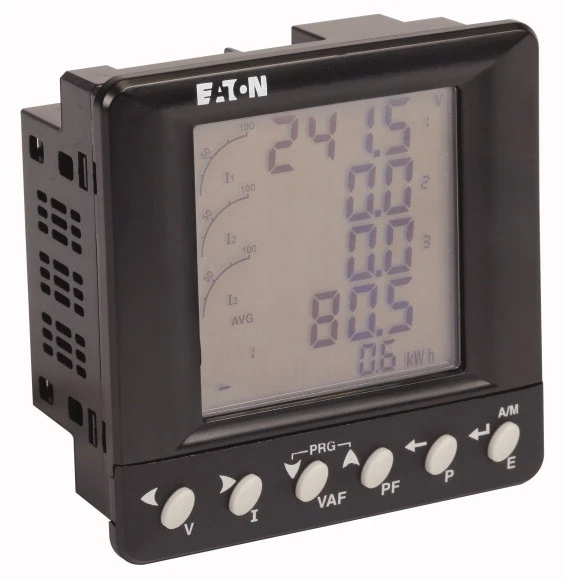

Meter Multifunction Din96 Pulsed+Modbus Output

Description

Technical Specifications  Technical Specifications Multifunction measuring instrument Accuracy class active energy according to IEC 62053-22 0.1S Accuracy class reactive energy according to IEC 62053-23 0.1S Degree of protection (IP), front side IP40 Display LCD Voltage type of supply voltage AC Width 99 mm Display resolution (vertical) 0 px Nominal current (In) – A Display resolution (horizontal) 0 px Sampling frequency 19200 Hz Number of voltage measurement inputs 4 Number of current measurement inputs 3 Number of digital outputs 2 Number of analogue outputs 3 Height 90.5 mm Number of digital inputs 1 Ethernet-connections 0 Depth 55 mm Max. current (Imax) – A Number of analogue inputs 3 Supply voltage AC 50 Hz 100 – 240 V Connectable conductor cross section solid-core – mm² Supply voltage AC 60 Hz 415 – 415 V Supply voltage DC 0 – 0 V Measuring range for frequency 45 – 65 Hz Remote display No With Role Based Access Control (RBAC) No With communication interface RS-485 No Wth communication interface M-Bus No Supporting protocol for IEC 61850 Ethernet Yes Calibrated No Suitable for RJ plug No With communication interface KNX No Web server with HTTPS transfer protocol No Supporting protocol for OPC UA PubSub Yes With audit logging (audit log) Yes With firmware signature No With logging of security events (security event log) Yes Frequency meter Yes Measuring type load profile No Step angle (cos phi) No Effective power measurement device Yes Harmonics measurement No Apparent power No Measured value memory No Pulse counter Yes Power factor No Voltmeter No Ampere meter No Reactive power meter No Rotational speed meter No Supporting protocol for other bus systems Yes Supporting protocol for PROFINET IO No Supporting protocol for PROFIBUS No Supporting protocol for MODBUS Yes · Technical Data Sheet – Click to Download
