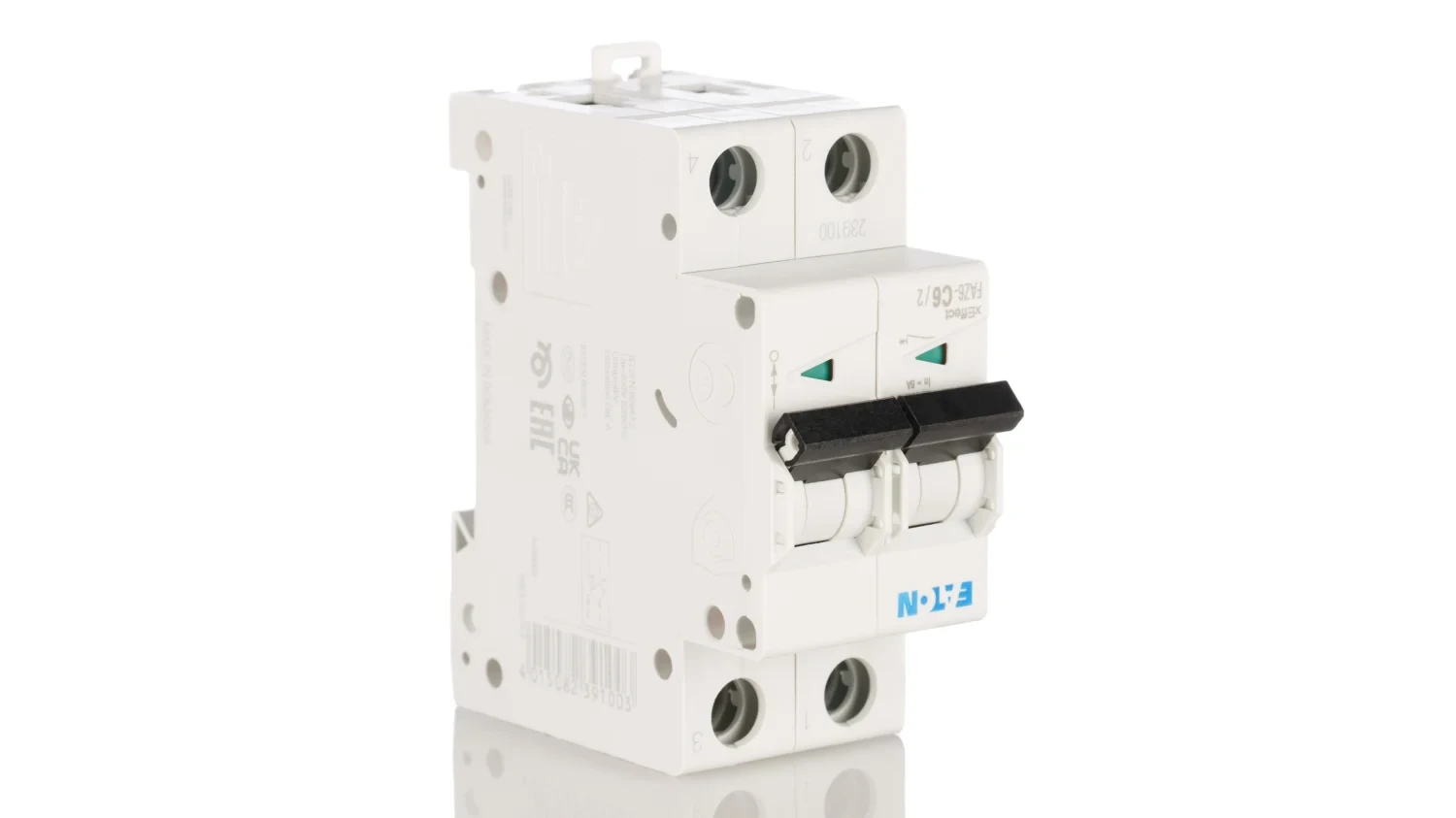

Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA
Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA
Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA - Image 2

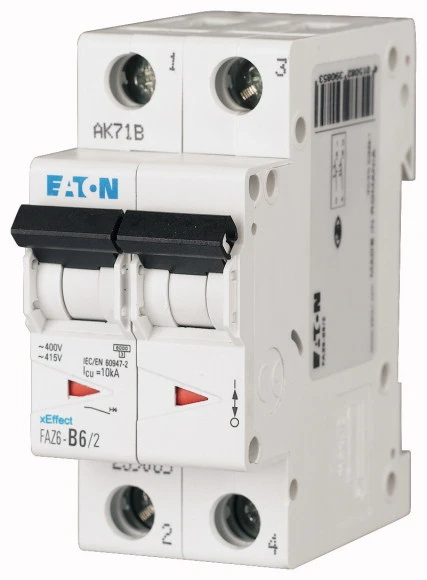

Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA - Image 3

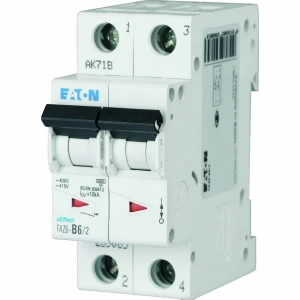

Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA - Image 4

Miniature Circuit Breaker (MCB) 6A 2 Pole Characteristic: Type C 6kA

£56.52 Incl. VAT

This is a 6-ampere, 2-pole, C-type miniature circuit breaker (MCB). It has a 230-400V AC voltage rating and a 6kA interrupting rating. Part of Eaton’s xEffect series of MCBs.This is a double-pole breaker, meaning that it protects one circuit at a time. It has a 6-ampere rating, which means that it can safely carry a current of up to 6 amperes. It also has a 6kA short-circuit rating, which means that it can safely interrupt a short-circuit current of up to 6 kA.This is a safe and reliable way to protect electrical circuits. It is a valuable tool for any electrician or facility manager. · · · Number Of Poles (Total) 2 · · Release Characteristic C · · Amperage Rating 6A · · Voltage Type Ac

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 239100 Categories: , , Brand: Part Number: 2500607235

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Degree of protection (IP rating) IP20 Recess depth 70.5 mm Power loss 2.4 W Number of protected poles 2 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated insulation voltage Ui 440 V Over voltage category 3 Current limiting class 3 Pollution degree 2 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated voltage 230 V Rated current 6 A Width in number of modular spacings 2 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 75 °C Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation No Additional equipment possible Yes · Technical Data Sheet – Click to Download
