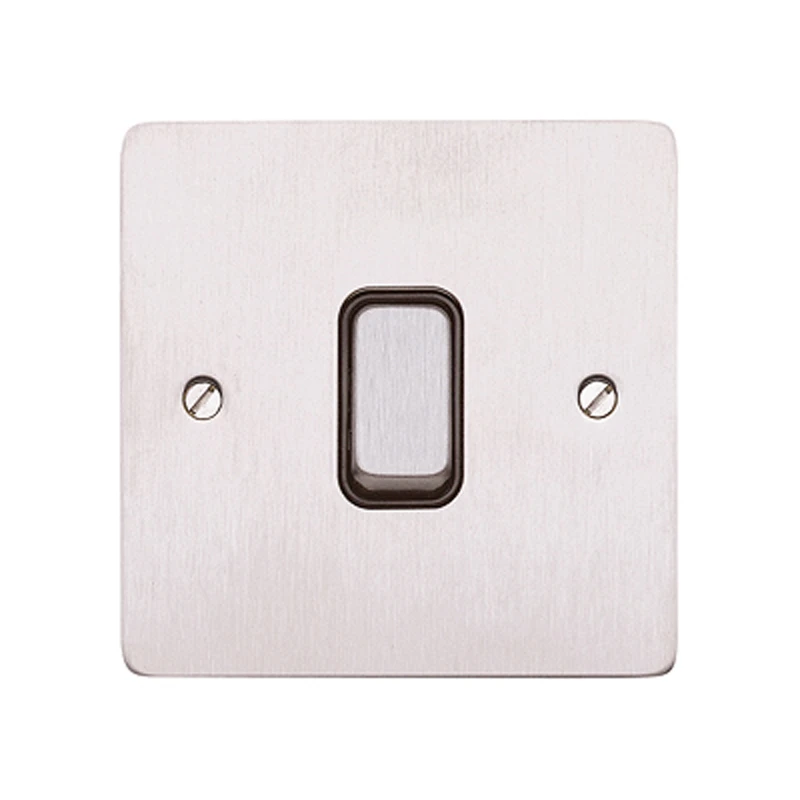

MK Electric Switch 1 Gang 2Way Single Pole 20A Brushed Stainless Steel Black Inserts

MK Electric Switch 1 Gang 2Way Single Pole 20A Brushed Stainless Steel Black Inserts

£27.78 Incl. VAT

Two way switches can be wired as one or two way, 3mm switch contact gap, Positive switch action, Top access, Backed out and captive terminal screws, An earth terminal is provided attached to rear of product, These switches do not have to be derated when used with fluorescent or inductive loads · · · Colour: Brushed Stainless Steel, Material: Stainless Steel, Finish: Brushed, Insert Colour: Black · · Current Rating: 20A, Voltage Rating: 250V AC, Frequency: 50Hz · · Height: 86mm, Width: 86mm, Fixing Centre: 60.3mm · · Mounting Type: Flush · · Number of Poles: Single Pole · · Terminal Capacity: 2 x 6mm² (Stranded) · · Switched Unswitched: Switched · · With Neon: Without Neon · · IP Rating: IP4X · · Number of Gangs: Single Gang, Number of Ways: Two Way

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: K14371BSSB Categories: , , Brand: Product Code: 2500087609

Description

Technical Specifications  Technical Specifications Switch Assembly Basic unit Wiring system Two-way switch Mounting method Flush mounted Material Metal Colour of rocker/switch operator Stainless steel Material qualifier Stainless steel Number of rockers/gangs 1 Colour Stainless steel Rated current 20 A · Technical Data Sheet – Click to Download
