Modular Smart Relay Zelio Logic 10 I O 100-240V AC Clock Display
£207.47 Incl. VAT

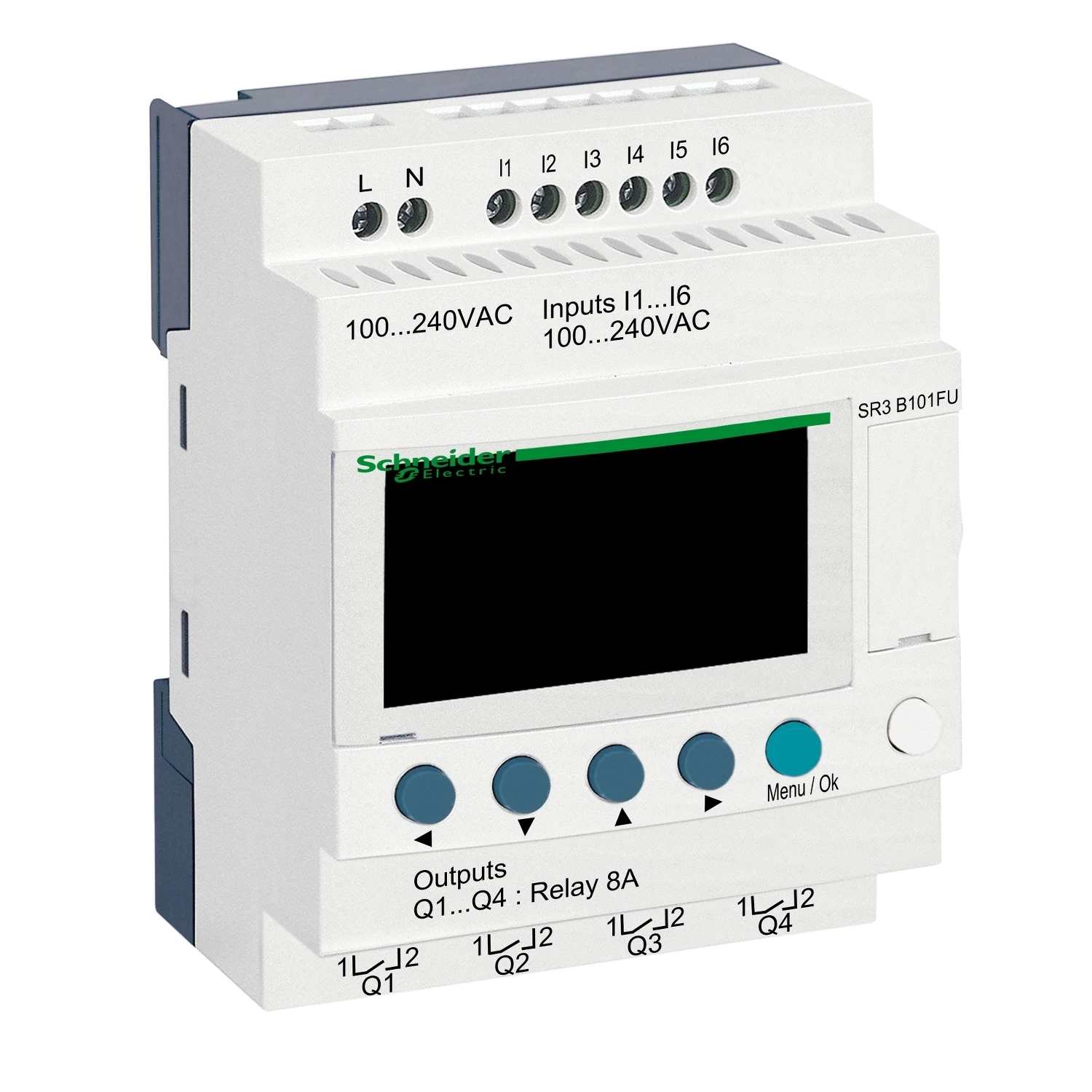

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 10 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. · · · This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. · · It has 10 inputs / outputs with screw-clamp terminals. · · It has compact design, allowing installation on DIN rail. · · It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. · · Its simple ladder programming makes it adapted for non-specialists.
Out of stock
Description
Technical Specifications Technical Specifications Logic module Number of digital inputs 6 Number of digital outputs 4 Width 71.2 mm Number of HW-interfaces industrial Ethernet 0 Number of analogue outputs 0 Number of analogue inputs 0 Switching current 8 A Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-485 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces USB 0 Number of HW-interfaces Wireless 0 Supply voltage DC 0 – 0 V Depth 59.5 mm Height 90 mm Number of HW-interfaces PROFINET 0 Number of HW-interfaces other 1 Number of HW-interfaces RS-232 1 Number of HW-interfaces parallel 0 Supply voltage AC 50 Hz 100 – 240 V Supply voltage AC 60 Hz 100 – 240 V Front built-in possible Yes Expansion device No With relay output Yes Basic device Yes Rack-assembly possible No Wall mounting/direct mounting Yes Radio standard UMTS No Radio standard GPRS No Radio standard GSM No IO link master No Rail mounting possible Yes Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Redundancy No Radio standard WLAN 802.11 No Radio standard Bluetooth No Supporting protocol for other bus systems No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for TCP/IP No With optical interface No Supporting protocol for PROFIBUS No Display Yes Expandable Yes Suitable for safety functions No Supporting protocol for Foundation Fieldbus No With timer Yes Supporting protocol for PROFINET IO No Supporting protocol for ASI No Supporting protocol for SUCONET No Supporting protocol for LON No Supporting protocol for PROFINET CBA No Supporting protocol for SERCOS No Supporting protocol for EtherNet/IP No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for KNX No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192633
