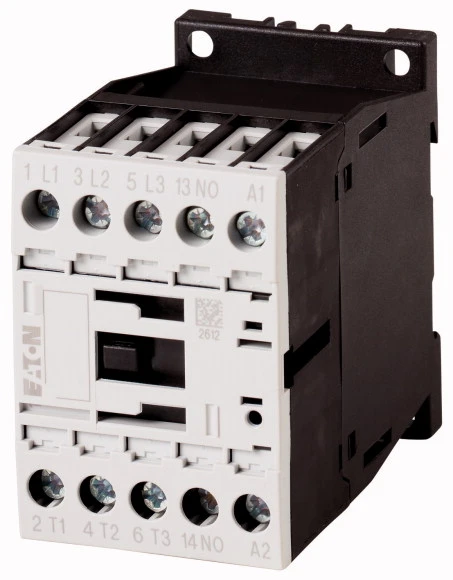

Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals
Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals

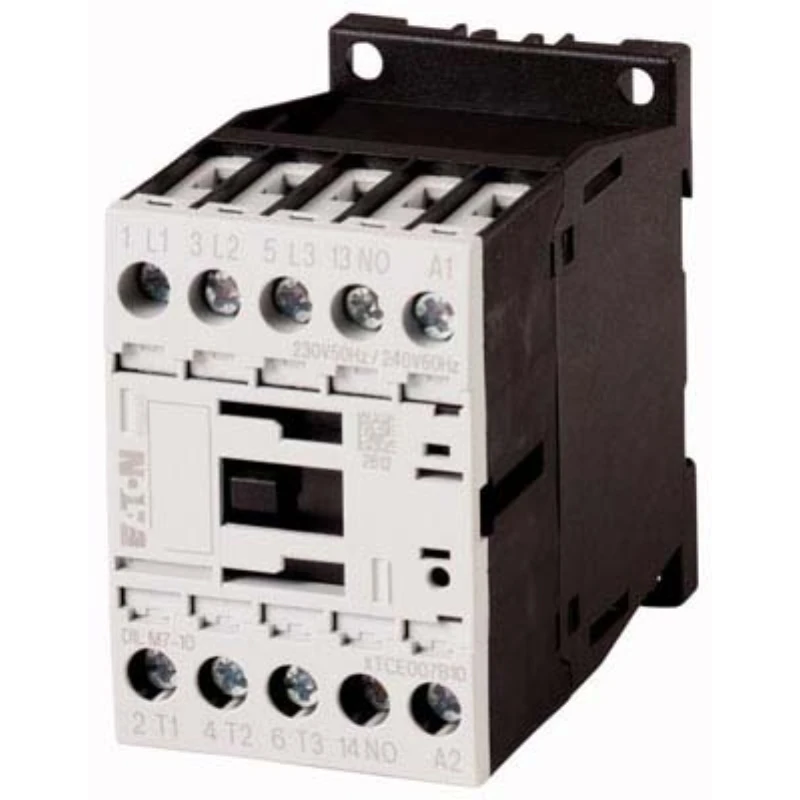

Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals - Image 2
Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals - Image 3
Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals - Image 4

Eaton Moeller Series Dilm Contactor 3 Pole 380 V 400 V 4 Kw 1 N/O 48 V Dc Dc Operation Screw Terminals

£60.40 Incl. VAT

Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 9 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 – 60 Hz Open at 40 °C: Ith =Ie= 22 A, enclosed: Ith= 18 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 50 A, enclosed: Ith= 45 A, Max. rating for three-phase motors, 50 – 60 Hz AC-3 220 V 230 V: P= 2.5 kW, 380 V 400 V: P= 4 kW, 660 V 690 V: P= 4.5 kW, Max. rating for three-phase motors, 50 – 60 Hz AC-4 220 V 230 V: P= 1.5 kW, 380 V 400 V: P= 2.5 kW, 660 V 690 V: P= 3.6 kW, Can be combined with auxiliary contact: DILM32-XHI.., DILA-XHI(V).., Contacts N/O = Normally open: 1 N/O, Instructions: Contacts to EN 50?012., Integrated varistor suppressor circuit., Voltage AC/DC: DC operation · · · Fitted With: Varistor suppressor circuit · · Number of poles: Three pole · · Frame size FS1 · · Application contactors for motors

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DILM9-10(24VDC) Categories: , , , Brand: Product Code: 2500157031

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating DC Rated operation power NEMA 3.7 kW Rated operation current Ie at AC-4, 400 V 6 A Rated operation power at AC-4, 400 V 2.5 kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-1, 400 V 22 A Rated operation current Ie at AC-3, 400 V 9 A Number of auxiliary contacts as normally closed contact 0 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 4 kW Number of normally closed contacts as main contact 0 Rated control supply voltage at AC 50 Hz 380 – 380 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 24 – 24 V Modular version No · Technical Data Sheet – Click to Download
