MPCB GV Triple Pole 37-50A 50Ka Thermal Magnetic Rotary Knob
MPCB GV Triple Pole 37-50A 50Ka Thermal Magnetic Rotary Knob
MPCB GV Triple Pole 37-50A 50Ka Thermal Magnetic Rotary Knob - Image 2

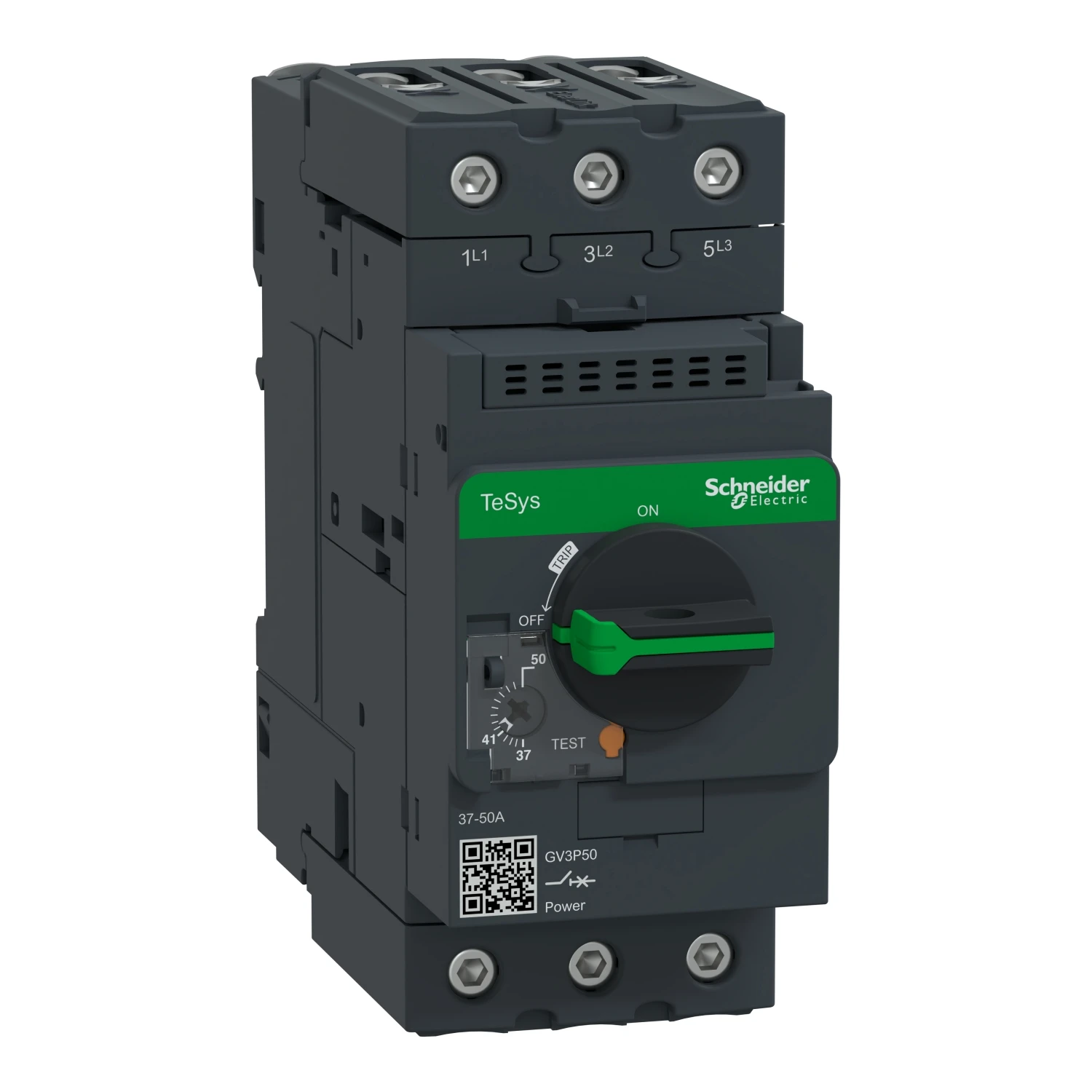

MPCB GV Triple Pole 37-50A 50Ka Thermal Magnetic Rotary Knob - Image 3

MPCB GV Triple Pole 37-50A 50Ka Thermal Magnetic Rotary Knob

£260.17 Incl. VAT

Schneider Electric GV3P50 3 Pole 50A TeSys GV3 circuit breaker with thermal-magnetic trip unit technology. It features AC network, 50/60Hz conforming to IEC 60947-4-1 network frequency, rotary knob control. It supports 12kA at 500V AC 50/60Hz, 6kA at 690V AC 50/60Hz, 50kA at 440V AC 50/60Hz, 50kA at 400/415V AC 50/60Hz and 100kA at 230/240V AC 50/60Hz breaking capacity. It also supports by clips and screws mounting mode, plate rail mounting support, horizontal vertical mounting position. · · · TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 37-50A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. · · Connection by Everlink BTR screw terminals. · · Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. · · Power Rating: 22kW · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · Width: 55mm · · Weight: 960g · · Capacity: 50kA · · Depth: 136mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV3P50 Categories: , , Brand: Part Number: 2500237286

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 55 mm Depth 136 mm Height 132 mm Rated short-circuit breaking capacity Icu at 400 V, AC 50 kA Rated operation power at AC-3, 230 V 15 kW Rated operation power at AC-3, 400 V 22 kW Rated permanent current Iu 50 A Number of poles 3 Adjustment range undelayed short-circuit release 700 – 700 A Overload release current setting 37 – 50 A Rated operating voltage 0 – 690 V With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188195
