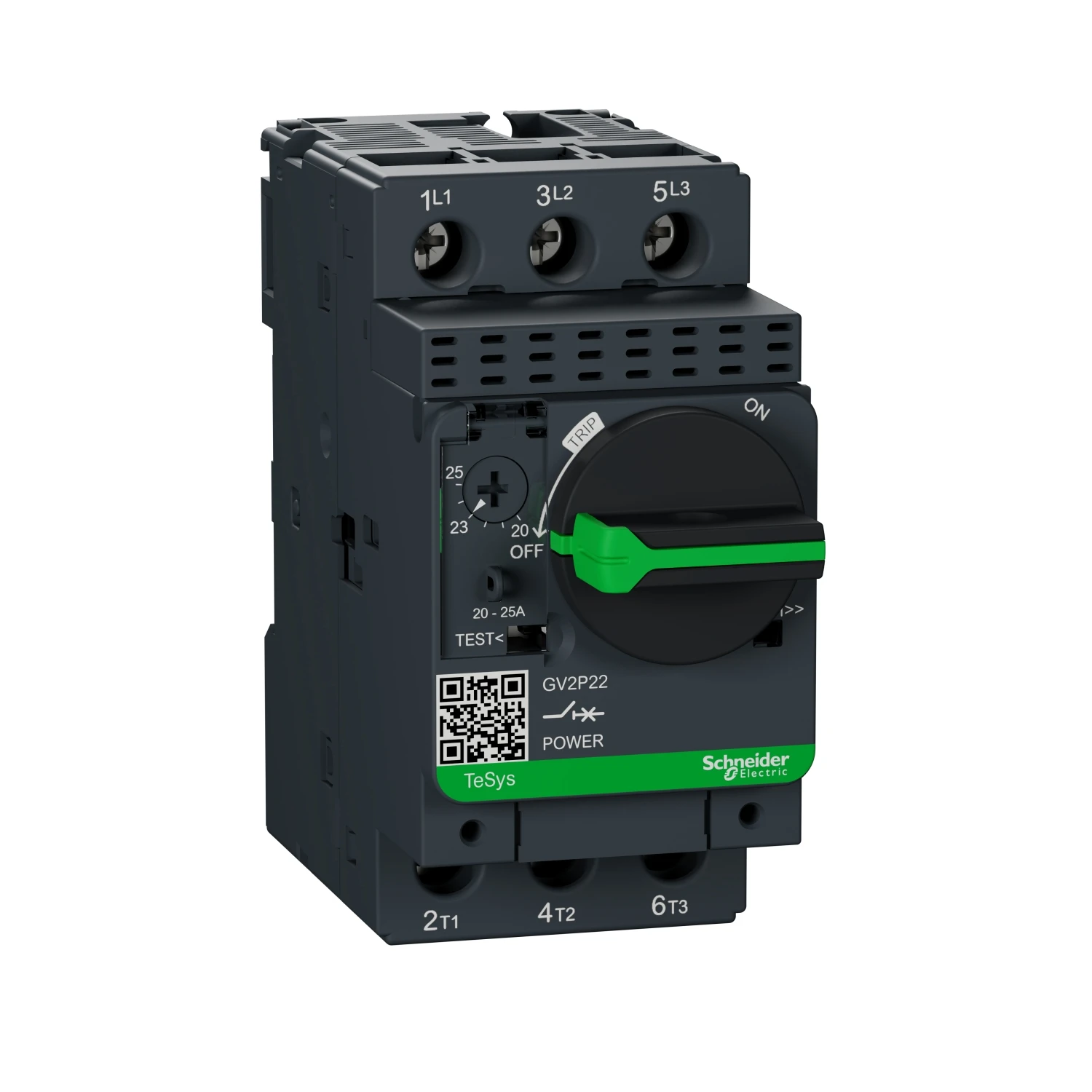

MPCB GV2P Triple Pole 20-25A 50Ka Thermal Magnetic Rotary Knob
£193.39 Incl. VAT
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. · · Depth: 97mm · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Out of stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Depth 97 mm Height 89 mm Rated operation power at AC-3, 230 V 5.5 kW Rated short-circuit breaking capacity Icu at 400 V, AC 50 kA Rated operation power at AC-3, 400 V 11 kW Rated permanent current Iu 25 A Number of poles 3 Adjustment range undelayed short-circuit release 327 – 327 A Overload release current setting 20 – 25 A Rated operating voltage 0 – 690 V With integrated auxiliary switch No With thermal overload protection Yes With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194
