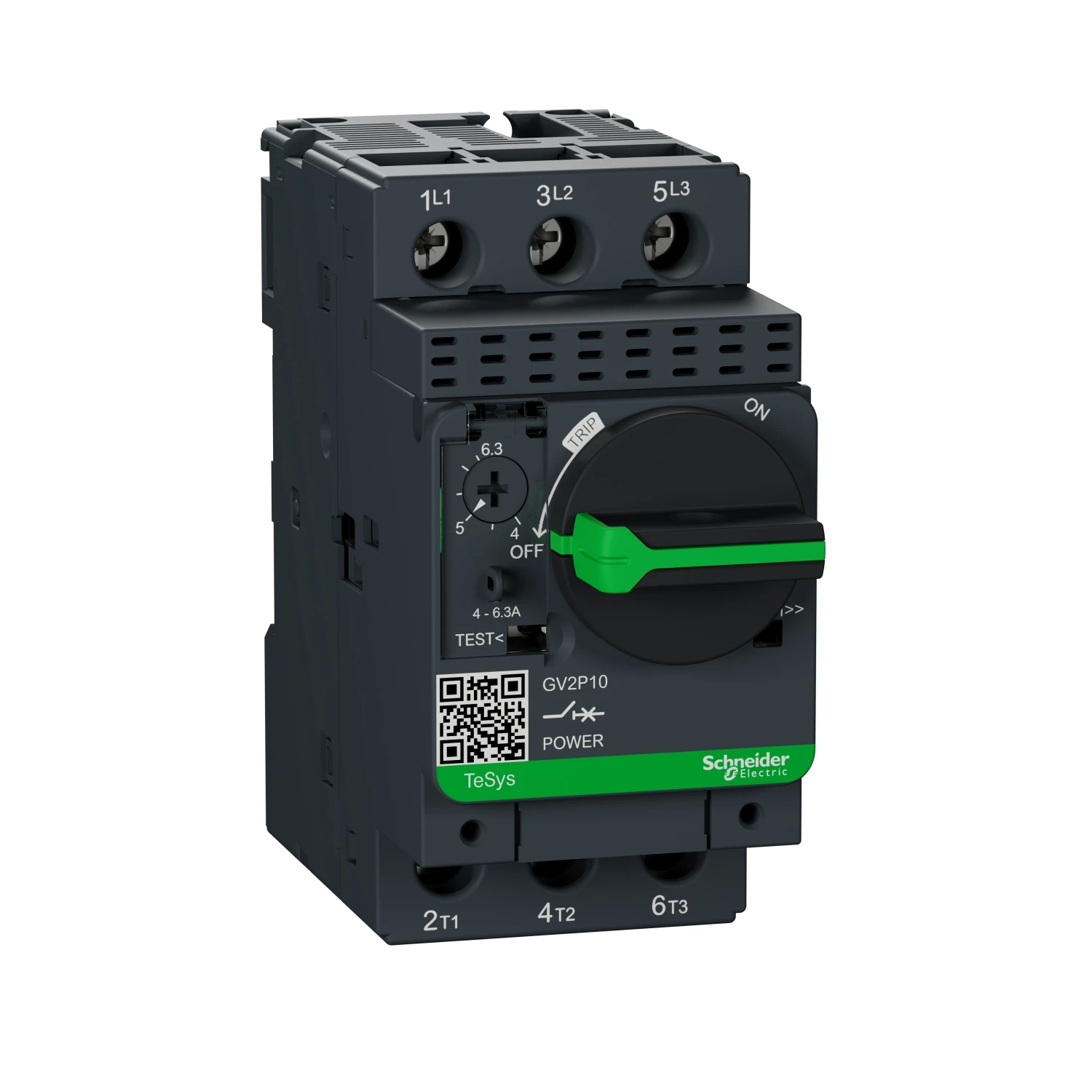

MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob
MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob
MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob - Image 2
MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob - Image 3
MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob - Image 4

MPCB GV2P Triple Pole 4-6.3A 100Ka Thermal Magnetic Rotary Knob

£133.57 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. · · Connection by screw clamp terminals. · · Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. · · Fixing mode: Clipped on 35mm symmetrical DIN rail · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm on screw terminals · · Mechanical/Electrical durability: 100000 cycles · · Ambient temperature: -20°C to 60°C · · IP20/IK04 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV2P10 Categories: , , Brand: Part Number: 2500043322

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45 mm Height 89 mm Rated operation power at AC-3, 400 V 2.2 kW Rated operation power at AC-3, 230 V 1.5 kW Rated permanent current Iu 6.3 A Depth 97 mm Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Adjustment range undelayed short-circuit release 78 – 78 A Overload release current setting 4 – 6.3 A Rated operating voltage 0 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2200027
