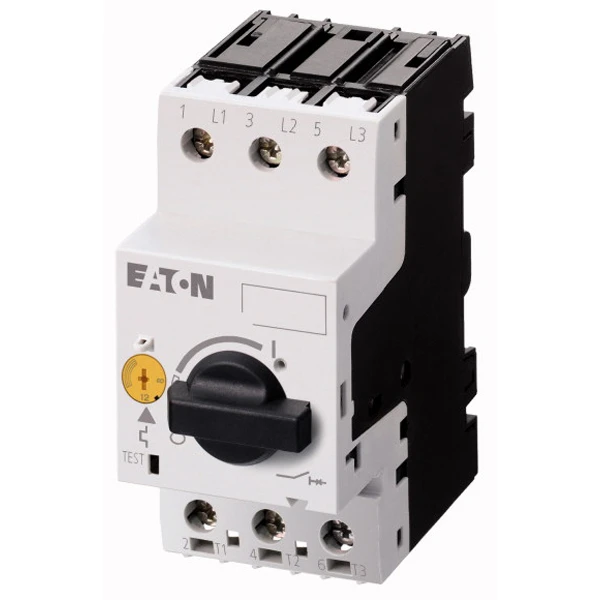

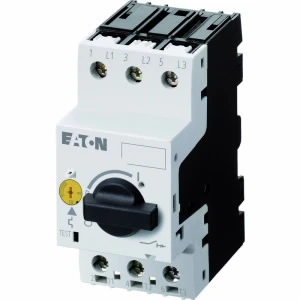

MPCB Y7- Tp 20A

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Type of control element Rotating button Switch off technique Thermomagnetic Degree of protection (IP rating) IP20 Device construction Built-in device fixed built-in technique Type of electrical connection of main circuit Screw connection Width 45 mm Rated short-circuit breaking capacity Icu at 400 V, AC 50 kA Depth 76 mm Number of poles 3 Rated operation power at AC-3, 400 V 9 kW Rated operation power at AC-3, 230 V 5.5 kW Rated permanent current Iu 20 A Power loss 5.82 W Height 93 mm Rated operating voltage 690 – 690 V Overload release current setting 16 – 20 A Adjustment range undelayed short-circuit release 310 – 310 A Phase failure sensitive Yes With thermal overload protection No With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
