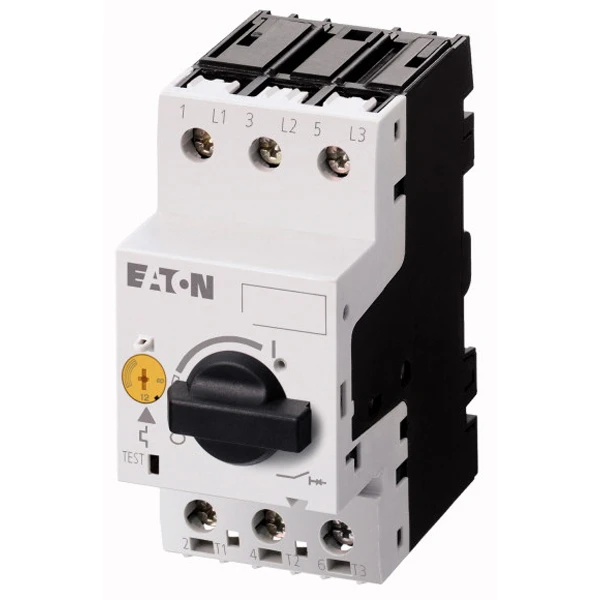

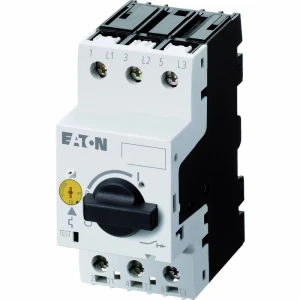

Mpcb Y7- Tp 4A

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Thermomagnetic Type of electrical connection of main circuit Screw connection Degree of protection (IP rating) IP20 Type of control element Rotating button Device construction Built-in device fixed built-in technique Width 45 mm Height 93 mm Rated short-circuit breaking capacity Icu at 400 V, AC 150 kA Rated operation power at AC-3, 230 V 0.75 kW Power loss 5.33 W Depth 76 mm Number of poles 3 Rated permanent current Iu 4 A Rated operation power at AC-3, 400 V 1.5 kW Rated operating voltage 690 – 690 V Overload release current setting 2.5 – 4 A Adjustment range undelayed short-circuit release 62 – 62 A With thermal overload protection No With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download
