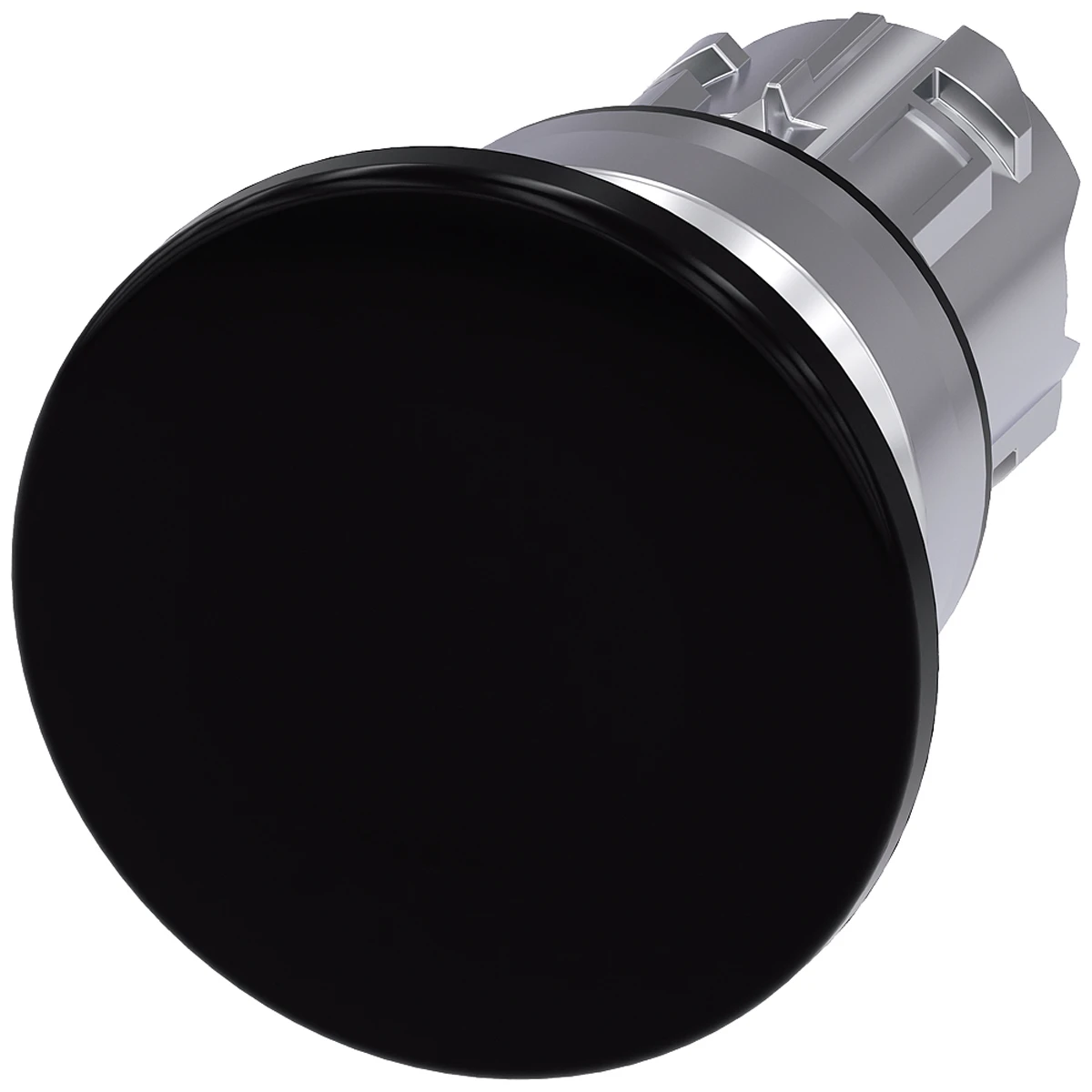

Mushroom Push Button 22mm Round Metal
Mushroom Push Button 22mm Round Metal
Mushroom Push Button 22mm Round Metal - Image 2
Mushroom Push Button 22mm Round Metal - Image 3

Mushroom Push Button 22mm Round Metal

£13.84 Incl. VAT

Siemens standard round mushroom pushbutton for emergency stop function made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 40mm diameter. · · · Manner of function: Momentary contact type · · Type of unlocking device: None · · Number of switching positions: 2 · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-1BD10-0AA0 Categories: , , Brand: Part Number: 1051118334

Description

Technical Specifications  Technical Specifications Front element for mushroom push-button Colour button Black Construction type lens Round Material front ring Metal Unlocking method Pull-release Type of button High Hole diameter 22.3 mm Diameter cap 40 mm Height opening 27.5 mm Width opening 40 mm Spring-return No Suitable for illumination No Suitable for emergency stop No Switching function latching No With front ring Yes · Technical Data Sheet – Click to Download
