Siemens Mushroom Push Button 22mm Round Plastic
£13.01 Incl. VAT

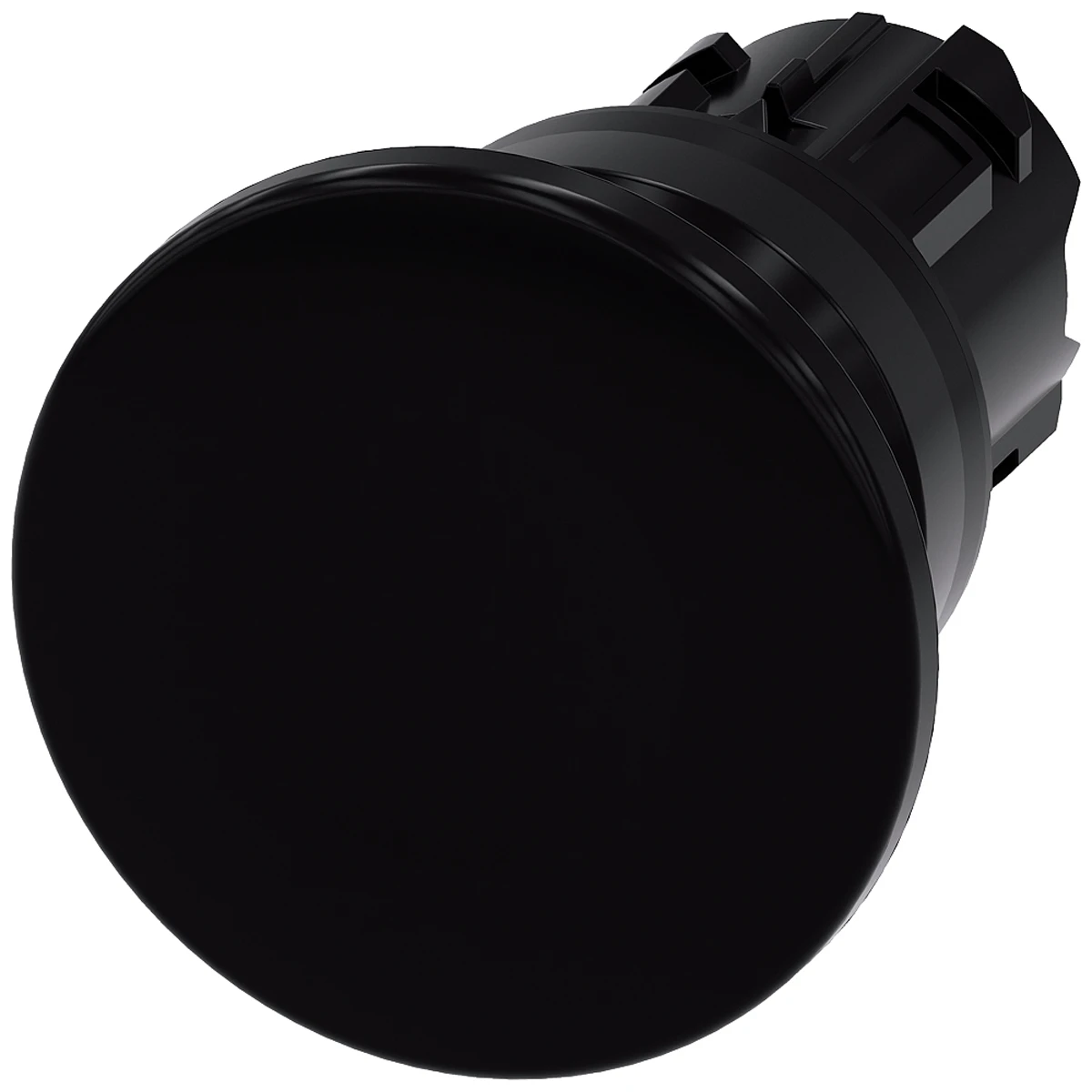

Siemens standard round mushroom pushbutton for emergency stop function made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 40mm diameter. · · · Manner of function: Momentary contact type · · Type of unlocking device: None · · Number of switching positions: 2 · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Description
Technical Specifications Technical Specifications Front element for mushroom push-button Material front ring Plastic Construction type lens Round Colour button Black Colour front ring Black Unlocking method Turn-release Hole diameter 22.3 mm Type of button High Height opening 27.5 mm Width opening 40 mm Diameter cap 40 mm Suitable for emergency stop No Switching function latching No Spring-return No Suitable for illumination No With front ring Yes · Technical Data Sheet – Click to Download
