MV-CS004-10UC – 4MP USB3.0 Industrial Camera – High-Speed Metal for Automation Inspection

Description

Product description

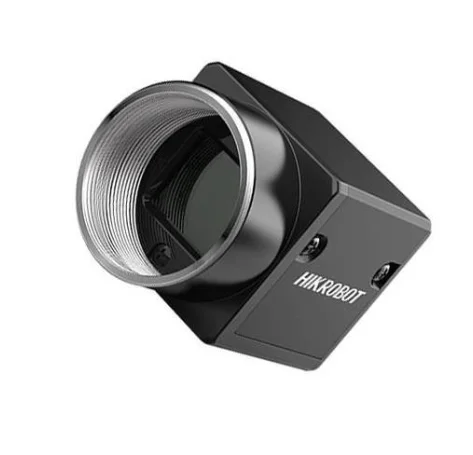

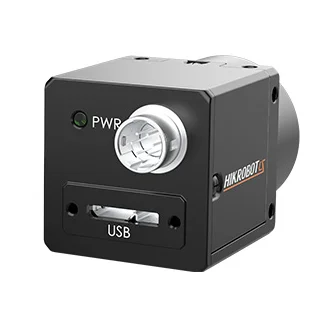

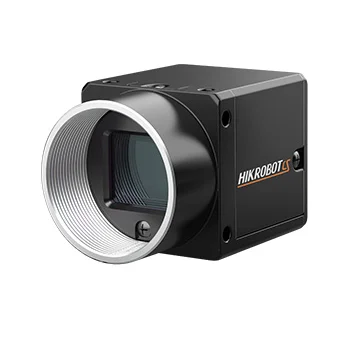

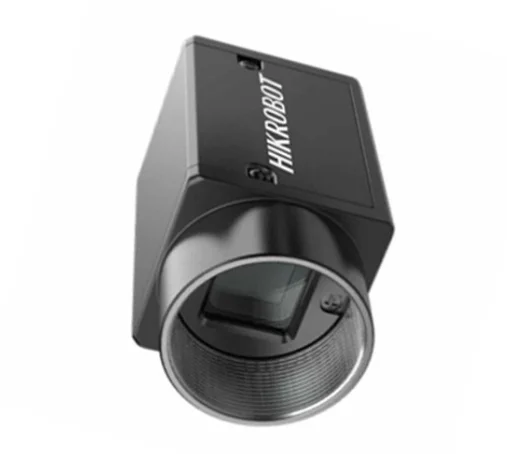

Product Description product name If you have any further questions, please don’t hesitate to contact us. photo Product Overview The Hikrobotics MV-CS004-10UC is a high-performance industrial USB3.0 camera optimized for precision machine vision applications. Equipped with a 1/2.9-inch CMOS sensor delivering 2592×1944 resolution (5 megapixels), it captures ultra-clear images at up to 24 frames per second. Housed in a rugged IP67-rated die-cast aluminum enclosure, it withstands dust, moisture, and temperatures from **–30°C to +60°C**. The camera features a C/CS-mount lens compatibility, global shutter for zero motion blur, and integrated 8-pin GPIO for industrial triggers/strobe control. Its corrosion-resistant stainless steel mounting points and M12 connectors ensure reliable deployment in harsh manufacturing environments, while a shock absorption design handles 100G mechanical impacts per IEC 60068-2-27 standards. Ideal for automated inspection systems, it offers plug-and-play operation with USB3 Vision protocol compliance. Critical Technical Specifications Imaging & Connectivity Performance: Sensor Type: Sony IMX265 CMOS (monochrome/color variants) Pixel Size: 2.9µm × 2.9µm Dynamic Range: 72.5 dB Shutter Type: Global shutter (1 µs – 60 sec exposure) Data Interface: USB 3.0 SuperSpeed (5Gbps), cable length ≤10m GPIO: 2 opto-isolated inputs, 2 transistor outputs (24V/0.5A) Spectral Range: 400-1,000nm (NIR-enhanced option) Power: 5V DC ±10% via USB (≤3W) Dimensions: 29×29×42mm (excluding connectors) Standards: CE, FCC, RoHS, USB3 Vision 1.1, GenICam Targeted Applications Vision-guided automation solutions: Pharmaceutical: Tablet counting and blister pack defect detection Automotive: Real-time weld seam inspection via 3D laser triangulation Electronics: SMT component placement validation (0.01mm accuracy) Food Processing: Foreign object detection on conveyor belts Logistics: Barcode reading at 5m/s line speeds Metrology: Gear tooth profile measurement (sub-pixel edge analysis) Printing: Color registration error monitoring Agricultural Sorting: Defect identification using multi-spectral imaging Competitive Advantages Operational superiorities for industrial environments: Near-Zero Latency: <1ms trigger-to-exposure response for high-speed production Shockproof Design: Vibration resistance up to 15G (IEC 60068-2-64) HDR Imaging: 120dB dynamic range via 3-exposure fusion (embedded ISP) EMI Immunity: Certified for operation near 15kV arc welders Dual OS Support: Native drivers for Windows/Linux (ROS/OpenCV compatible) Lens Agnosticism: Compatible with C/CS-mount lenses from 6-75mm focal lengths Lifecycle Management: 100,000+ hour MTBF with hot-swappable firmware Functional Capabilities Advanced imaging control features: Multi-ROI Scanning: Simultaneous inspection of 8 independent zones On-camera Processing: Defect classification via trained AI models Geometric dimensioning (circle/distance/angle measurements) Bayer-to-RGB conversion (10-bit output) Trigger Modes: Software/hardware triggering, burst mode, PWM-controlled strobes Auto Functions: Gain, exposure, white balance (region-of-interest adaptive) Data Protocols: GenICam-compliant parameter control + JSON metadata embedding Firmware Customization: User-defined LUTs, pixel remapping, and defect pixel correction Packaging & Shipping
