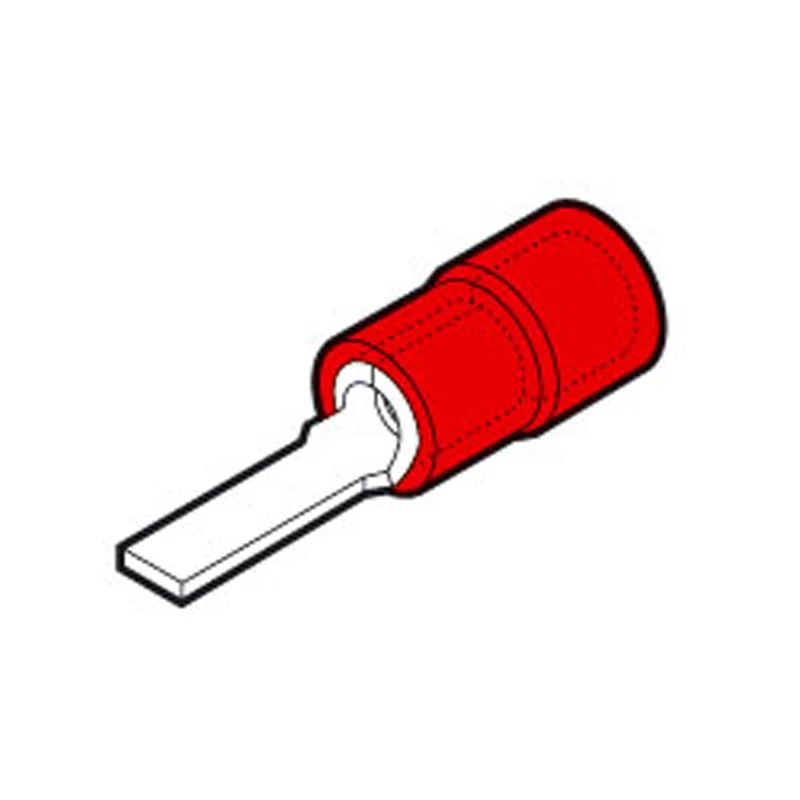

Newlec 0.25-1.5mm² Pre-Insulated Blade Terminal 16mm Red
Newlec 0.25-1.5mm² Pre-Insulated Blade Terminal 16mm Red
Newlec 0.25-1.5mm² Pre-Insulated Blade Terminal 16mm Red - Image 2

Newlec 0.25-1.5mm² Pre-Insulated Blade Terminal 16mm Red

Pack of 100

£23.46 Incl. VAT

0.25mm²-1.5mm² PVC insulated blade terminal 2.3mm x 17.2mm blade red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NLRBL16 Categories: , , Brand: Product Code: 1000008418

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Red Insulation Polyvinyl chloride (PVC) Nominal cross section 0.25 – 0.25 mm² Suitable for round conductors Yes Suitable for fine strand conductors Yes Suitable for solid cores Yes · Technical Data Sheet – Click to Download
