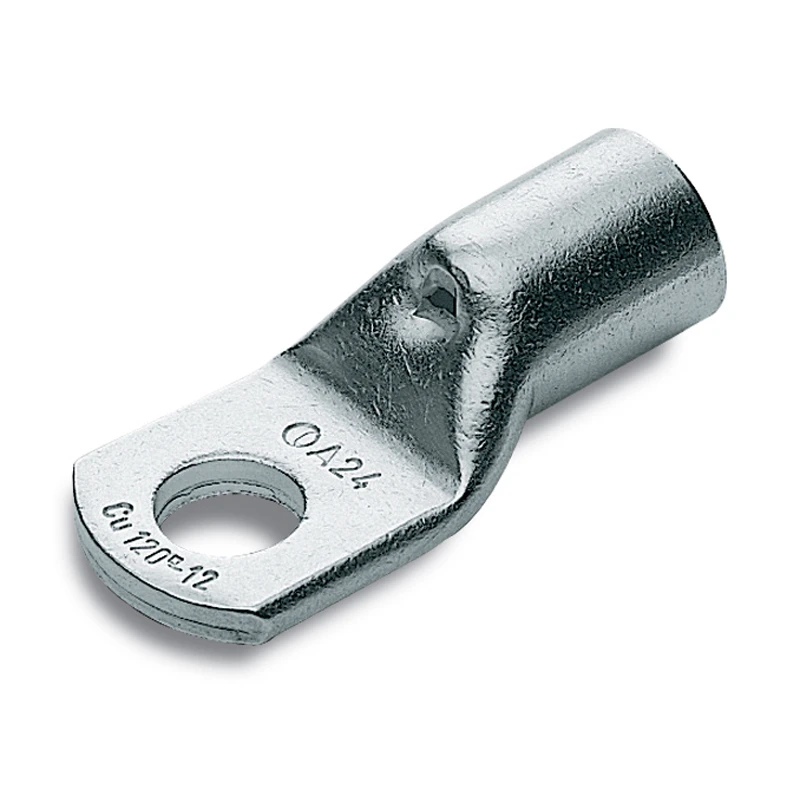

Newlec 35mm² M6 Copper Tube Lug
Newlec 35mm² M6 Copper Tube Lug
Newlec 35mm² M6 Copper Tube Lug - Image 2

Newlec 35mm² M6 Copper Tube Lug

Pack of 4

£6.46 Incl. VAT

35mm² Copper tube crimping lug M6 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NL35C-6 Categories: , , Brand: Product Code: 1000008219

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Nominal cross section 35 mm² Bolt dimension (metric) 6 Insulated No · Technical Data Sheet – Click to Download
