Newlec Armoured Cable Gland Pack Indoor BW40 C/W Locknut, Earth Tag+PVC Shroud (KIT1)
£16.28 Incl. VAT

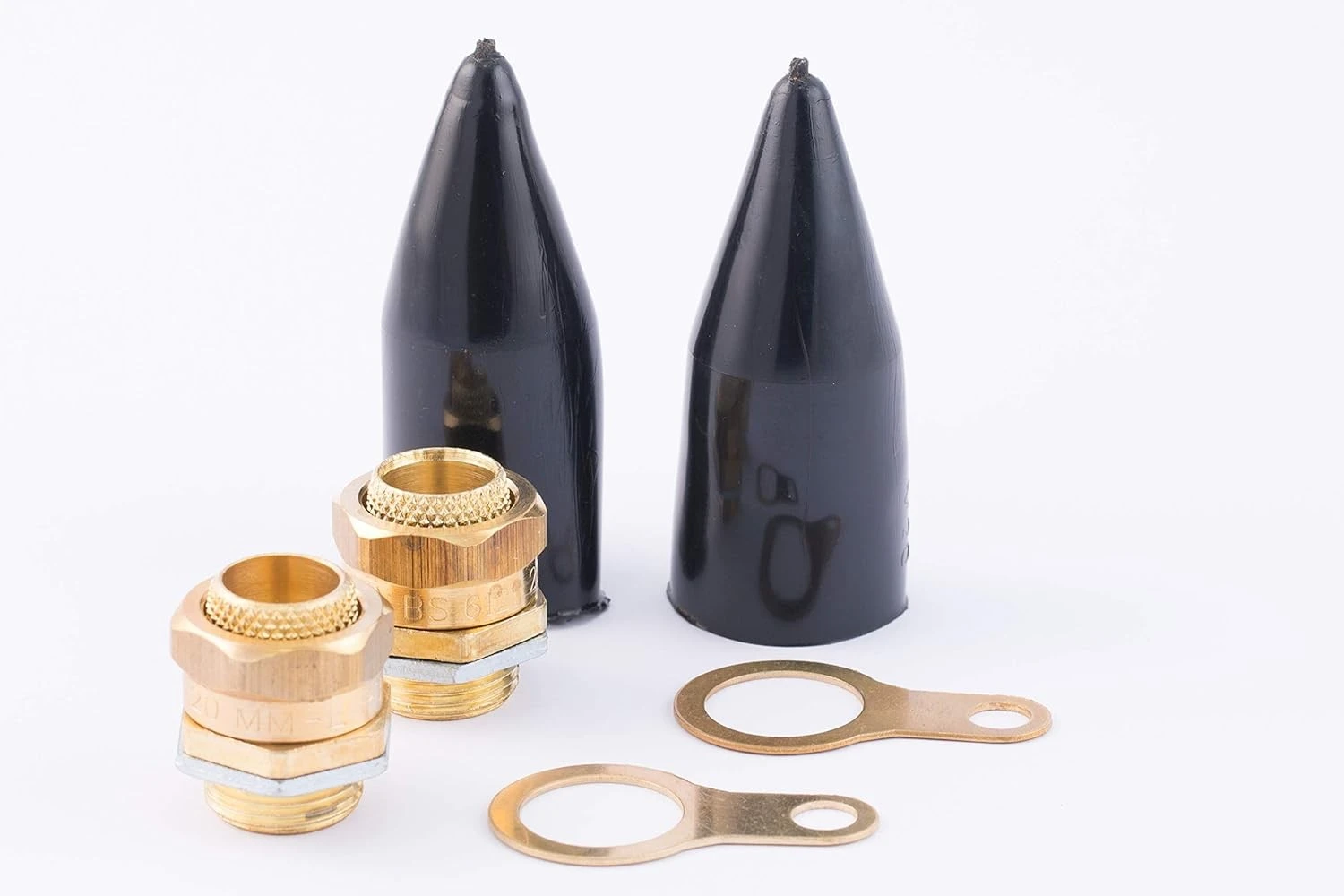

Cable gland kit includes brass gland, steel locknut, brass earth tag and PVC shroud. Ideal for use with all types of SWA cable (outdoor needing environmental seal on the cable outer sheath). Suitable for 42.4mm cable diameter. · · · CW glands conform to BSEN 50262 · · Tested to BS 6121 pt.1:1989 · · ISO 9001 · · For use with all types of SWA cable (outdoor providing environmental seal on the cable outer sheath) · · Provides mechanical cable retention and electrical continuity via armour wire termination · · CE marked for compliance to low voltage directive 72/73/EEC · · Kit includes: Brass gland, steel locknut, brass earth tag, PVC shroud · · Operating Temperature: -60°C to 200°C
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Cable gland Thread type Metric Model Straight Material Metal Nominal thread size metric/PG 40 Colour Black Locknut included Yes Suitable for cable outer diameter 42.4 – 42.4 mm Separable (split) screw gland Yes · Technical Data Sheet – Click to Download
