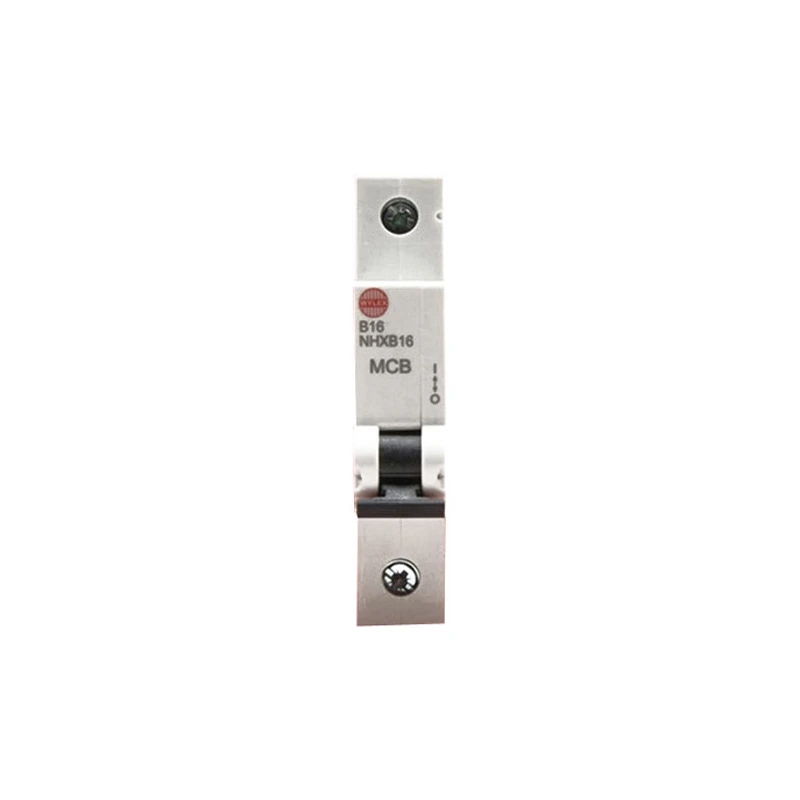

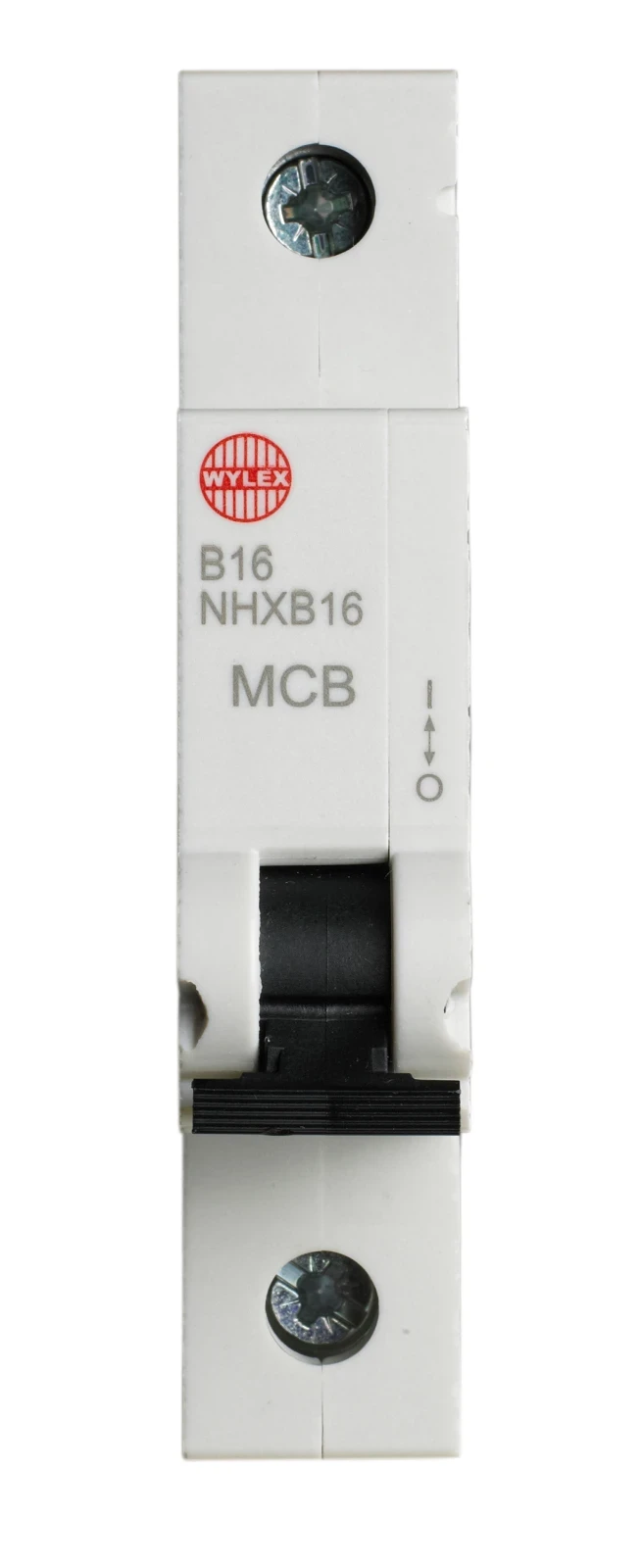

Nh System NHXB16 MCB SP Type B 1 Module 16A 6kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 16 A Rated voltage 230 V Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Number of protected poles 1 Current limiting class 3 Over voltage category 3 Additional equipment possible No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Width in number of modular spacings 1 Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
