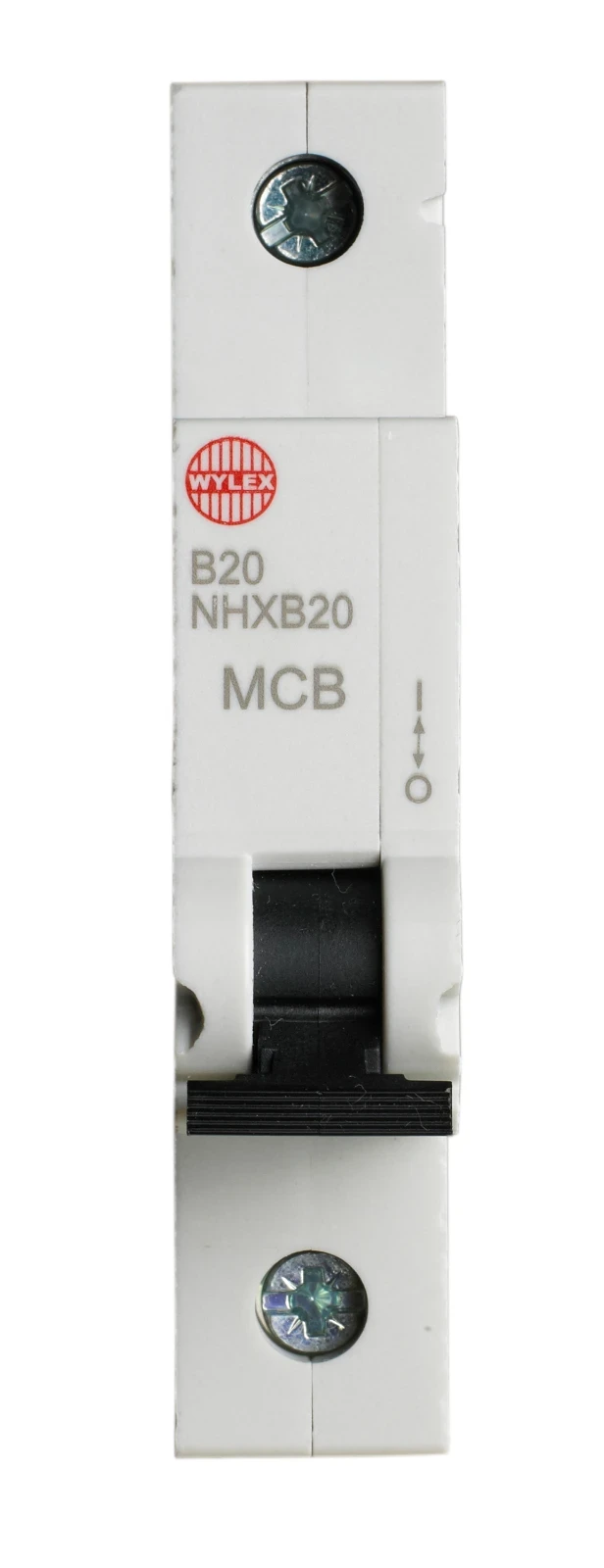

Wylex 20A SP Type B 6kA MCB
Wylex 20A SP Type B 6kA MCB

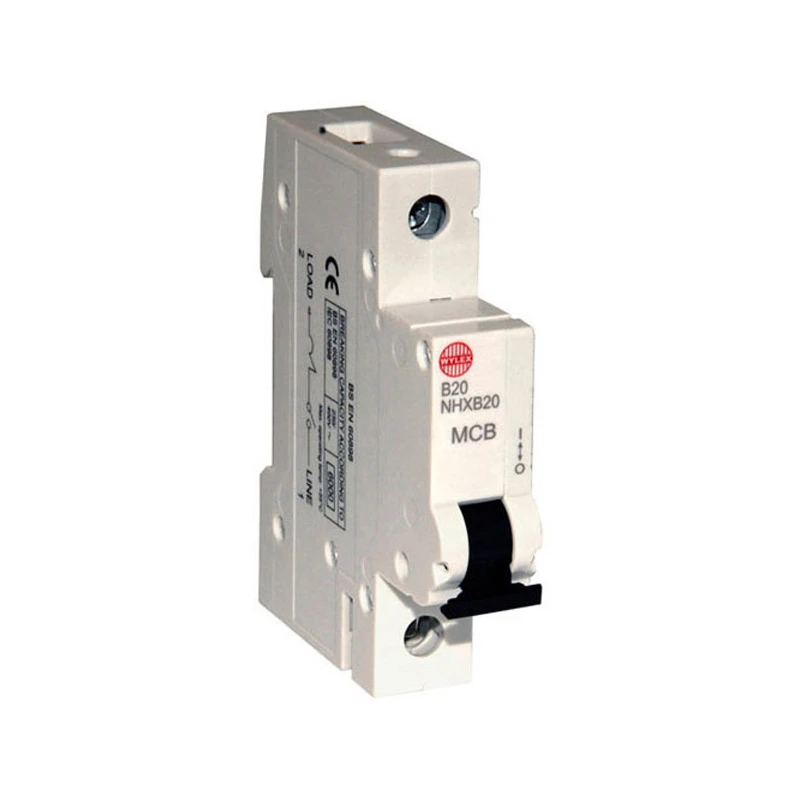

Wylex 20A SP Type B 6kA MCB - Image 2
Wylex 20A SP Type B 6kA MCB - Image 3

Wylex 20A SP Type B 6kA MCB

£6.31 Incl. VAT

These Miniature Circuit Breakers, are of the thermal-magnetic current limiting type. It is an easy to operate handle with a trip-free toggle mechanism, so even when the handle is held in the on position the MCB is free to trip. Adjacent thermal-magnetic · · · Single pole MCB, 20A B curve · · Energy limiting Class 3 · · Balcony terminal position · · Suitable for surface or wall mounting · · Short Circuit Rating: 6 kA · · For fixed balcony connection consumer units NM/NH · · Terminal capacity outgoing cable 0.75 to 25mm2 · · Voltage 240V

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXB20 Categories: , , Brand: Product Code: 2500351172

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Recess depth 73 mm Rated current 20 A Rated voltage 230 V Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Current limiting class 3 Rated insulation voltage Ui 400 V Over voltage category 3 Number of protected poles 1 Frequency 50 – 50 Hz Width in number of modular spacings 1 Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
