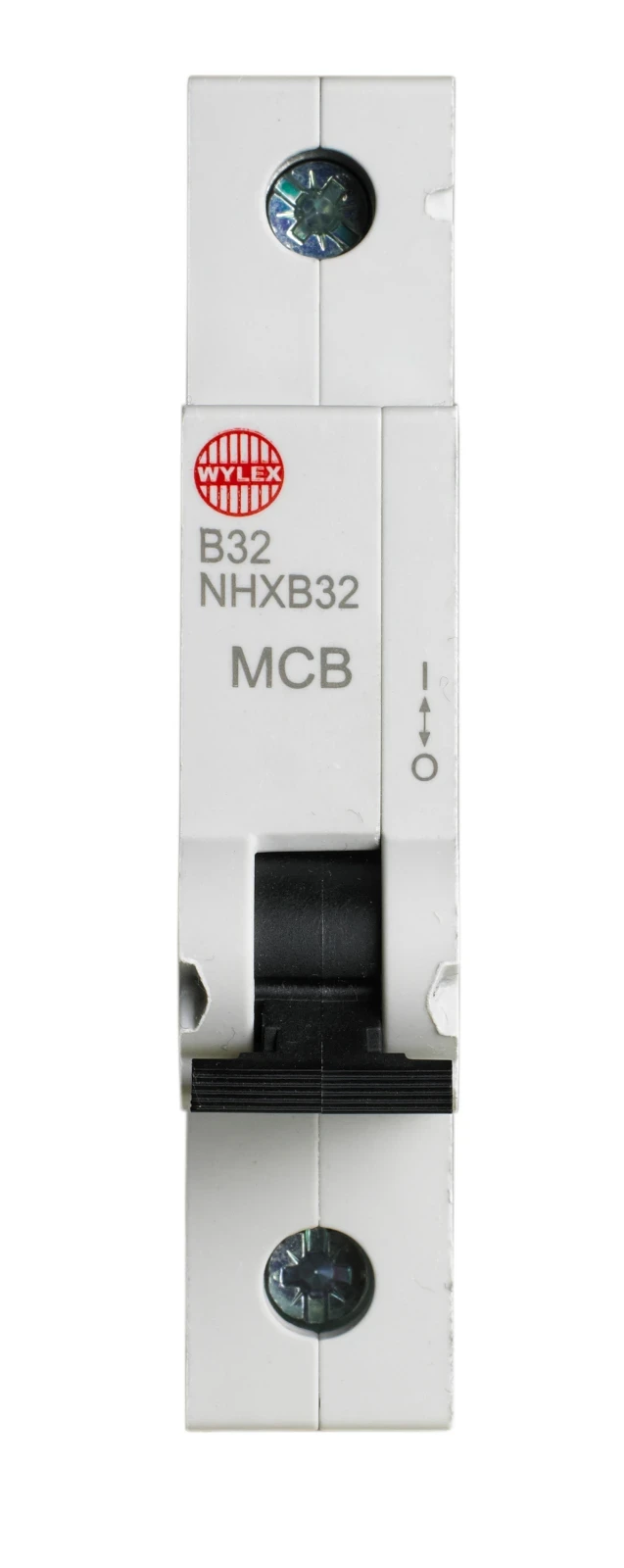

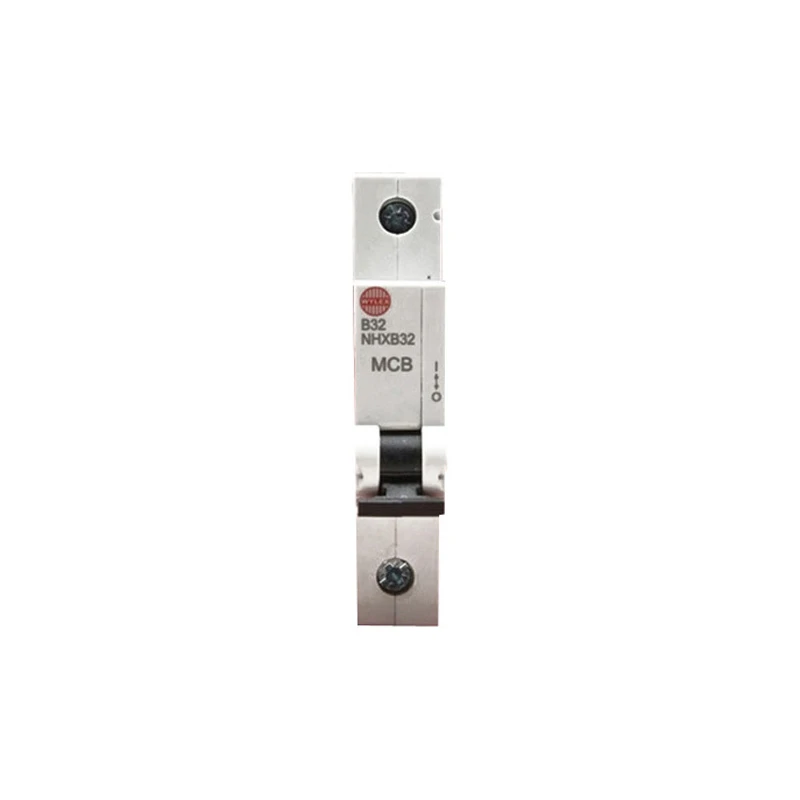

Nh System NHXB32 MCB SP Type B 1 Module 32A 6kA
£4.22 Incl. VAT
· · DIN rail mounted · · Ambient temperature -25 to 45°C · · 20000h service life
56 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Recess depth 73 mm Tripping characteristic (type/curve) B Rated current 32 A Rated insulation voltage Ui 400 V Rated voltage 230 V Number of poles (total) 1 Number of protected poles 1 Frequency 50 – 50 Hz Width in number of modular spacings 1 Current limiting class 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
