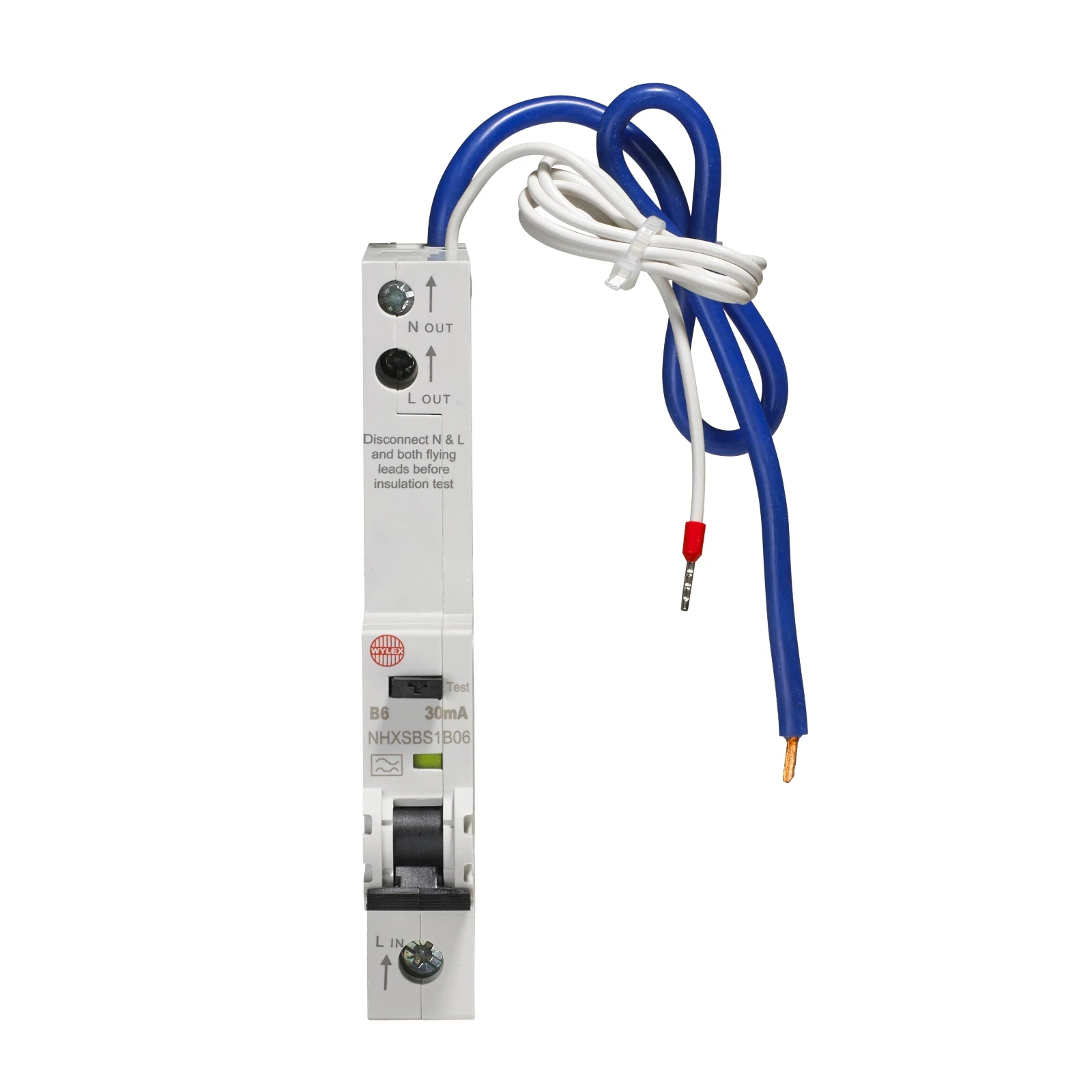

Nh System NHXSBS1B06 RCBO SP Class A Type B 1 Module 6A 30mA
Nh System NHXSBS1B06 RCBO SP Class A Type B 1 Module 6A 30mA
Nh System NHXSBS1B06 RCBO SP Class A Type B 1 Module 6A 30mA - Image 2
Nh System NHXSBS1B06 RCBO SP Class A Type B 1 Module 6A 30mA - Image 3

Nh System NHXSBS1B06 RCBO SP Class A Type B 1 Module 6A 30mA

£39.25 Incl. VAT

· · Easy DIN rail fixing and extraction · · Push to test button · · Single pole switching · · Loss of Neutral Protection · · Real contact position indicator · · Safety terminals · · 30mA Trip sensitivity for protection of personnel and property · · Ambient Temperature -5 to 55°C · · AC leakage current type and B release characteristic

76 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXSBS1B06 Categories: , , Brand: Part Number: 2500351591

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Recess depth 74 mm Tripping characteristic (type/curve) B Number of protected poles 1 Number of poles (total) 2 Current limiting class 3 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Over voltage category 3 Rated current 6 A Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No
