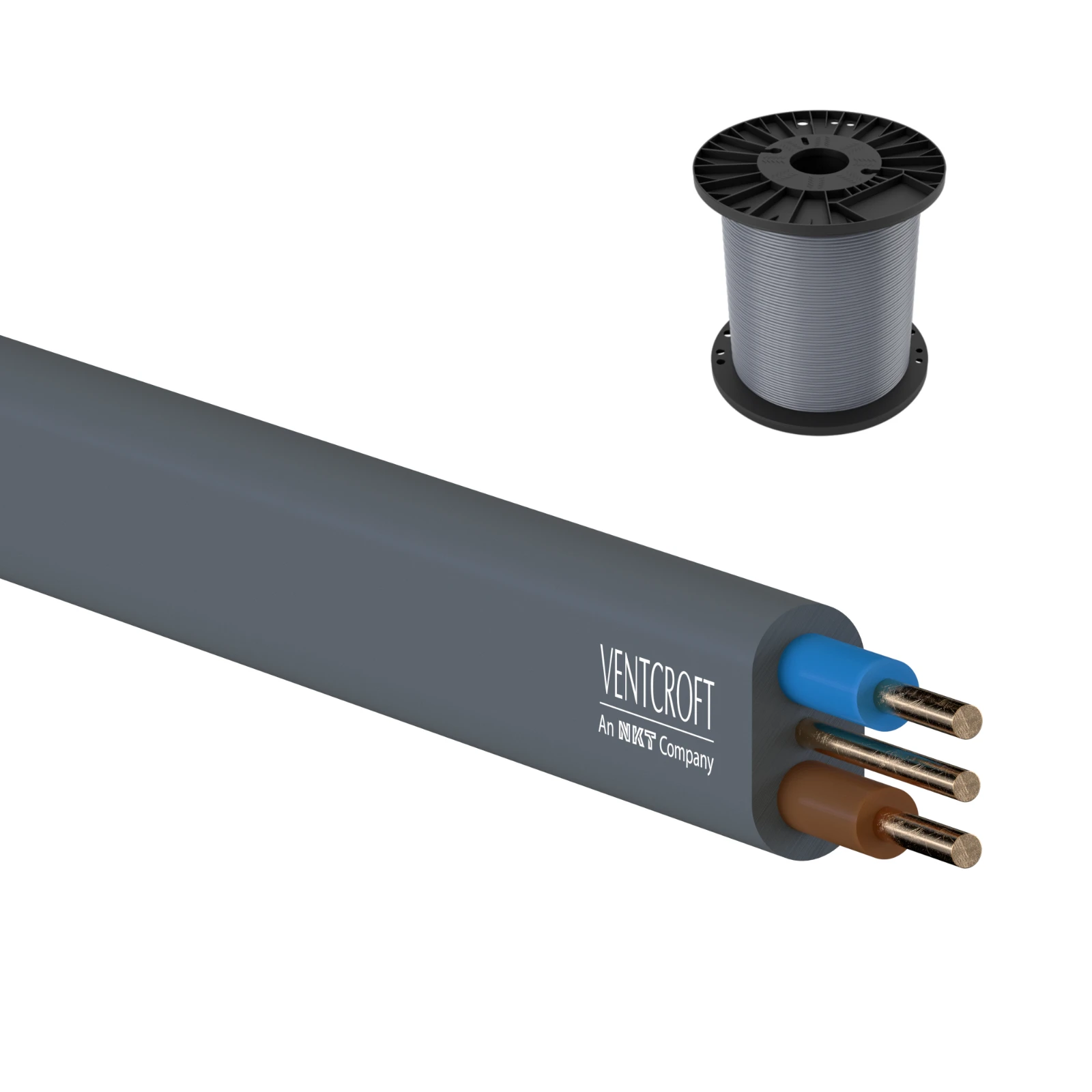

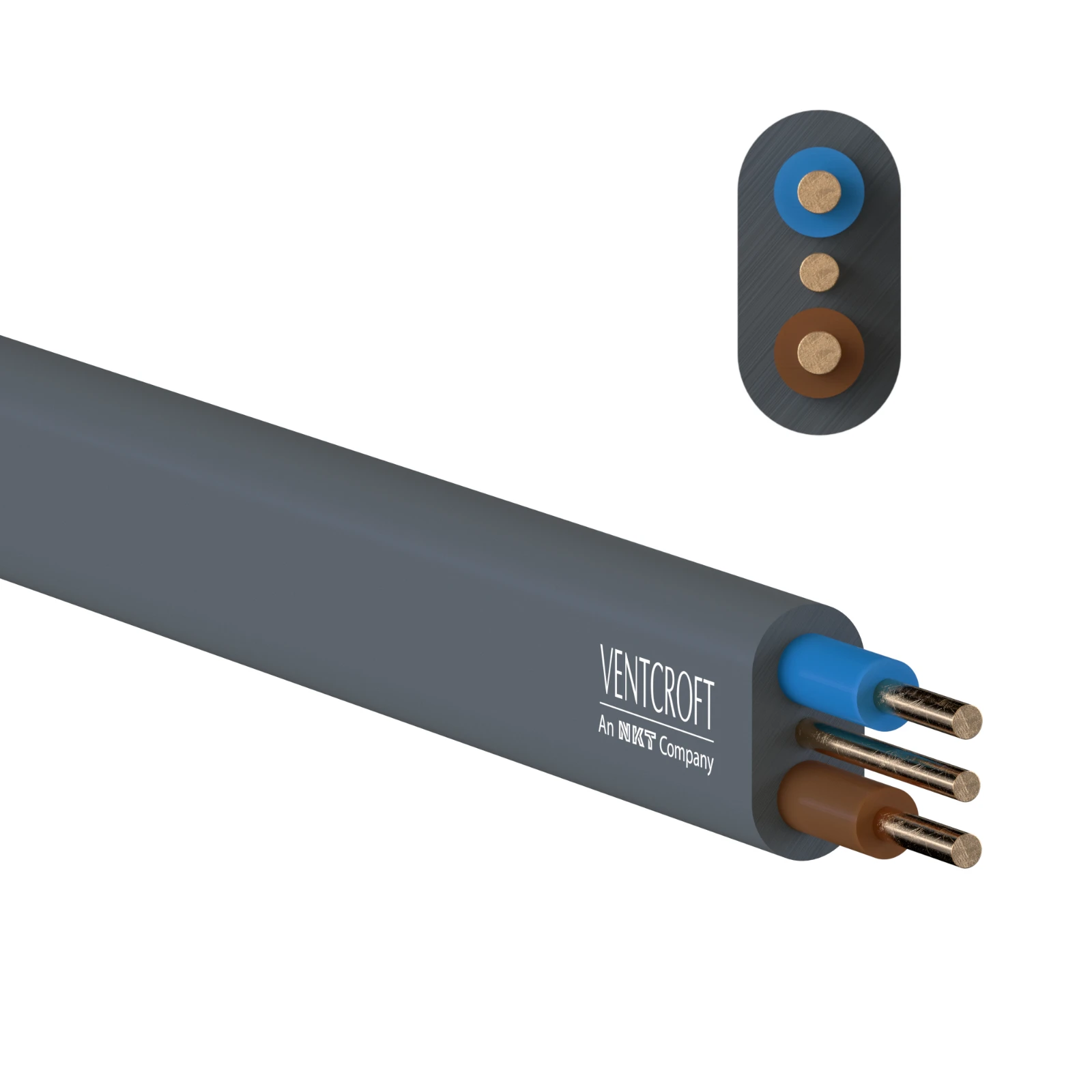

NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y
NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y
NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y - Image 2
NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y - Image 3
NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y - Image 4

NKT instal 1.5mm Grey Twin and Earth Cable 100M PVC Basec 6242Y

£78.66 Incl. VAT

· · Flat, Grey PVC sheath, PVC isulated cores with CPC fixed building cables · · BS 6004:2012 +A1 2020, BS EN 60228, BS EN 50575, CPR Class Eca · · BASEC certified,100% compliant and premium quality. · · All sizes supplied on user friendly, damage resistant sturdy Plastic or Plywood reels · · All Reels are weather resistant · · Plastic Reels are 100% made with recycled material and reusable by Ventcroft when returned · · Annealed Solid copper conductors · · Ideal for Power & Lighting circuits · · Ideal for fixed wiring in residential and commercial buildings · · Manufactured in EU, and wound in UK

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VWY-215E10GRY Categories: , , Brand: Part Number: 2501610228

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Sheath colour Grey Reaction-to-fire according to EN 13501-6: Acidity None Armouring/reinforcement None Conductor category Class 1 = solid Core colour Several Protective barrier None Reaction-to-fire according to EN 13501-6: Class Eca Shape of conductor Round Conductor material Copper Sheath material Polyvinyl chloride (PVC) Min. permitted bending radius, stationary application/permanent installation 4 mm Max. conductor temperature 70 °C Conductor resistance at 20 °C 12.1 Ohm/km Nominal voltage U0 300 V Cable geometry Flat Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Core identification Colour Certified as airport lighting cable No Twisted cores No Permitted cable outer temperature after assembling without vibration -40 °C Permitted cable outer temperature during assembling/handling -5 °C Weight 84 kg/km Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 500 V Number of cores 2 Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Core identification according to HD 308 S2 Yes Suitable as installation cable Yes Certified for shipboard application No With protective conductor Yes Drain wire No · Technical Data Sheet – Click to Download
