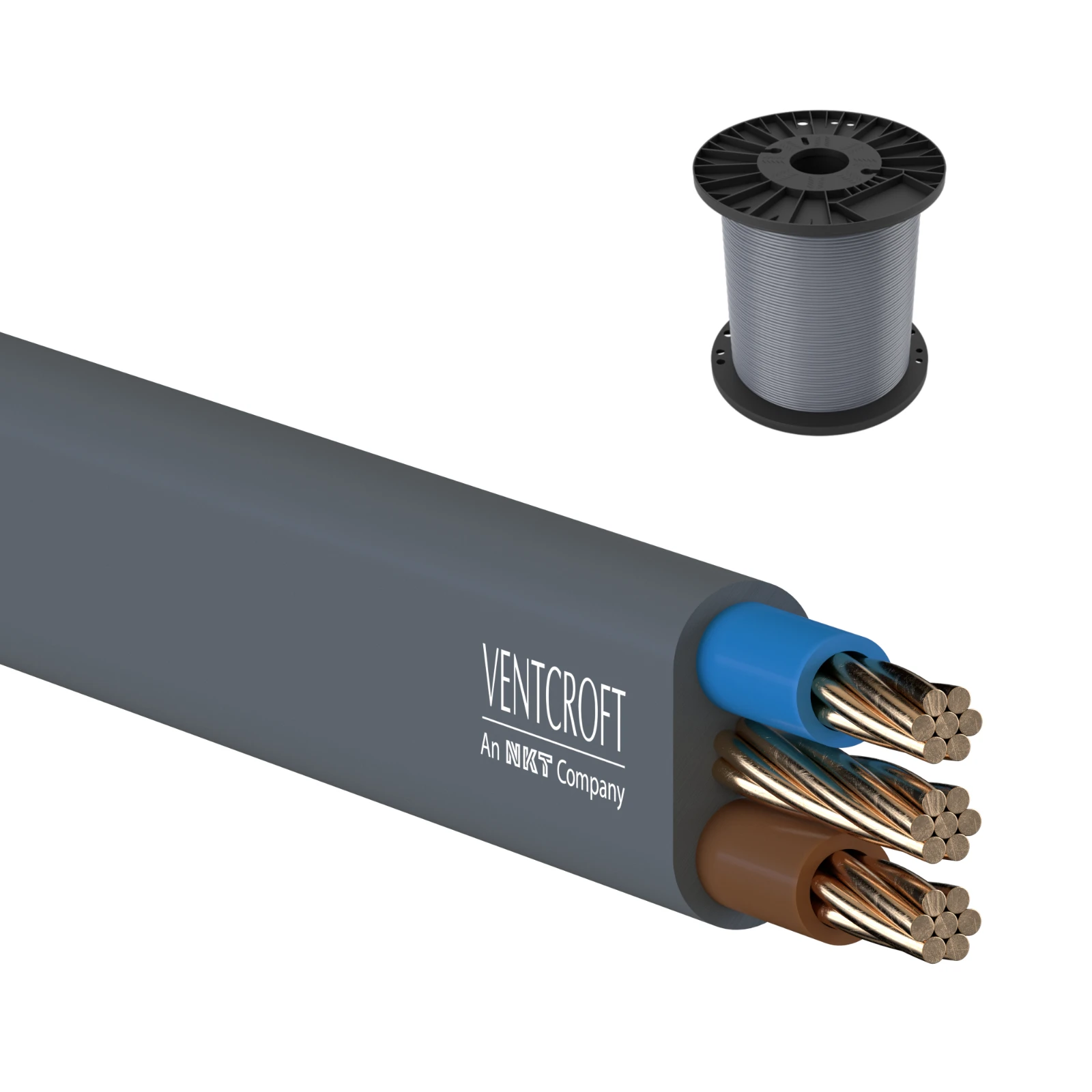

Ventcroft 6242Y NKT instal 10.0mm Grey Cable 2-Core Twin & Earth 100m PVC Basec
£531.96 Incl. VAT
· · Flat, Grey PVC sheath, PVC isulated cores with CPC fixed building cables · · BS 6004:2012 +A1 2020, BS EN 60228, BS EN 50575, CPR Class Eca · · BASEC certified,100% compliant and premium quality. · · All sizes supplied on user friendly, damage resistant sturdy Plastic or Plywood reels · · All Reels are weather resistant · · Plastic Reels are 100% made with recycled material and reusable by Ventcroft when returned · · Annealed Solid copper conductors · · Ideal for Power & Lighting circuits · · Ideal for fixed wiring in residential and commercial buildings · · Manufactured in EU, and wound in UK
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Sheath colour Grey Armouring/reinforcement None Protective barrier None Core colour Several Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Class Eca Shape of conductor Round Sheath material Polyvinyl chloride (PVC) Conductor material Copper Conductor category Class 1 = solid Cable geometry Flat Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Nominal voltage U 500 V Core identification Colour Nominal cross sectional area of conductor 10 mm² Number of cores 2 Min. permitted bending radius, stationary application/permanent installation 4 mm Weight 365 kg/km Max. conductor temperature 70 °C Nominal voltage U0 300 V Conductor resistance at 20 °C 1.83 Ohm/km Permitted cable outer temperature during assembling/handling -5 °C Suitable as installation cable Yes Permitted cable outer temperature after assembling without vibration -40 °C Certified as airport lighting cable No Certified for shipboard application No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Core identification according to HD 308 S2 Yes Drain wire No Screen No With protective conductor Yes Twisted cores No · Technical Data Sheet – Click to Download
